2.7. VP5200 Installation

This section provides information on how to install the VP5200 in an enclosure.
Note that the unit may be installed edgewise (vertically), or in a horizontal manner. It can also be
bolted to or custom-mounted flush with a surface.

2.8. Parts List

Verify that you have the following hardware for the installation of the VP5200:
VP5200 P/N IDV52-783-33-1NG0C-00 or -1NG0D-00 (demo).
•
USB cable P/N 80035212-002, or RS-232 cable CAB1041-1.
•
Power supply P/N AC0005R-3B.
•

2.9. Installation of Reader

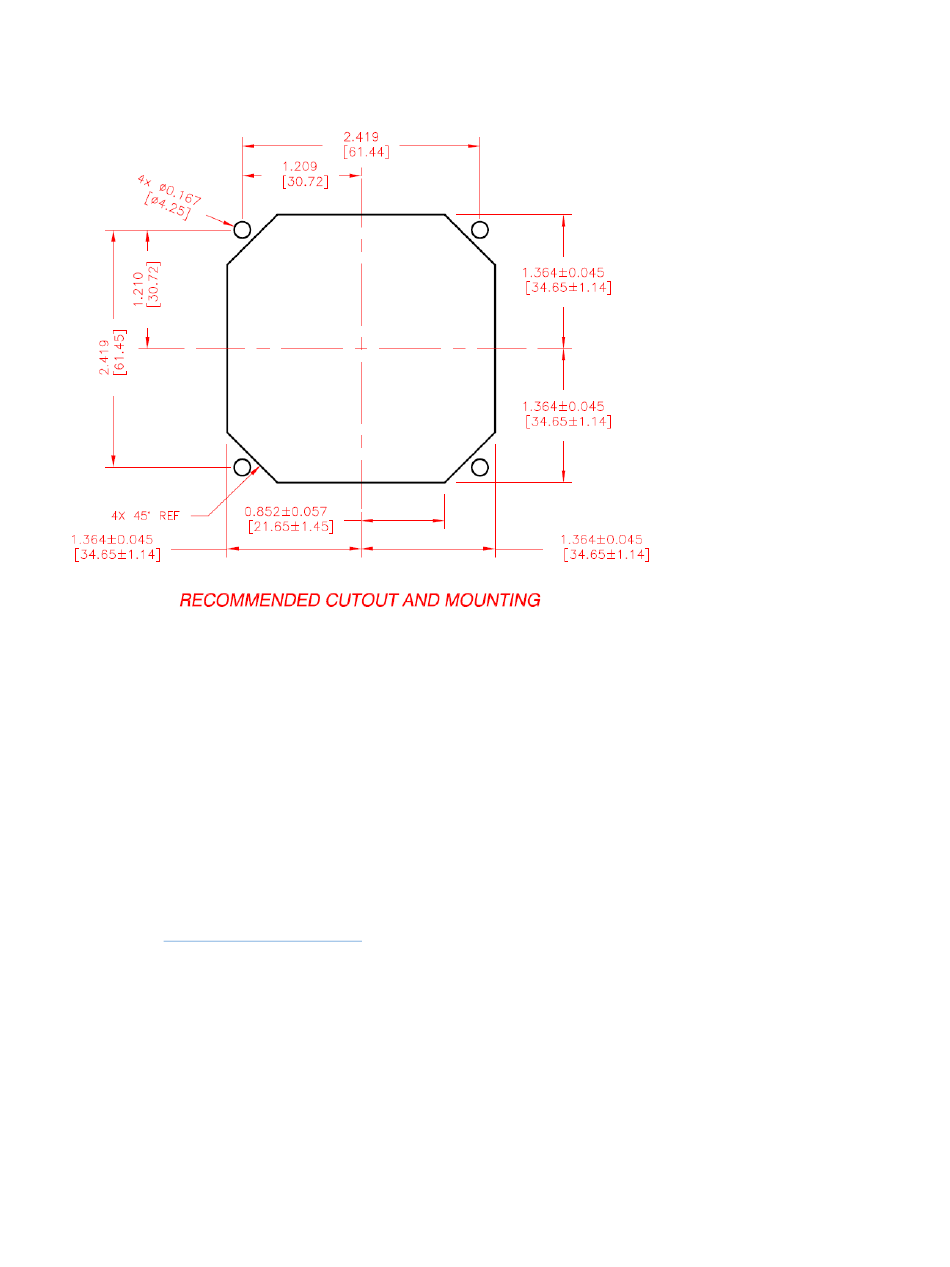

Refer to the VP5200 3-view
proceed to:
Locate, mark, and drill holes for the four main mounting points of the unit, spaced 61.5 mm
•
apart lengthwise (on center), and spaced 61.5 mm apart (on center) along the short axis. Use
a 4.25mm drill.
Secure the unit to the enclosure with bolts or screws of appropriate depth.
•
drawing. Verify that power cords can physically reach the unit. Then
