3. Firmware Upgrade

The VP5200's firmware can be upgraded in the field using either serial or USB interfaces.
3.1. Preparation
To update the firmware, you will need:
PC with available serial or USB port
•
VP5200 with a serial data cable or a USB cable attached
•
Firmware files (including Bootloader files) for the desired firmware
•
Software (for the PC) that will upload the firmware files to the VP5200
•

3.2. Uploading Firmware for RS-232 or USB

NOTE: For serial connection, use Baud Rate of 115200 (default) with settings 8-N-1.
1. Move firmware files (*.FM) and bootloader .EXE files into the same folder.
2. Check and confirm the device is correctly connected to the power source and RS-232/USB
connection.
3. If RS-232 is the interface choice, close all software using RS-232 communication.
4. Launch IDtechBootload.EXE from the firmware package with the VP5200 connected.

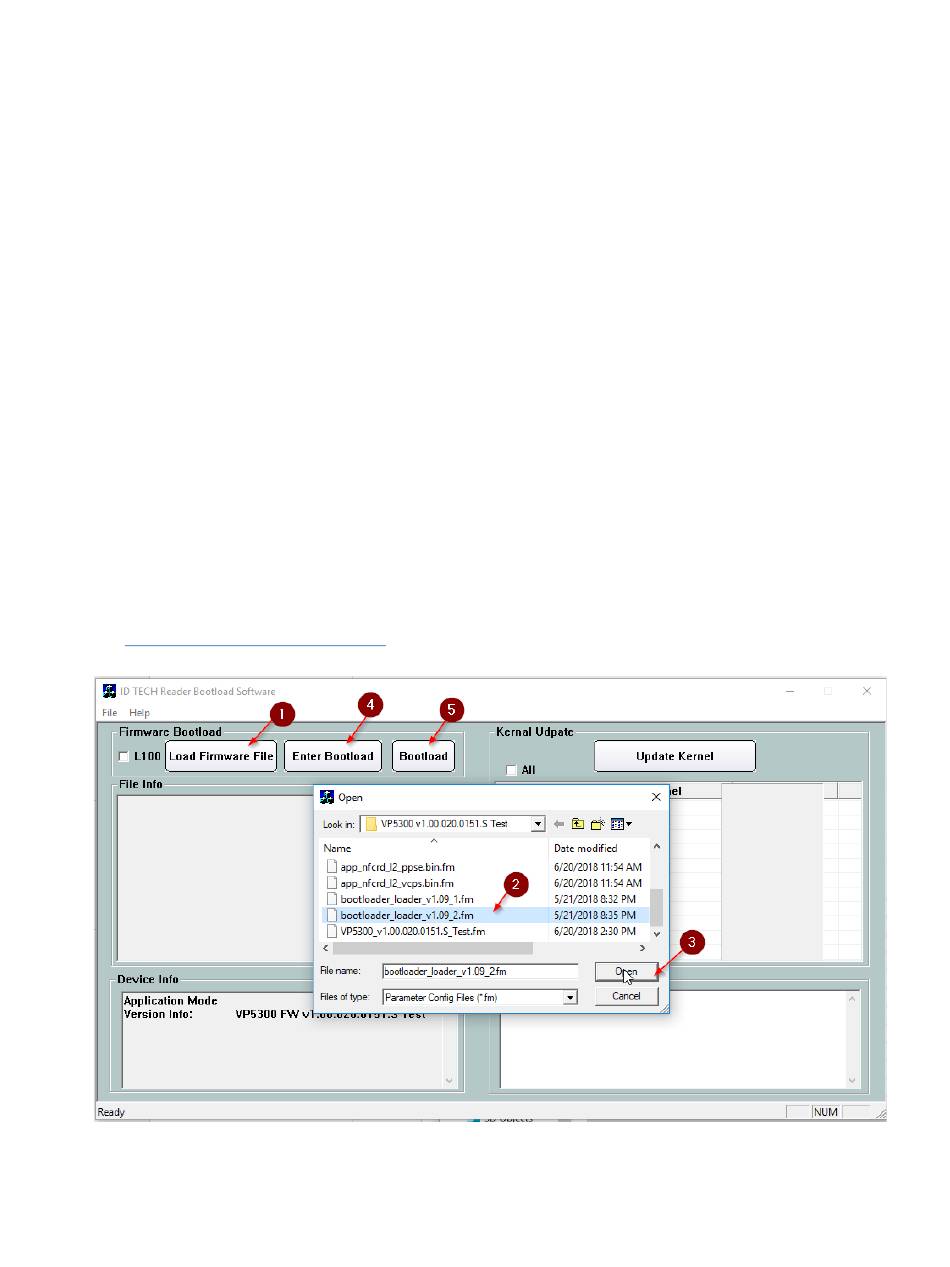

5. Follow the numbered steps in the screenshot below to load
the bootloader_loader_Vx.xx_2.fm
may differ).
Wait until the reader sounds one long beep, the LED turns to solid green, and the "Bootloader
succeeded!" message appears, as in the screenshot below:
file (the example below is illustrative; your version numbers
