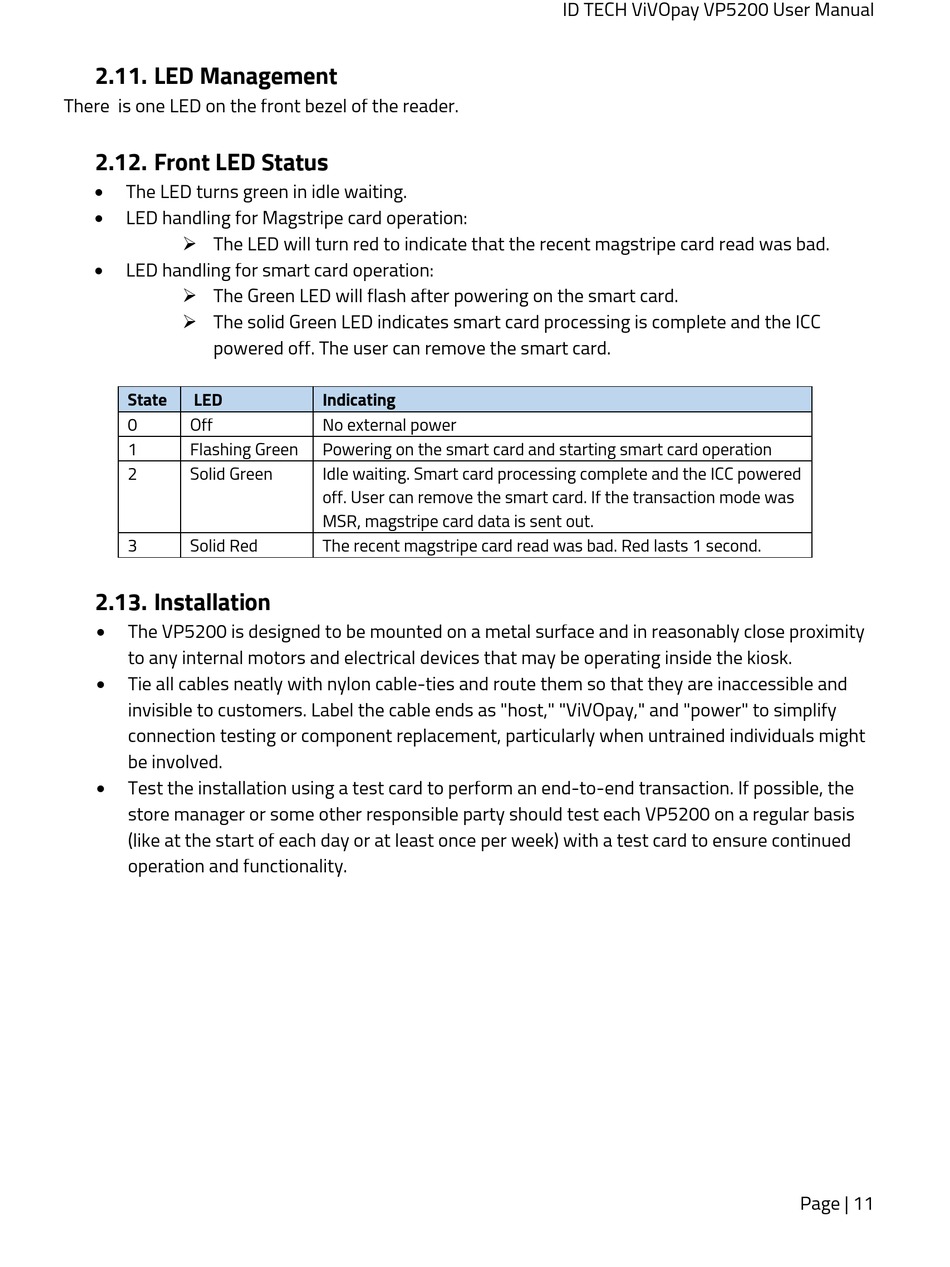

2.11. LED Management

There is one LED on the front bezel of the reader.

2.12. Front LED Status

The LED turns green in idle waiting.
•
LED handling for Magstripe card operation:
•
 The LED will turn red to indicate that the recent magstripe card read was bad.
LED handling for smart card operation:
•
 The Green LED will flash after powering on the smart card.
 The solid Green LED indicates smart card processing is complete and the ICC
powered off. The user can remove the smart card.
State LED
0 Off
1 Flashing Green
2 Solid Green
3 Solid Red

2.13. Installation

The VP5200 is designed to be mounted on a metal surface and in reasonably close proximity
•
to any internal motors and electrical devices that may be operating inside the kiosk.
Tie all cables neatly with nylon cable-ties and route them so that they are inaccessible and
•
invisible to customers. Label the cable ends as "host," "ViVOpay," and "power" to simplify
connection testing or component replacement, particularly when untrained individuals might
be involved.
Test the installation using a test card to perform an end-to-end transaction. If possible, the
•
store manager or some other responsible party should test each VP5200 on a regular basis
(like at the start of each day or at least once per week) with a test card to ensure continued
operation and functionality.
Indicating
No external power
Powering on the smart card and starting smart card operation
Idle waiting. Smart card processing complete and the ICC powered
off. User can remove the smart card. If the transaction mode was
MSR, magstripe card data is sent out.
The recent magstripe card read was bad. Red lasts 1 second.
ID TECH ViVOpay VP5200 User Manual
Page | 11
