Page 1

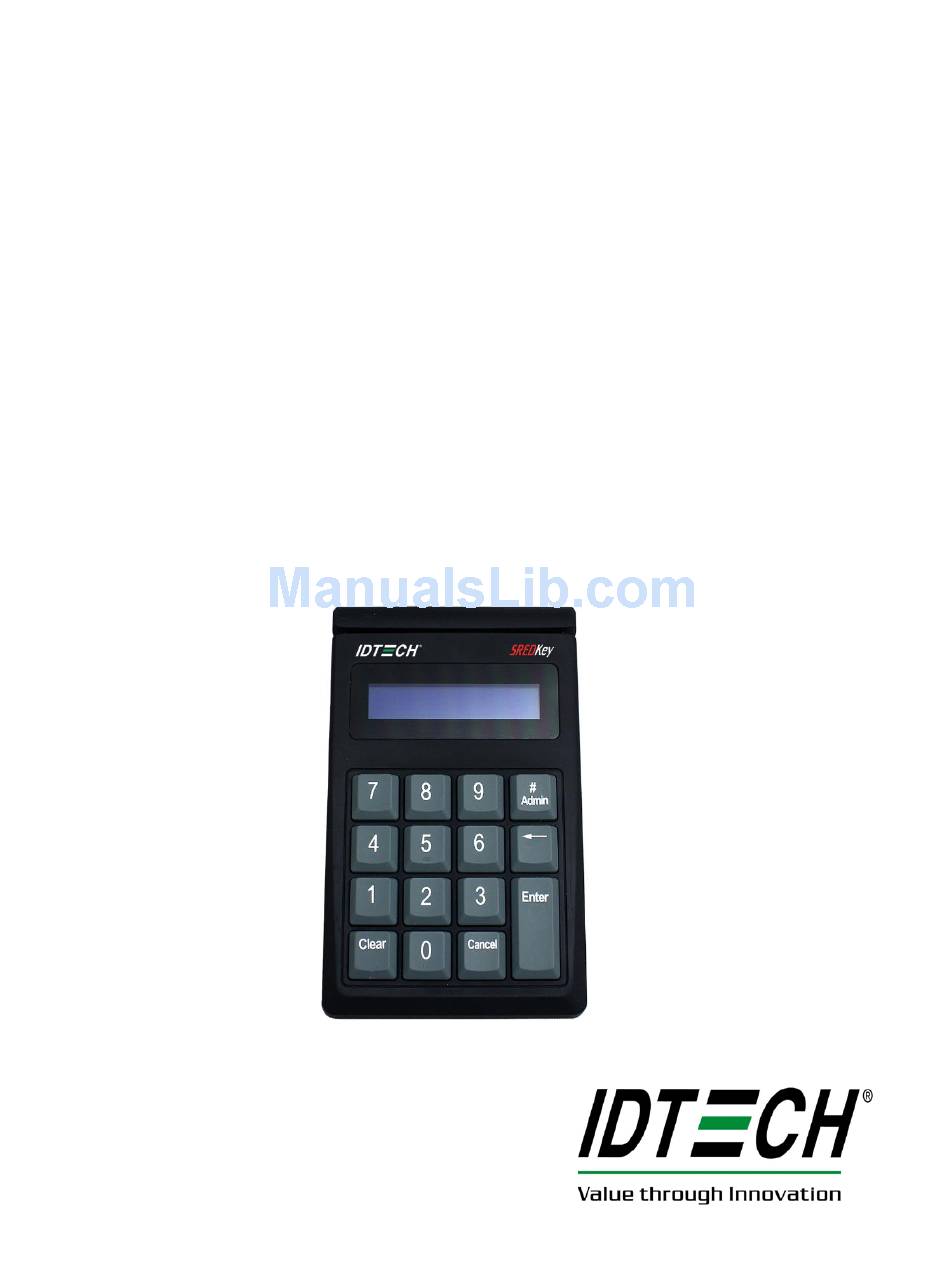

SREDKey PCI 3.0 Encrypted Key Pad with MagStripe Card Reader USB Interface QuickStart Manual...
Page 2
AGENCY APPROVED Specifications for subpart B of part 15 of FCC rule for a Class A computing device. LIMITED WARRANTY ID TECH warrants to the original purchaser for a period of 12 months from the date of invoice that this product is in good working order and free from defects in material and workmanship under normal use and service.
Page 4

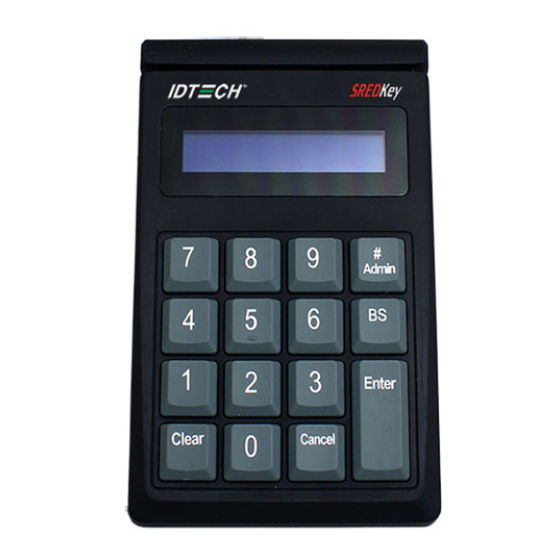

The keypad allows the retailers to not only encrypt credit card data at the magnetic readers but it also encrypts manually entered credit card number, expiration date and etc. The SREDKey has 15 keys (10 Numeric, 5 functional) with a 2x20 backlit LCD.
Page 5
Magstripe Reader Operation Plug in the SREDKey USB cable to the terminal, and the LCD will show “Ready” for a few seconds for the initialization. After the prompt changes to “Swipe Card or Key-in Card Number”, the user can swipe a card or key-in the card number on the keypad.
Page 6
Manually-Keyed Configuration Options When the “Admin” key is pressed, the screen will display "Select manual config 1-6" to prompt the user to select one of five manual entry modes. Configuration #1: Card Number, Expiration Date Configuration #2: Card Number, Expiration Date, Zip Code Configuration #3: Card Number, Expiration Date, Street Number of the Address, Zip Code Configuration #4: Card Number, Expiration Date, Security Code, Zip Code Configuration #5: Card Number, Expiration Date, Security Code, Address, Zip Code...
Page 7
ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 80137504-001-B www.idtechproducts.com R07/14...
