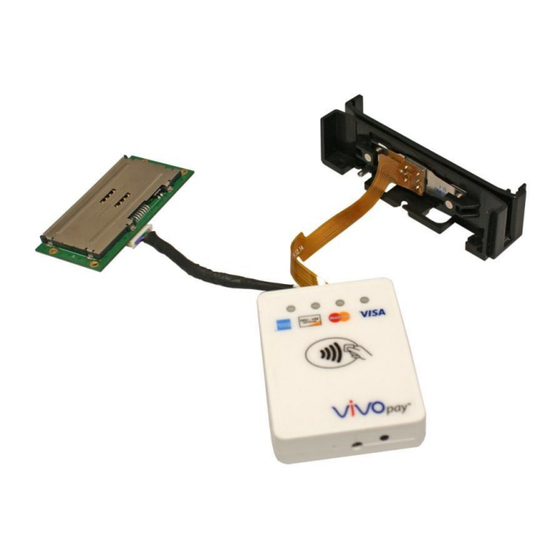

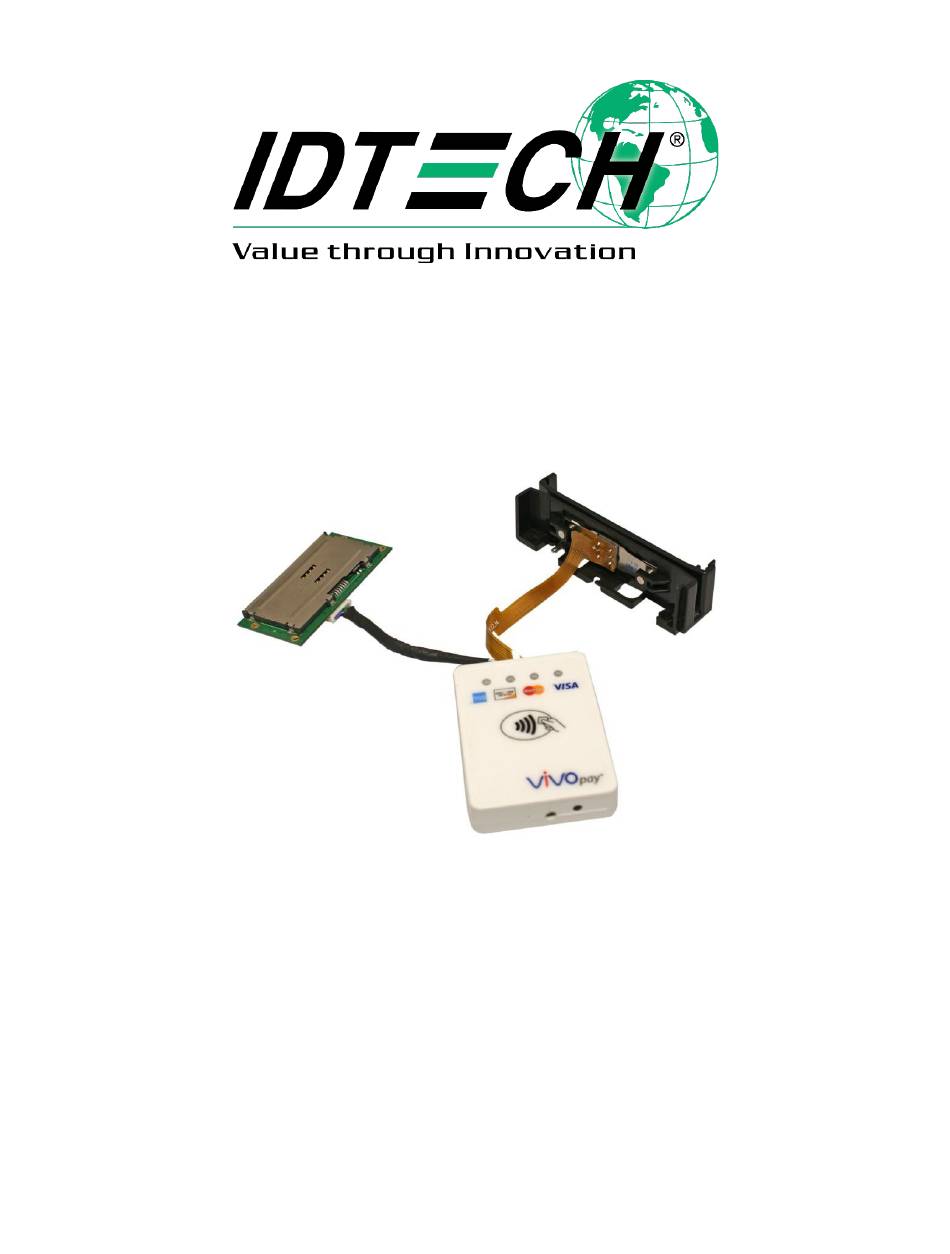

- Page 1 VP3300 OEM User Manual 80149509-002 Rev. G 3 November 2020 ID TECH 10721 Walker Street, Cypress, CA 90630-4720 Tel: (714) 761-6368 Fax (714) 761-8880 www.idtechproducts.com...
- Page 2 ID TECH VP3300 OEM User Manual Copyright© 2020 ID TECH. All rights reserved. ID TECH 10721 Walker Street Cypress, CA 90630 USA This document, as well as the software and hardware described in it, is furnished under license and may be used or copied online in accordance with the terms of such license. The content of this document is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by ID TECH.
- Page 3 Consult the dealer or an experienced radio/TV technician for help. • Changes or modifications to the VP3300 OEM not expressly approved by ID TECH could void the user's authority to operate the device. Cautions and Warnings Warning: Avoid close proximity to radio transmitters, which may reduce the capabilities of the reader.
-
Page 4: Table Of Contents
6. LED STATUS AND AUDIBLE BEEPER INDICATORS ......................13 7. WHAT KIND OF USB CABLE TO USE WITH A VP3300 ....................13 8. FOR SOFTWARE DEVELOPERS: SOFTWARE DEVELOPMENT SUPPORT ..............14 8.1. Best Practices for VP3300 OEM Develope rs ......................14 9. USDK DEMO APP..................................15 10. FOR MORE INFORMATION..............................16... -
Page 5: Introduction
(including Apple Pay, Android Pay, and Samsung Pay). The VP3300 OEM incorporates the proven ID TECH Common Contact EMV L2 kernel that is also found in ID TECH's popular UniPay III card reader. Developers can integrate VP3300 OEM into terminal systems with minimal effort using ID TECH's Universal SDK, available for Windows, Android, or iOS. -
Page 6: Icc Contact Card Features
ID TECH VP3300 OEM User Manual 1.3. ICC Contact Card Features EMVCo Contact Level 1 & 2 compliant • 1.4. Contactless (NFC) Features ISO 14443 Type A&B • ISO 18092 (P2P) • MasterCard® MCL (Formerly PayPass) • Visa payWave/VCPS •... -
Page 7: Physical Specifications
250 MSR + 125 EMV + 125 EMV CTLS transactions (Total 500 transactions) per charge. 2.2. Available Interfaces Although ID TECH recommends using a USB connection to communicate with the VP3300 OEM, a VP3300 OEM Bluetooth version is also available. -
Page 8: Design Guidelines
ID TECH VP3300 OEM User Manual 3. Design Guidelines When integrating the VP3300 OEM into a project, make sure to follow the guidelines below. MSR Head: VP3300 OEM device supports multiple MSR head types including: • o Wing Spring o Leaf Spring... -
Page 9: Installation And Use Guide For Magnetic Heads
ID TECH VP3300 OEM User Manual 4. Installation and Use Guide for Magnetic Heads This section defines the design specifications ID TECH customers require to install magnetic readers and heads to the correct dimensions and other specific requirements that ensure maximum life and reading reliability. -
Page 10: Reference Surface/Wear-Plate
ID TECH VP3300 OEM User Manual Figure 2: Standard Magnetic head assembly showing tolerances of Azimuth 4.2. Reference Surface/Wear-Plate The reference surface is an important element for the proper design of all credit card readers because all dimensions for installing magnetic heads are measured from that surface. There are important... -
Page 11: Card Reader Rails/Slot And Magnetic Head Protrusion
ID TECH VP3300 OEM User Manual plastic, should at a minimum be of 30% glass-filled plastic because the card’s edge will inevitably scrape that surface upon entering and exiting the card swipe. We recommend having stainless steel surfaces on both the entrance and exit area surfaces or have them substantially below the rail’s reference surface. - Page 12 ID TECH VP3300 OEM User Manual 2. If the rails are designed without using an ID TECH rail, the minimum slot width should be 0.040 inches wide, at a minimum of 0.5 inches on both sides of the magnetic head’s gap.
-
Page 13: Before Using The Vp3300 Oem
Before you connect VP3300 to a host, install and activate the host software application according to the instructions provided by your payment application service or software provider, then connect the VP3300 OEM (or device containing the VP3300 OEM) to the host through a micro-USB cable (not included). -
Page 14: For Software Developers: Software Development Support
ID TECH VP3300 OEM User Manual 8. For Software Developers: Software Development Support VP3300 devices, including the VP3300 OEM, are designed to be compatible with a wide range of third-party payment applications. ID TECH offers a Universal SDK (available for iOS, Android, or Windows) to enable rapid application development with any model of VP3300 as the target device. -
Page 15: Usdk Demo App
The Universal SDK comes with a rich, fully featured demo app, including complete source code for the demo app. To use the demo app, plug a VP3300 OEM into a Windows PC using a USB-to-micro-USB cable (not included), then open UniversalSDKDemo.exe file to launch the USDK Demo app. -
Page 16: For More Information
ID TECH VP3300 OEM User Manual 10. For More Information To learn more about the VP3300 OEM and other ID TECH products, visit the ID TECH • Knowledge Base. Visit us online at http://idtechproducts.com. • Find more Tech Support resources at the... - Page 17 ID TECH VP3300 OEM User Manual Revision History Date Changes 11/08/2016 Initial release 12/12/2016 Removed all mentions of a battery Some layout edits 08/16/2017 Update product naming 03/30/2018 Update electrical characteristics 05/01/2020 Style and format facelift Page | 17...
