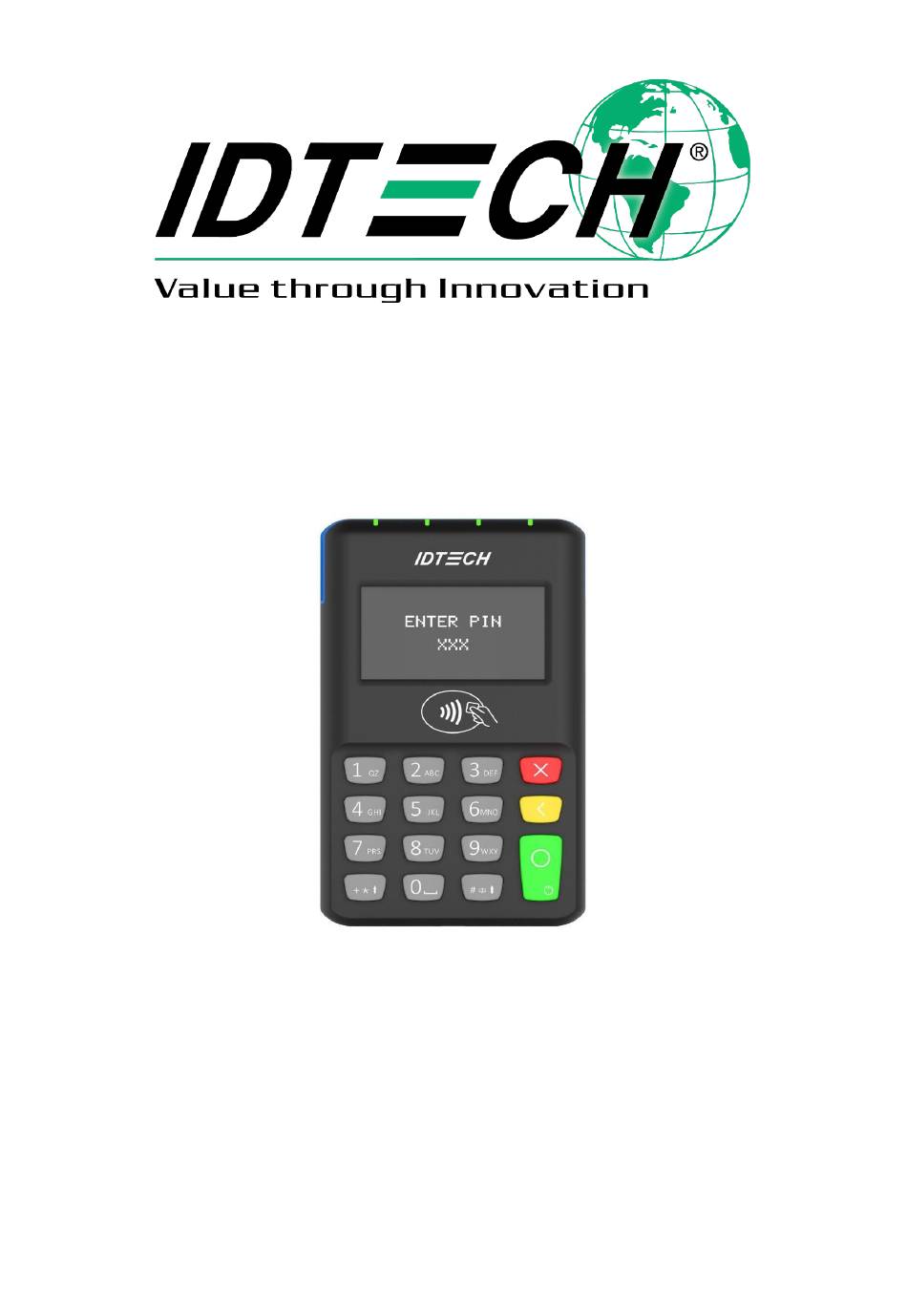

- Page 1 VP3600 User Manual IDMR-PBT93133TEB Rev. H 1 September 2020 ID TECH 10721 Walker Street, Cypress, CA 90630-4720 Tel: (714) 761-6368 Fax (714) 761-8880 www.idtechproducts.com...
- Page 2 VP 3600 User Manual Copyright © 2020, ID TECH. All rights reserved. This document, as well as the software and hardware described in it, is furnished under license and may be used or copied online in accordance with the terms of such license. The content of this document is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by ID TECH.
-
Page 3: Table Of Contents
3.5. Pairing a VP3600 and a Bluetooth Device ........................ 7 3.5.1. Before You Begin ........................................7 3.5.2. Pairing a VP3600 and an Android Device Using BLE (Bluetooth Low Energy) ............8 3.5.3. Testing the Connection on Android ................................8 3.5.4. Pairing a VP3600 and an iOS device ..............................12 3.5.5. -
Page 4: Introduction

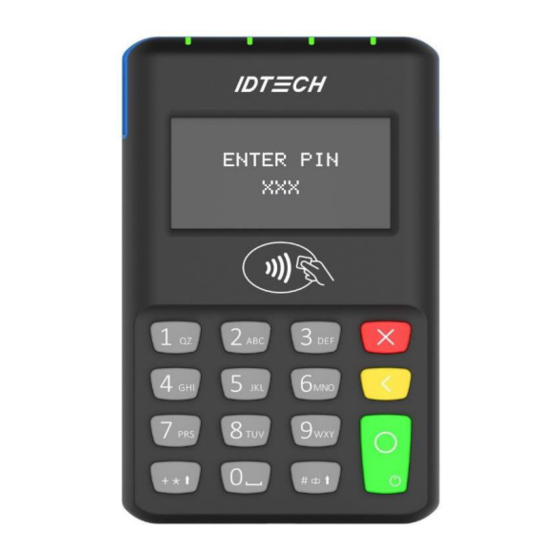

VP 3600 User Manual 1. Introduction The VP3600 is a compact mobile PIN Pad and card reader designed to allow magnetic stripe reads (MSR), ICC (chip card) reads, and contactless transactions (via NFC technology). The VP3600’s small form factor and Bluetooth interface make it ideal for mobile applications requiring magnetic stripe or smart card reading. -
Page 5: Magnetic Stripe Features
Samsung Pay NFC • Android Pay • Google Wallet / Softcard SmartTap • Sony FeliCa • 2.4. SAM Slot The VP3600 has a SAM slot on the back of the device, highlighted in the image to the right. Page | 5... -
Page 6: Before You Start Using The Vp3600
VP3600 to the host device, install and activate the software application according to the instructions provided by your payment application service and software provider, then connect the VP3600 to the mobile device via Bluetooth or a micro-USB cable (included) and enjoy the convenience of mobile payment processing offered by the VP3600. -
Page 7: Battery Status When Charging The Battery
3.5.1. Before You Begin In order to set up a VP3600 and an Android or iOS device, you will need to download and install the NEO 2 Demo app for your device. Download the correct SDK .ZIP file from the... -
Page 8: Pairing A Vp3600 And An Android Device Using Ble (Bluetooth Low Energy)
5. Open your Android device’s settings. 6. Turn Bluetooth on. 7. Select the VP3600's Bluetooth name from the list of available devices (the default name is IDTECH_BLE). Enter the password you set in step 4, then tap OK to pair the device. - Page 9 VP 3600 User Manual 2. Enter the VP3600's Bluetooth name (the default name is IDTECH_BLE) and tap Okay: 3. When the VP3600 is paired successfully, the Disconnected text changes to Connected and the VP3600’s LED display shows the Bluetooth icon. You can now send commands and receive responses.
- Page 10 VP 3600 User Manual Page | 10...
- Page 11 VP 3600 User Manual 4. Press Swipe/Tap in the lower-left corner. 5. When prompted, swipe or tap a card. Card data appears in the app. Page | 11...
-
Page 12: Pairing A Vp3600 And An Ios Device
VP 3600 User Manual 3.5.4. Pairing a VP3600 and an iOS device Note: iOS devices do not require pairing with a VP3600; the iOS device’s Bluetooth list does not display a VP3600’s Bluetooth name. The steps below describe connecting the two devices. -
Page 13: Testing The Connection On Ios
VP 3600 User Manual 3.5.5. Testing the Connection on iOS Tap Enable Transaction. Tap Contactless in the transaction interface selection dialog. Page | 13... - Page 14 When connected successfully, the NEO 2 Demo displays Enable CTLS: OK and the VP3600’s LCD displays a CTLS transaction logo. Tap a contactless card to the VP3600; the NEO 2 Demo displays the card data for the transaction. Page | 14...
-
Page 15: Operation And Storage Environment
• Non-condensing Storage Humidity 5% to 95% • Non-condensing Changes or modifications to the VP3600 not expressly approved by ID TECH could void the • user's authority to operate the VP3600. 5. Other Agency Approvals and Compliances CE (EN55022/EN55024, Class- B) •... -
Page 16: For Software Developers: Software Development Support
VP 3600 User Manual 7. For Software Developers: Software Development Support The VP3600 is designed to be compatible with a wide range of third-party payment applications. ID TECH offers a Universal SDK (available for iOS, Android, or Windows) to enable rapid application development using VP3600 as the target device. - Page 17 VP 3600 User Manual 1. The Demo App displays VP3600's available commands in a command tree, as shown above. 2. Navigate to the desired command on a command to populate the center panel of the window with optional settings relevant to the command, such as the Amount and Start EMV Additional Tags.
-
Page 18: Fcc Regulatory Compliance
VP 3600 User Manual 8. FCC Regulatory Compliance FCC warning statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
