Thank you very much for purchasing the Fuji AC Servo System ALPHA7 series. This instruction manual is the original instructions,
and provides only minimum requisite information for wiring and operation of the product. Please read this instruction manual and
the next related manuals carefully and be familiar with safety precautions before operation. A notice, the in-depth function, the
specification, wiring, setting and maintenance are included. If you find any crack, scratch or other damage on the product, please
contact the sales office you purchased.
[Related documents]
Fuji Servo System ALPHA7 Series User's Manual
Fuji Servo System ALPHA7 Series Option Manual
Safety Function Terminology
(1) STO (Safe Torque Off)
(2) SS1 (Safe Stop 1)
(3) SLS (Safe-Limited Speed)
(4) SBC (Safe Brake Control)
(5) SSM (Safe Speed Monitor)
Safety Precautions
Read this instruction manual carefully beforehand to ensure correct use. Ensure a sound knowledge of the devices, and
familiarize yourself with all safety information and precautions before use. Safety precautions have been categorized into
"WARNING" and "CAUTION". Failure to heed the information contained under the CAUTION title may also result in serious
consequences. These safety precautions are of utmost importance and must be observed at all times. Always store the
manual in a readily accessible location after reading.
Warning indication
WARNING
CAUTION
■ Deliver this instruction manual to the end user of this product.
■ Read and familiarize yourself with this instruction manual prior to installation, connection (wiring), operation, or maintenance and
inspection.
■ The product may be subject to change without prior notice for improvement.
● Carry out work such as wiring and maintenance after waiting at least 5 minutes after turning OFF the power, and after confirming that the
charge LED is OFF.
Failure to observe this could result in electric shock.
● Always use insulated tools.
Failure to observe this could result in electric shock.
● Never disassemble or modify the product.
Failure to observe this could result in accident or injury.
● Never touch components inside the servo amplifier, or live terminal blocks or connectors.
Failure to observe this could result in electric shock.
● Do not damage cables, subject them to undue stress, place heavy objects on them, or pinch them.
Failure to observe this could result in electric shock.
● Never touch the rotating part of the servomotor during operation.
Failure to observe this could result in injury.
● Always use a grounding terminal (Class 3 grounding or higher) to ground the servo amplifier and servomotor.
Failure to observe this could result in electric shock.
: This function blocks servo amplifier output. It is the equivalent of IEC/EN60204-1 stop
category 1.
: This is activated based on input signals from external devices. STO startup is activated at a
set servomotor speed, or after a certain amount of time has elapsed. It is the equivalent of
IEC/EN60204-1 stop category 0.
: This function is used to monitor to ensure that the set upper limit speed is not exceeded.
: This is an output signal used to control the external break.
: This is an output signal used to monitor whether the servomotor speed is within the set
speed.
Meaning
Indicates possible danger, leading to death or serious injury if the product is handled incorrectly.
Indicates possible danger, leading to minor or slight bodily injuries and/or physical property damage if the
product is handled incorrectly.
Instruction Manual
FUJI AC SERVO AMPLIFIER

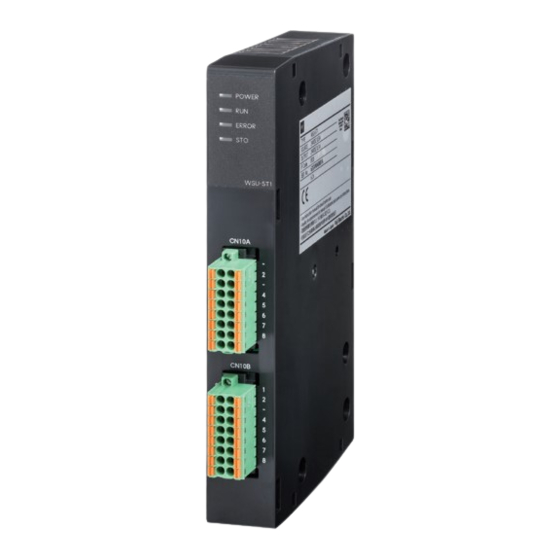

ALPHA7 Series Function Safety Module
WSU-ST1
TYPE
24C7-E-0135
24C7-E-0137
CAUTION
WARNING
INR-SI47-2075-JE
