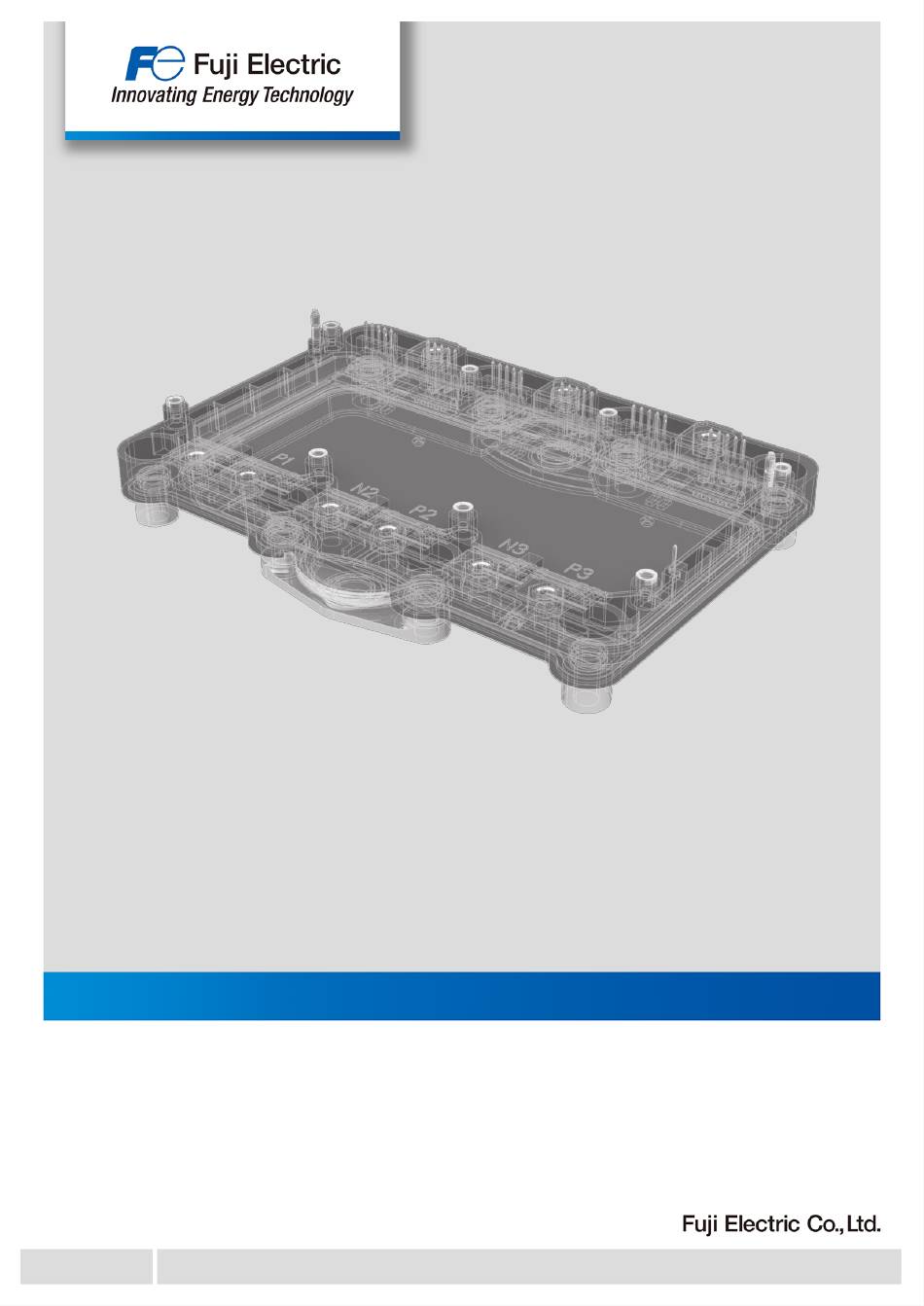

- Page 1 Mounting Instruction for Fuji Automotive IGBT Module M653 Series 6MBI800XV-075V-01 Mounting Instruction August 2019 Rev.0.1 MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
- Page 2 No right or license, either express or implied, under any patent, copyright, trade secret or other intellectual property right owned by Fuji Electric Co., Ltd. is (or shall be deemed) granted. Fuji Electric Co., Ltd. makes no representation or warranty, whether express or implied, relating to the infringement or alleged infringement of other's intellectual property rights which may arise from the use of the applications described herein.
- Page 3 If the product had been used in the environment with acid, organic matter, and corrosive gas (hydrogen sulfide, sulfurous acid gas), the product's performance and appearance can not be ensured easily. MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
-
Page 4: Table Of Contents
4. Attaching the PCB to the IGBT Module 5. Flange Adaptor 6. Mounting of IGBT Module to Equipment 7. Connecting to the Main Terminals 8. Storage and Transport 9. IGBT Module Appearance MT5F37311 © Fuji Electric Co., Ltd. All rights reserved. -
Page 5: Scope Of Application
PCB sizes and tolerances cannot be recommended. However, f or reference, the evaluation board size and hole size of Fuji Electric are shown in Figure 1. This is a ref erence value, so finally confirm it sufficiently by the customer. - Page 6 Screw size : M3 PCB thickness : 1.6(mm) Fig. 1 Assembly drawing of the driver board (Top) MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
-
Page 7: Attaching The Pcb To The Igbt Module
Do not remove 2. Moving process the conductive foam Remove the 3. Conductive foam conductive removal foam 4. PCB mounting and control terminal soldering Fig. 2 Conductive foam removal procedures MT5F37311 © Fuji Electric Co., Ltd. All rights reserved. - Page 8 Initial 1/3 of specified torque (8) → (7) → (6) → (5) → (4) → (3) → (2) → (1) Final Full specified torque Fig. 3 Screw sequence for PCB fix MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
-
Page 9: Flange Adaptor
However, for reference, the size of the flange adapter kid of the optional component for evaluation of Fuji Electric is shown in Figure 5. 5.2 Selection of O-ring When this IGBT is installed to a power control system, certain suitable O-ring is needed. - Page 10 Fig. 4 Seal area of the flange Unit : mm Unit : mm (a) Flange adaptor base (b) Nipple of flange adaptor Fig. 5 Flange adaptor kit : flange adaptor base and nipple MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
- Page 11 P12.5 12.3 12.5 16.5 13.8 ±0.24 +0.06 2.4±0.09 14.8 -0.06 15.8 ±0.25 17.8 ±0.26 19.8 ±0.27 20.8 ±0.28 21.8 Fig. 6 The image of assembled O-ring onto the flange adaptor base MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
-
Page 12: Mounting Of Igbt Module To Equipment
The fastening screws should be tightened with the specified torque. See the specification for the specified torque and screws size to be used. In addition, the use of self-tapping screws is not guaranteed. MT5F37311 © Fuji Electric Co., Ltd. All rights reserved. - Page 13 Also, when the IGBT module has the cooler with the water jacket, it is necessary to adhere strictly to specifications such as water temperature, water flow and pressure within each water jacket. For more detailed information on parallel connections, refer to the application manual for IGBT module. MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
-
Page 14: Connecting To The Main Terminals
(a) P-terminal ~ N-terminal Position Creepage distance (mm) Spatial distance (mm) ≥ 11.3 ≥ 7.3 (a) P-terminal ~ N-terminal Fig. 9 Creepage distance and spatial distance at the P/N terminal MT5F37311 © Fuji Electric Co., Ltd. All rights reserved. -
Page 15: Storage And Transport
Therefore, visible scratches before mounting, thin plated areas such as terminal edges and bending areas do not affect product performance or quality. Bending area of main terminal Visible scratches Edge of main terminal Fig. 10 Appearance of main terminal MT5F37311 © Fuji Electric Co., Ltd. All rights reserved.
