  • Page 1 SERIES USER’S MANUAL Conformance with Standards FEH249...

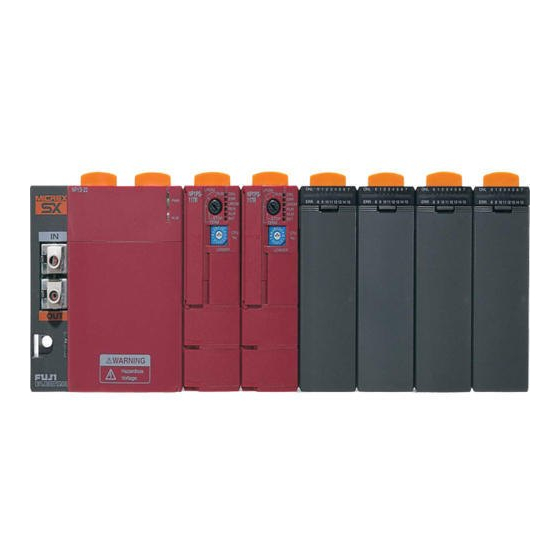

  • Page 2 Preface Thank you very much for purchasing the FUJI MICREX-SX Series SPH. This users' manual describes operational instructions and restrictions on MICREX-SX Series products that conform to various standards (CE marking, Lloyd's Register of Shipping, etc.) Please read this manual carefully to correctly use your device.
  • Page 3 Revision *Manual No. is shown on the cover. Printed on *Manual No. Revision contents May.2000 FEH249 First edition...

  • Page 4: Table Of Contents

    Contents Preface Revision Contents Section1 Standards Conformed Product 1-1 Standards conformed products list ..................1-1 Section2 Conformance with CE marking 2-1 CE marking ..........................2-1 2-2 Method for adapting to CE marking ..................2-2 2-2-1 Metal Enclosure ..........................2-2 2-2-2 How to lay the SX bus cable ......................2-3 2-2-3 Adaptation of individual module ......................

  • Page 5: Section1 Standards Conformed Product

    Section1 Standards Conformed Product 1-1 Standards conformed products list Component Type Specification CPU module NP1PS-74 High-performance CPU module Program memory:74K steps NP1PS-32 High-performance CPU module Program memory:32K steps NP1PH-08 Standard CPU module Program memory:8K steps NP1PH-16 Standard CPU module Program memory:16K steps Power supply NP1PS-22 100/200V AC...
  • Page 6 Section1 Standards Conformed Product Component Type Specification CE UL cUL LR NK Digital output NP1Y08U0902 Tr source 12 to 24V DC, 8 points module NP1Y16U09P6 Tr source 12 to 24V DC, 16 points NP1Y32U09P1 Tr source 12 to 24V DC, 32 points NP1Y64U09P1 Tr source 12 to 24V DC, 64 points NP1Y06S Triac 100 to 200V AC, 6 points...
  • Page 7 Section1 Standards Conformed Product Component Type Specification CE UL cUL LR NK To adapt to Dummy module NP1F-DMY substitute for the failed module NP1F-HC2 2 channels 500kHz High-speed counter marking, module NP1F-HC8 8 channels 50kHz measures Pulse train output Pulse train command, 2 channels 250kHz described NP1F-HP2 module...

  • Page 8: Section2 Conformance With Ce Marking

    Section2 Conformance with CE marking 2-1 CE marking <Product standard> IEC 61131-2 EMI = CISPR11, Gr. 1, Class A EMS = IEC 61000-4-2 to -6, -8 and -12 <Classification of product> Enclosed type equipment, which is defined as follows: "To prevent accidents due to a charged or operating part coming into contact with the human body, the product should be installed in a metal enclosure when used."...

  • Page 9: Method For Adapting To Ce Marking

    Section2 Conformance with CE marking 2-2 Method for adapting to CE marking 2-2-1 Metal Enclosure MICREX-SX Series products are classified as "enclosed type" equipment. "Enclosed type" means equip- ment that is designed on the condition that it is installed in an enclosure such as a metal enclosure, so that electric shock or other accidents do not occur due to the human body coming into contact with the product (MICREX-SX).

  • Page 10: How To Lay The Sx Bus Cable

    Section2 Conformance with CE marking 2-2-2 How to lay the SX bus cable <Mounting the ferrite core> A high-speed electric signal flows through the SX bus cable. Therefore, high-frequency noise is emitted from the SX bus cable, making it impossible for the product to conform to the EMC directive concerning CE marking.

  • Page 11: Adaptation Of Individual Module

    Section2 Conformance with CE marking 2-2-3 Adaptation of individual module (1) T-link master/interface module (NP1L-TL1 / RT1) When a T-link master module is used, it is necessary to mount the ferrite core at the base of the communi- cation cable as well as affix insulating sheet. When the T-link interface module is used, it is necessary to mount the ferrite core at the base of the communication cable.

  • Page 12: Opcn-1 Master Module (Np1L-Jp1)

    Section2 Conformance with CE marking (2)OPCN-1 master module (NP1L-JP1) When a OPCN-1 master module is used, it is necessary to the stick-insulating sheet. 1) Affix the static electricity preventive insulating sheet to the station number-setting switch W h e n a s t a t i o n n u m b e r n e e d s t o b e c h a n g e d w h i l e t h e m o d u l e i s o p e r a t i n g , i t i s o n c e n e c - e s s a r y t o r e m o v e t h e i n s u l a t i n g s h e e t f o r t h i s w o r k .

  • Page 13: Precautions For Using The "As-I" Master Module (Np1L-As1)

    Section2 Conformance with CE marking (4) Precautions for using the "AS-i" master module (NP1L-AS1) When the "AS-i" module is used, the operator who works on the terminal block for connecting the signal cable must discharge static electricity accumulated on his body by means of a static elimination band or the like before touching the terminal block so that static discharge to the terminal block does not occur.

  • Page 14: Measures For The Positioning Modules

    Section2 Conformance with CE marking 2) Affix the static electricity-preventive insulating sheet on the station number-setting switch. Take measures to prevent static discharge to the terminal block for the signal cable. Affix the static electricity preventive insulating sheet to the station number-setting switch. When a station number needs to be changed while the module is operating, it is once necessary to remove the insulating sheet for this work.

  • Page 15: Adaptation To Ul Standard

    Section3 Adaptation to UL standard / Lloyd's Register of Shipping / NK 3-1 Adaptation to UL standard No restriction 3-2 Adaptation to Lloyd's Register of Shipping / NK Ship standards such as Lloyd's Register of Shipping and NK (Nippon Kaiji Kyokai) are almost the same as that for CE marking, except that vibration- related rules are more severe in the former than in the latter.

  • Page 16: Section4 Installing The Pc & Wiring Of Power Supply

    Section4 Installing the PC & Wiring of power supply 4-1 Installing PC uints 80mm or more Unite Unite MICREX- 50mm or more 110mm or more 110mm or more 110mm Unite 10mm or more Duct or more 50mm or more Other device MICREX- 50mm or more...

  • Page 17: Wiring Of Power Supply

    Section4 Installing the PC & Wiring of power supply 4-2 Wiring of power supply Keep the distance between the insulating transformer AC power supply (or the noise filter) and the power supply module as short as possible, and the cable must be twisted densely.
  • Page 18 Section4 Installing the PC & Wiring of power supply 2) Voltage selection (for only AC power supply) 100V AC : Short (using a jumper cable) 200V AC : Open 3) Grounding • Connect the FG terminal to the integrated ground section of each control panel (FG bus, FG integrated terminal block, or stud) in branch-type configuration.
  • Page 19 Section4 Installing the PC & Wiring of power supply <Grounding example> Power supply Control panel SX bus Operator panel T-link master Power supply Remote FG bus FG bus Integrated ground section Integrated ground section 5.5mm or more Integrated ground board Grounding...
  • Page 20 Fuji Electric Co.,Ltd ED & C Division,Electrical Components & Drive Systems Company Gate City Ohsaki, East Tower, 11-2, Osaki 1-chome, Shinagawa-ku, Tokyo 141-0032, Japan Phone: 3-5435-7135 / 3-5435-7136 Fax: 3-5435-7456 / 3-5435-7457 Information in this manual is subject to change without notice.
