Summary of Contents for Brooks SLA5810/20

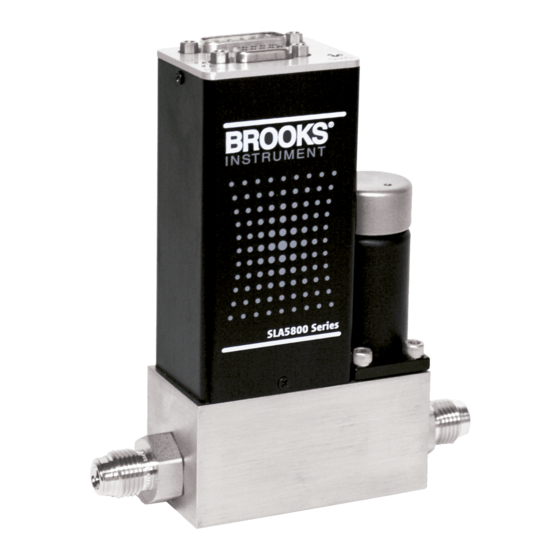

- Page 1 Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 ® Brooks Digital Elastomer Sealed Pressure Controllers Models SLA5810/20 and SLAMf10/20 Model SLAMf10/20 Model SLA5810/20...
- Page 2 Read before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.
- Page 3 We appreciate this opportunity to service your flow measurement and control requirements with a Brooks Instrument device. Every day, flow customers all over the world turn to Brooks Instrument for solutions to their gas and liquid low-flow applications. Brooks provides an array of flow measurement and control products for various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices, analytical instrumentation, semiconductor manufacturing, and more.
- Page 4 Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 5: Table Of Contents
Installation and Operation Manual Contents X-PR-SLA5800-SLAMF-Series.RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 Paragraph Page Number Number Section 1 Introduction Scope ............................1-1 Purpose ............................1-1 Description ..........................1-1 Specifications ..........................1-2 Section 2 Installation General ............................2-1 Receipt of Equipment ......................... - Page 6 Number Number Typical Configurations ........................ 1-7 SLA5810/20 and SLAMf10/20 Analog/RS485 Connections and Pinouts ........1-7 SLA5810/20 and SLAMf10/20 Profbus Connections and Pinouts ..........1-8 SLA5810/20 and SLAMf10/20 DeviceNet Connections and Pinouts .......... 1-9 Dimensions - Models SLA5810/20, Thru-Flow, RS485 ............. 1-10 Dimensions - Models SLA5810/20, Thru-Flow, Profibus ............
-
Page 7: Section 1 Introduction
ODVA (Open DeviceNet Vendor's Association) and the ITK (Interoperability Test Kit). Other network protocols are in development. Talk to your Brooks representative about your specific needs. The process and command data may be 'wired' either using traditional 5 volt analog connections or digital communications networks;... -
Page 8: Specifications
1-4 Specifications PC-based Support Tools Brooks Instrument offers a variety of PC-based process control and service tools to meet the needs of our customers. SmartDDE may be used with any unit supporting RS485 in a multidrop configuration, thus allowing users to control and monitor their Brooks devices. - Page 9 1 psi 1500 psia/103 bara Sound Engineering (Back Pressure Regulator) 1500 psi 4500 psia/310 bara Practices (SEP) * Consult sales agent or Brooks Instrument for flow limitations < 10 psi F.S. pressure Table 1-2 Specifications Performance Performance Performance Performance Performance SLA58510/20 &...
- Page 10 The Alarm Output may be set to indicate any one of various alarm conditions. ** The Valve Override Signal (VOR) is implemented as an analog input which measures the voltage at the input and controls the valve based upon the measured reading as shown in this section. *** Available on SLA5810/20/40 only.
- Page 11 Section 1 Introduction Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 amd SLAMf10/20 January, 2017 Table 1-4 Certifications - SLA58XX Applicable Mark Agency Certification Standard Details Class I, Div 2, Group A, B, C, D Class I, Zone 2, IIC T4 UL &...
- Page 12 Section 1 Introduction Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 Table 1-5 Certifications - SLAMfXX Mark Agency Certification Applicable Standard Details Class I, Div 2, Group A, B, C, D Class I, Zone 2, IIC T4...
-
Page 13: Typical Configurations
Baud rate selections for the Brooks Digital Series related to RS485 are: 1200, 2400, 4800, 9600, 19200 and 38400 baud and can be selected via the Brooks Expert Support Tool (BEST). - Page 14 Profibus Communications The Brooks SLA58xx/SLAMfxx is now equipped to support the Profibus communication protocol. Profibus is a fieldbus-based automation standard of Profibus and Profinet International (PI). Via a single bus cable, Profibus links controller or control systems with decentralized field devices (sensors and actuators) on the field level and also enables consistent data exchange with higher ranking communication systems.
-
Page 15: Sla5810/20 And Slamf10/20 Devicenet Connections And Pinouts
The Brooks SLA58xx/SLAMfxx is also available with DeviceNet communication capability. DeviceNet is an open digital protocol capable of high speeds and easy system connectivity. Brooks Instrument has several of its devices available on this popular networking standard, and is a member of ODVA (Open DeviceNet Vendors Association), the governing standard body for DeviceNet. -
Page 16: Dimensions - Models Sla5810/20, Thru-Flow, Rs485
Models SLA5810/20 and SLAMf10/20 January, 2017 Note: Aux Input is used for Remote Transducer Pressure Controllers only. Figure 1-5 Dimensions - Models SLA5810/20, Thru-Flow, RS485 Note: Aux Input is used for Remote Transducer Pressure Controllers only. 1-10 Figure 1-6 Dimensions - Models SLA5810/20, Thru-Flow, Profibus... -
Page 17: Dimensions - Models Sla5810/20, Thru-Flow, Devicenet
January, 2017 Note: Aux Input is used for Remote Transducer Pressure Controllers only. Figure 1-7 Dimensions - Models SLA5810/20, Thru-Flow, DeviceNet Note: Aux Input is used for Remote Transducer Pressure Controllers only. Figure 1-8 Dimensions - Models SLAMf10/20, Thru-Flow, RS485... -
Page 18: Dimensions - Models Slamf10/20, Thru-Flow, Profibus
Section 1 Introduction Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 Note: Aux Input is used for Remote Transducer Pressure Controllers only. Figure 1-9 Dimensions - Models SLAMf10/20, Thru-Flow, Profibus Note: Aux Input is used for Remote Transducer Pressure Controllers only. -
Page 19: Section 2 Installation
If the packing case is damaged, the local carrier should be notified at once regarding his liability. A report should be submitted to the nearest Brooks Instrument location listed on the Global Service Network page on our website: BrooksInstrument.com/... -
Page 20: Transit Precautions
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 2-5 Transit Precautions To safeguard against damage during transit, transport the instrument to the installation site in the same container used for transportation from the factory if circumstances permit. -
Page 21: Installation
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMF-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMF10/20 January, 2017 2-9 Installation Recommended installation procedures: a.The Pressure Controller should be located in a clean, dry atmosphere relatively free from shock and vibration. b.Install in such a manner that permits easy removal if the instrument requires servicing. -
Page 22: Electrical Interface
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 2-10 Electrical Interface SLA Enhanced pressure controllers are controlled using analog signals or digital control via RS485, DeviceNet or Profibus. For an analog unit the... -
Page 23: Shielded Cable Hookup Diagram - Analog/Rs485
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMF-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMF10/20 January, 2017 Note : Aux. Input only used for Remote Transducer Pressure Controllers. Figure 2-1 Shielded Cable Hookup Diagram - Analog/RS485 Note: Aux Input is used for Remote Transducer Pressure Controllers only. -
Page 24: Shielded Cable Hookup Diagram - Devicenet
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 Note : Aux. Input only used for Remote Transducer Pressure Controllers. Figure 2-3 Shielded Cable Hookup Diagram - DeviceNet or +24 Vdc Notes: 1. -
Page 25: Recommended I/O Wiring Configuration For Current Signals (Non-Isolated Power Supply)
Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMF-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMF10/20 January, 2017 Figure 2-5 Recommended I/O Wiring Configuration for Current Signals (Non-Isolated Power Supply) Figure 2-6 Recommended I/O Wiring Configuration for Current Signals (Isolated Power Supply) - Page 26 Section 2 Installation Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 27: Section 3 Operation
An electronic amplifier provides output to the control circuit as well as the electrical output signal. In addition to the pressure transducer the Models SLA5810/20 and SLAMf10/20 have an integral control valve and control circuitry. A difference between the pressure and setpoint signals will cause the electronics to modulate the control valve to maintain the desired pressure. -
Page 28: Model Sla5810/20 System Block Diagram (Downstream Version)
Part Number: 541B198AAG Models SLA5810/20 and SLAMF10/20 January, 2017 Figure 3-1. Model SLA5810/20 System Block Diagram (Downstream version). The digital pressure controller is capable of storing up to 6 different sets of PID controller settings and valve performance data. The digital pressure controller can contain settings for different gases or for the same gas at multiple conditions (pressures, full-scale flow rates). -
Page 29: Analog I/O Mode Of Operation
Zero Button Figure 3-2 Externally Accessible Adjustment for all SLA5810/20 Controllers. 3-4 Analog I/O Mode of Operation The following paragraphs describe the basic features of the Brooks Digital Series Pressure Controllers. NOTE: Read Section 3-3, Features, before reading this section. See Profibus, DeviceNet and RS485 Supplemental Instruction Manuals for specific details on communication features. -
Page 30: Communications Features
3-5-1 Analog/RS485 Communications Features Digital communication, designed to emulate the Brooks S-series "S-protocol" or pseudo-HART communications is available on the Brooks Digital Series via RS485. This form of multi-drop capable communication provides access to many of the Brooks Digital Series functions for "control and monitor"... -
Page 31: Profibus Communications Features
Series" (X-DPT-RS485-SLA5800-SLAMf-Series-RevB-MFC-PC-RT-eng) for more details regarding the capabilities of this communication interface. 3-5-2 Profibus Communications Features The Brooks SLA5810/20 and SLAMF10/20 is now equipped to support the Profibus communication protocol. The communication electronics allows for automatic baud rate detection ranging from 9600 baud to 12 Mbaud, thus making the need for any hardware baud rate selection methods not required. - Page 32 Models SLA5810/20 and SLAMF10/20 January, 2017 The DeviceNet communication link also provides access to many of the Brooks SLAMf Digital Series functions for “control and monitor” operations, including: • Accurate setpoint adjustment and flow output measurement (including units of measure selection) •...
-
Page 33: Section 4 Maintenance & Troubleshooting
Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 4-1 Overview No routine maintenance is required on the Brooks Digital PC. If an in-line filter is used, the filtering elements should be periodically replaced. This section provides the following information: • Troubleshooting... - Page 34 1. Verify a low resistance common connection and that the correct power supply voltage and signals are reaching and leaving the controller. The Brooks Expert Support Tool will make this job much easier. 2. Connections may not be secure. Check all cable connections.
-
Page 35: Bench Troubleshooting Circuit
Section 4 Maintenance & Troubleshooting Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 Figure 4-1 Bench Troubleshooting Circuits... - Page 36 Section 4 Maintenance & Troubleshooting Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 37 Section A Essential Instructions Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG January, 2017 Models SLA5810/20 and SLAMf10/20 Bulgarian Brooks Instrument Brooks Instrument. Brooks Instrument : (1) . (2) Brooks Instrument (PED) 0,5 bar (g) 25 mm 1" (inch), (PED).
- Page 38 P ed instalací si p e t te následující instrukce! Spole nost Brooks Instrument konstruuje, vyrábí a testuje tento produkt tak, aby splnil mnoho národních a mezinárodních standard . P ístroje musí být ádn nainstalovány, používány a udržovány tak, aby byl zajišt n jejich nep etržitý provoz v rámci normálních technických specifikací. Musíte dodržovat následující...
- Page 39 Om kvalitet af signalkabler, kabeltilslutninger og koblinger: Brooks tilbyder kabler af højest kvalitet, som er tilpasset CEE kvalificeringens forskrifter. Hvis man vælger at bruge egne kabler, skal man vælge et kabel som har den nødvendige afskærmning for at sikre 100 % mod udefra kommende støj.
- Page 40 Lees ze voordat u verder gaat! Brooks Instrument ontwerpt, produceert en test haar producten zodanig dat ze voldoen aan vele nationale en internationale normen. Deze producten moeten correct worden geïnstalleerd, bediend en onderhouden zodat ze binnen hun normale specificaties blijven werken.
- Page 41 Olulised juhised Enne kasutamist lugege hoolikalt läbi! Brooks Instrument konstrueerib, valmistab ja katsetab oma tooteid selliselt, et need vastaksid paljudele riiklikele ja rahvusvahelistele standarditele. Ainult nõuetekohane paigaldamine, kasutamine ja hooldamine tagab toodete katkematu talitluse tavaspetsifikatsiooni raames. Brooks Instrumenti toodete paigaldamisel, kasutamisel ja hooldamisel tuleb täita alljärgnevaid juhiseid ja integreerida need asjakohasesse ohutusprogrammi.
- Page 42 PED direktiiviä koskevat määräykset löytyvät käyttöoppaan ’’Tekniset tiedot” -luvusta. Käyttöoppaassa kuvatut tuotteet ovat 2014/34/EU EU-direktiivin mukaisia. Kaikki Brooks Instrumentin virtausmittarit kuuluvat ryhmään 1. Laitteet, jotka ovat suurempia, kuin 25 mm tai 1 tuuma, ovat PED I, II, III kategorien mukaisia.
- Page 43 AVERTISSEMENT: n’utilisez pas cet instrument au-delà des spécifications énumérées dans le manuel d’utilisation. Le non-respect de cet avertissement peut entraîner de graves blessures et / ou endommager l’équipement. • Si vous ne comprenez pas l’une des instructions, prenez contact avec un représentant de Brooks Instrument pour obtenir des explications. •...
- Page 44 Produkte mit einer Größe von 25 mm oder 1“ (inch) oder kleiner sind Sound Engineering Practice (SEP). Europäische Verordnung zur elektromagnetischen Verträglichkeit (EMV) Geräte von Brooks Instrument (elektrischer und elektronischer Art) mit CE-Zeichen haben den Test auf Einhaltung der Verordnung zur elektromagnetischen Verträglichkeit (EMV Richtlinie 2014/30/EU) erfolgreich bestanden.
- Page 45 Section A Essential Instructions Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG January, 2017 Models SLA5810/20 and SLAMf10/20 Greek Brooks Instrument Brooks Instrument. ’ Brooks Instrument. : (1) . (2) Brooks Instrument. (PED) 0,5 bar (g) 25 mm (PED). PED.
- Page 46 üzemeltetni és karbantartani ahhoz, hogy mindenképpen a normál m ködési tartományuknak megfelel en üzemelhessenek. Az alábbi utasításokat be kell tartani, és be kell építeni a munkavédelmi programba a Brooks Instrument termékeinek telepítése, üzemeltetése és karbantartása során.
- Page 47 Direttiva europea relativa alla compatibilità elettromagnetica (EMC) Le apparecchiature (elettriche/elettroniche) Brooks Instrument dispongono del marchio CE ed hanno superato positivamente i test per i requisiti di compatibilità elettromagnetica (Direttiva EMC 2014/30/EU). In ogni caso bisogna prestare particolare attenzione alla scelta dei cavi di segnale utilizzati per le apparecchiature con marchio CE.
- Page 48 Lai nodrošin tu šo izstr d jumu turpm ku darb bu atbilstoši noteiktajiem parametriem, tie ir pareizi j uzst da, j lieto un j apkopj. Uzst dot, lietojot „Brooks Instrument” izstr d jumus un veicot to apkopi, ir j iev ro šie nor d jumi un j iek auj tie j su droš bas programm .
- Page 49 SP JIMAS: nenaudokite šio prietaiso viršydami instrukcijoje ir eksploatacijos vadove nurodytus techninius duomenis. Nesilaikydami šio sp jimo galite sunkiai susižeisti ir (arba) sugadinti rang . Jei nesuprantate koki nors nurodym , kreipkit s „Brooks Instrument“ atstov , kad paaiškint . Paisykite vis sp jim , persp jim ir nurodym , pažym t ant gaminio arba pateikt su juo.
- Page 50 Produkty o wielko ci 25 mm lub 1 cala lub mniejsze podlegaj zaleceniom „Uznanej Praktyki In ynierskiej” (SEP). Europejska dyrektywa dotycz ca kompatybilno ci elektromagnetycznej (EMC) Urz dzenia elektryczne / elektroniczne firmy Brooks Instrument posiadaj ce oznaczenie CE, przesz y pozytywnie testy pod k tem spe niania przez nich wymogów kompatybilno ci elektromagnetycznej (Dyrektywa EMC 2014/30/EU).
- Page 51 Ler antes de proceder! A Brooks Instrument projecta, fabrica e testa os seus produtos de forma a satisfazer numerosas normas nacionais e internacionais. Estes equipamentos devem ser instalados, utilizados e mantidos de forma adequada, e devem funcionar dentro da sua gama de utilização. As instruções seguintes devem ser, durante a instalação, uso e/ou manutenção dos equipamentos da Brooks Instrument, apreendidas e integradas no plano de...
- Page 52 În m sura în care indica iile c r ii ma inii nu sunt suficient de l muritoare, lua i leg tura cu reprezentantul Brooks Instrument pentru clarificarea problemei.
- Page 53 Pre íta pred inštaláciou! Brooks Instrument svoje výrobky projektuje, vyrába a testuje takým spôsobom, aby tieto vyhoveli domácim aj medzinárodným normám. Tieto zariadenia je potrebné predpísaným spôsobom inštalova , prevádzkova a udržiava , na zabezpe enie ich spo ahlivej a normálnej prevádzky v celom pracovnom rozsahu.
- Page 54 Pred servisom morate odstraniti tlak v obdelovalni liniji. e potrebujete rezervne dele, zagotovite, da usposobljeno osebje uporablja rezervne dele, ki jih je odobrila družba Brooks Instrument. Neodobreni deli in postopki lahko vplivajo na u inkovitost delovanja izdelka ali ogrozijo varno upravljanje postopka.
- Page 55 ¡Léalos primero! El Brooks Instrument proyecta, fabrica y prueba sus productos de manera que éstos respondan a numerosas normas nacionales e internacionales. Dichas instalaciones deben ser emplazadas, operadas y mantenidas adecuadamente, para que puedan marchar de todas formas en conformidad con el alcance normal de funcionamiento.
- Page 56 Läs detta innan du fortsätter! Brooks Instrument konstruerar, tillverkar och testar sina produkter med syfte att uppfylla alla nationella och internationella standarder. Dessa produkter måste installeras på rätt sätt, handhas och underhållas för att de skall fungera kontinuerligt enligt deras normala specifikation. De följande anvisningarna bör följas och integreras till Ert säkerhetsprogram varje gång när Brooks Instruments produkter installeras, handhas och underhålls.
- Page 57 Installation and Operation Manual X-PR-SLA5800-SLAMf-Series-RevB-PC-eng Part Number: 541B198AAG Models SLA5810/20 and SLAMf10/20 January, 2017 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 58 BROOKS SERVICE AND SUPPORT Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support.
