Installation and Operation Manual
X-CM-QmB-eng
Part Number: 541B029AAG
July, 2018
Brooks

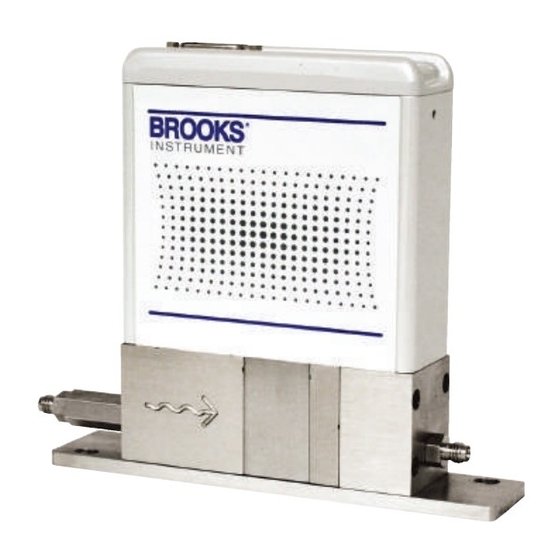

Quantim Low Flow Coriolis
®
Precision Mass Flow Measurement and

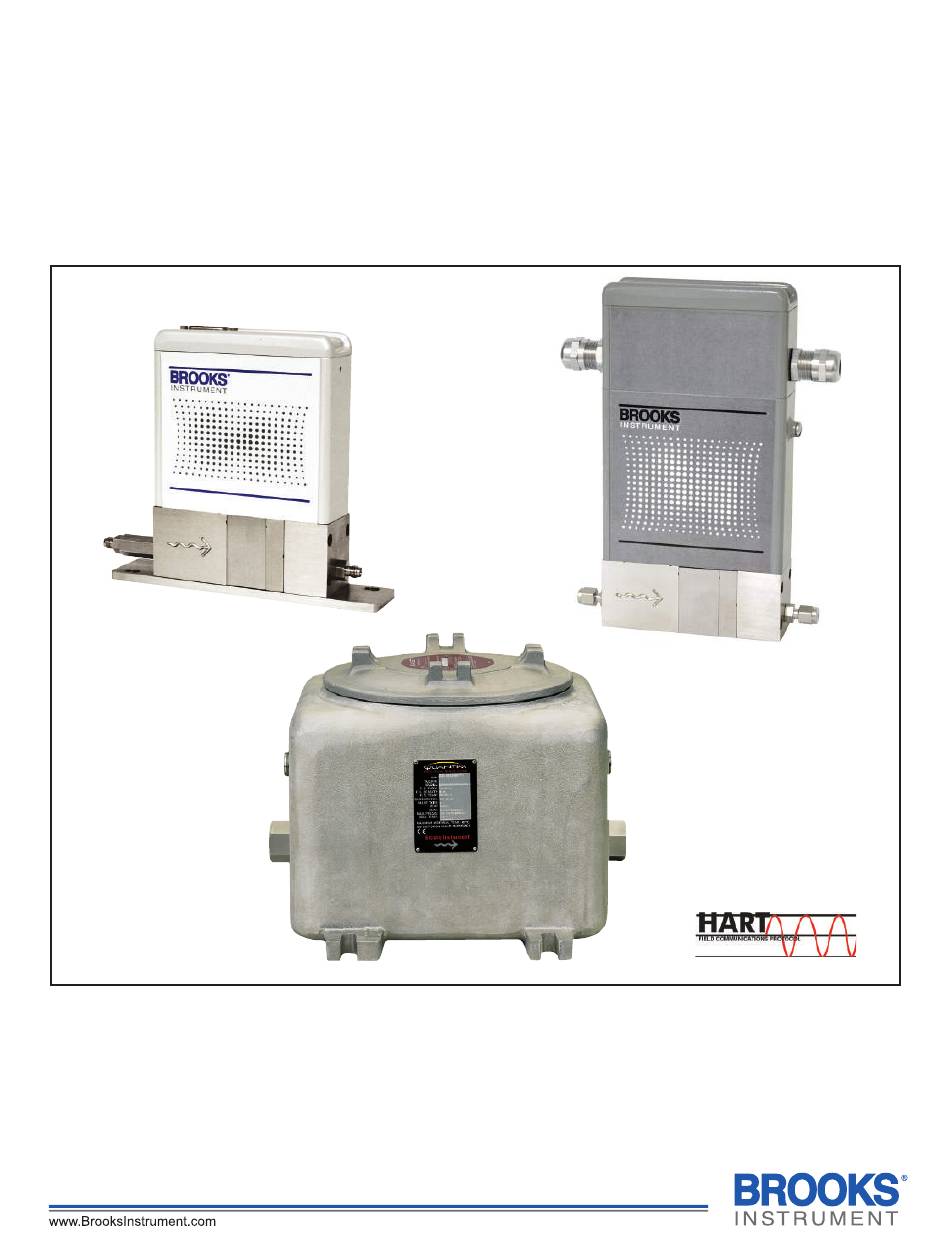

IP66XP
Explosion Proof
Configuration
NEMA1 / IP40
General Purpose
Configuration
"Quantim Coriolis mass flow controllers
enable precision measurement and control with
maximum flexibility and lowest overall cost of ownership."
QmB Series IP40, IP66, IP66XP
NEMA 4X / IP66
Weather Proof
Configuration
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Brooks QMBC
Summary of Contents for Brooks QMBC
- Page 1 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Brooks Quantim Low Flow Coriolis ® Precision Mass Flow Measurement and NEMA1 / IP40 General Purpose Configuration NEMA 4X / IP66 Weather Proof Configuration IP66XP...
- Page 2 Read before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.
- Page 3 We appreciate this opportunity to service your flow measurement and control requirements with a Brooks Instrument device. Every day, flow customers all over the world turn to Brooks products for solutions to their gas and liquid low-flow applications. Brooks provides an array of flow measurement and control products for various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices, analytical instrumentation, semiconductor manufacturing, and more.
-
Page 4: Quick Start Instructions Ip40 - For Liquid Service
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Quick Start Instructions IP40 - For Liquid Service Horizontal Mounting Vertical Mounting QS-1... -
Page 5: Quick Start Instructions Ip40 - For Gas Service
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Quick Start Instructions IP40 - For Gas Service QS-2... -
Page 6: Quick Start Instructions Ip66
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Quick Start Instructions IP66 When wiring terminal block in IP66 device, ensure wires are appropriate length and are properly dressed. Unnecessarily long wires can protrude below the top housing and cause damage to the sensor assembly below. -
Page 7: Quick Start Instructions Ip66Xp
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Quick Start Instructions IP66XP QS-4... -
Page 8: Quick Start Instructions For Connecting Hart On 4-20 Mamp I/O
Quick Start Instructions for Connecting HART on 4-20 mAmp I/O ® Refer to the X-Qm-HART Installation and Operation Manuals for complete wiring of a Brooks Quantim for HART interface. HART Communications is provided on the Primary Output of the Brooks Quantim device. Connecting a HART Communicator, or any HART modem, requires a connection between pins 4 and 1 as shown below. - Page 9 X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Proper wiring of a Brooks Quantim Explosion Proof NEMA 4X / IP66XP DB15 Connector Quick Start Instructions for Connecting Alarm Output Alarm Output Option 1 - Relay Alarm Output Option 2 - TTL...
- Page 10 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 THIS PAGE WAS INTENTIONALLY LEFT BLANK QS-7...
-
Page 11: Table Of Contents
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Section Page Number Number Quick Start Instructions Quick Start Instructions IP40 - For Liquid Service ............QS-1 Quick Start Instructions IP40 - For Gas Service ............... QS-2 Quick Start Instructions IP66 .................... - Page 12 Horizontal Inverted Installation ................2-4 Horizontal Right Side Up Installation ..............2-5 Vertical Flow Up Installation ...................2-5 Proper Wiring of a Brooks QmB NEMA 4X / IP66XP ..........2-8 Alarm Output Wiring Options ..................2-8 Wire Color Codes for 'D' Connector Assembly .............2-10 Location of LED ...................... 3-1 Location of the Zero Button ..................
-
Page 13: Section 1 Introduction
Essential Instructions Back Cover Warranty, Local Sales/Service Contact Information The Quality System at Brooks Instrument conforms to the quality standards set forth in ISO 9001. This instruction manual is intended to provide the user with all the information necessary to install, operate and maintain the Brooks Quantim Mass Flow Meters and Controllers. -
Page 14: Performance Specifications
Rate Scale Flow Type Tube Size Model Kg/hr or l/hr Kg/hr or l/hr Kg/hr or l/hr Kg/hr or l/hr 0.30 0.15 0.01 0.001 Controller QMBC 1.00 0.78 0.10 0.010 15.94 7.97 1.00 0.100 0.38 0.19 0.01 0.001 Meter QMBM 1.00 1.00... - Page 15 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Gas Flow Limits Air, 70 F (21 C), 14.5 psi (1 bar) pressure drop 100,000 Size 4 Meter Size 4 Controller 10,000 Size 3 Meter Size 3 Controller Size 2 Meter Size 2 Controller...
- Page 16 Tube Size max* max* max* max* max* max* 10.3 1724 17.2 1034 QMBC 1379 13.8 1034 10.3 13.8 1034 1379 10.3 *Actual maximum pressure drop will depend on process conditions and orifice selection. Differential Pressures , Meter Pressure Drop Liquid - (H 100.0...
- Page 17 ± 0.5°C or ± 1.0°F Notes QMBC - Brooks Quantim controller with integral control valve. QMBM - Brooks Quantim meter (no valve). The nominal flow rate at which water at reference conditions causes approximately 1 bar of pressure drop or the laminar to turbulent transition flow whichever is lower. Maximum flow rate is twice nominal flow rate or the laminar to turbulent transition flow whichever is lower.
- Page 18 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Physical Specifications Materials of Construction: Process Wetted: 316L, 316L VAR, High Alloy Ferritic Stainless and 17-7PH Optional: Nickel Alloy C-22 sensor tube. Process Seals: Elastomer Seal: Viton ®...
- Page 19 Additional Functions and Outputs Damping: Factory set time constant from 0 to 10 seconds. Alarms and Warnings: Alarms accessed via HART or the Brooks Service Tool can be configured to monitor the following variables (13) • Mass Flow • Density •...
- Page 20 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Certifications and Approvals IP40 Series Non Incendive/ Non Sparking United States and Canada- UL Recognized E73889, Vol. 3, Sect. 3. Non Incendive , Class I, Division 2, Groups A, B, C and D; T4 Per UL 1604, UL 508 and CSA 22.2 No.
- Page 21 Quantim device must must be ordered with one of the appropriate options and be directly connected to a low impedance (less than 1 Ohm) earth ground. Signals use a standard twisted-pair, shielded instrument wire. Pressure effects: The Brooks Quantim series meets the requirements of the Pressure Equipment Directive 2014/34/EU. The unit falls into the category "Sound Equipment Practice".
-
Page 22: Dimensions
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 1-4 Dimensions .594 15.10 3.060 77.72 .750 19.05 .003 .594 15.09 .003 .742 18.86 .594 15.10 .594 15.09 .003 .003 .003 .594 15.10 .594 15.09 .003 .003 .213... -
Page 23: D-Connector Electrical Pin Connections
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Figure 1-2 Dimensional Drawing QmB IP40 Thru-Flow Figure 1-3 D-Connector Electrical Pin Connections Figure 1-4 Lay-In Dimensions Integral and Remote Valves 1-11... -
Page 24: Dimensional Drawing Qmb Ip40 With Remote Valve
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Figure 1-5 Dimensional Drawing QmB IP40 with Remote Valve Figure 1-6 Dimensional Drawing QmB IP66 1-12... -
Page 25: Dimensional Drawing Qmb Ip66
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Figure 1-7 Dimensional Drawing QmB IP66XP 1-13... - Page 26 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 THIS PAGE WAS INTENTIONALLY LEFT BLANK 1-14...
-
Page 27: General
If the packing case is damaged, the local carrier should be notified at once regarding his liability. A report should be submitted to the nearest Brooks Instrument location listed on the Global Service Network page on our website: BrooksInstrument.com/... -
Page 28: Transit Precautions
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 2-5 Transit Precautions To safeguard against damage during transit, transport the instrument to the installation site in the same container used for transportation from the factory if circumstances permit. - Page 29 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP July, 2018 Recommended installation procedures: All models should be mounted to a stable surface that is relatively free from mechanical shocks and mechanical vibration using the supplied mounting plate. Leave sufficient room for access to the electrical connections.
-
Page 30: Process Mounting
June, 2017 2-8 Process Mounting The Brooks Quantim will function in any orientation if the Coriolis sensor and the control valve remain filled with process fluid. Entrapped gas in a liquid application and entrapped liquid in a gas application should be prevented as it may disturb the Coriolis sensor and the control valve. -
Page 31: Horizontal Right Side Up Installation
Vertical Mounting Figure 2-3 Horizontal Right Side Up Installation If the Brooks Quantim is installed in a vertical orientation, for use in a liquid application liquid should flow upwards through the instrument to help minimize errors due to entrapped gas (See Figure 2-4). For gas flow vertical orientation, flow up or down is acceptable. -
Page 32: Electrical Interfacing
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 2-9 Electrical Interfacing Meter and Controller Flow Output (Pins 2, 4 and 10) Flow Output configuration is a factory selected option. Each Quantim instrument is calibrated as either 0-5 Vdc or 4-20 mA at the factory as specified when ordering. - Page 33 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Secondary Outut, Density or Temperature (Pin 13 and Pin 10) Pin 13 indicates the density or temperature, represented by a 4-20 mA or 0-5 Vdc signal, proportional to density or temperature. The current and voltage signals are returned via Pin 10.
-
Page 34: Alarm Output Wiring Options
X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Figure 2-5 Proper Wiring of a Brooks QmB NEMA 4X / IP66 Alarm Output Option 1 - Relay Alarm Output Option 2 - TTL PIN 5 14 - 27 Vdc Power Source... -
Page 35: Interconnection With Peripheral Equipment
QmB Series IP40, IP66, IP66XP June, 2017 2-10 Interconnection with Peripheral Equipment Quantim Meter/Controller and Brooks Instrument Models 0152, 0154 or 0254 interconnection. The following cables are available for connection of the Quantim Mass Flow Meter/Controller to the Brooks Microprocessor Control & Read-out Unit: Models # 0152, 0154 or 0254 Length: 3ft (1m);... -
Page 36: Wire Color Codes For 'D' Connector Assembly
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Figure 2-7 Wire Color Codes for 'D' Connector Assembly 2-10... -
Page 37: Operating Procedure
The Brooks Helpdesk is available to assist with start-up if you experience issues you cannot solve on your own. You will be asked to provide the model code and serial number of your Brooks equipment, which will assist us in answering your questions. For telephone references, please refer to the back cover of this instruction manual. -
Page 38: Location Of The Zero Button
QmB Series IP40, IP66, IP66XP June, 2017 After the Brooks Quantim has been fully installed, you must perform the zeroing procedure. This procedure ensures that the instrument responds properly to zero flow condition and sets a baseline for flow. To perform the zeroing operation on the meter/controller, use the ZERO button, which is located on top right hand side (outlet side) of the instrument. - Page 39 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 a. Install the instrument according to the instructions in this manual. b. Power-up sequence. Isolate device from flow pressure when applying power. Once the status indicator is illuminated green, pressure may be applied.
-
Page 40: Calibration Procedure
QmB Series IP40, IP66, IP66XP June, 2017 3-3 Calibration Procedure The Quantim calibration is not described in this manual. If your Quantim requires calibration, please contact one of the Brooks Instrument locations for technical assistance (See Back Cover for Contact Information). -
Page 41: General
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 4-1 General There are no routine maintenance procedures required to keep the Quantim device in good operating condition. It is however, very important to keep the fluid entering the Quantim clean, and as a result periodic replacement of the inlet guard filter is recommended at a frequency determined by the cleanliness of the fluid. -
Page 42: Troubleshooting
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 4-2 Maintenance & Troubleshooting System Checks Quantim Flow Meters and Controllers are typically used as a critical component in fluid systems. These systems can be complex in nature and therefore isolating a malfunction has to be done with a system perspective. - Page 43 Valve out of adjustment. Adjust pressure to original Unstable inlet pressure. Contact Brooks Instrument. Defective PC board. Check external pressure regulator. Valves are tuned digitally and mechanically for a particular P. Contact Brooks Instrument.
- Page 44 Check the valve override terminal Defective PC board. (Pin 12). Contact Brooks Instrument. No secondary output signal Not all models have a secondary output. Check calibration sheet and/or other documentation to confirm if device should have a secondary output. If yes, contact Brooks Instrument.
- Page 45 (nitrogen or clean dry air) at a pressure near the process operating pressure. d. If the output signal does not zero properly, please contact Brooks Instrument for technical asistance. 3. For a MFC connect a 0-5 Vdc source to Pin 8 and return to Pin 1 or connect 0-20 mA source to Pin 7 and return to Pin 1.
-
Page 46: Bench Troubleshooting Circuit
6. If the Quantim is functioning correctly, the problem may lie elsewhere in the flow system. Re-verify the installation as well as the upstream/downstream fluid system configuration. 7. Please contact Brooks Instrument for further assistance in troubleshooting. Refer to the back cover of this manual for contact information. -
Page 47: External Valve Service
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 4-3 External Valve Service Valve Disassembly The numbers in () refer to the parts in the exploded view diagram Figure 4-2. Remove valve nut, item (9). Remove coil cover and coil, item (8). -
Page 48: Parts List
10. Install the vavle nut, item(10) hand tight (snug). 11. Pressure and leak test to local standards. Note: Standard Brooks Instrument pressure test is 1.5 times the design pressure marked on the valve and a helium leak test at 1 x10 bar .cc/s... -
Page 49: Exploded Diagram Of Valve Assembly
Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Figure 4-3 Exploded Diagram of Valve Assembly Figure 4-4 Valve Torque Pattern... - Page 50 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 THIS PAGE WAS INTENTIONALLY LEFT BLANK 4-10...
- Page 51 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Bulgarian Brooks Instrument Brooks Instrument. Brooks Instrument : (1) . (2) Brooks Instrument (PED) 0,5 bar (g) 25 mm 1" (inch), (PED). „ ” 2014/34/EU.
- Page 52 P ed instalací si p e t te následující instrukce! Spole nost Brooks Instrument konstruuje, vyrábí a testuje tento produkt tak, aby splnil mnoho národních a mezinárodních standard . P ístroje musí být ádn nainstalovány, používány a udržovány tak, aby byl zajišt n jejich nep etržitý provoz v rámci normálních technických specifikací. Musíte dodržovat následující...
- Page 53 Om kvalitet af signalkabler, kabeltilslutninger og koblinger: Brooks tilbyder kabler af højest kvalitet, som er tilpasset CEE kvalificeringens forskrifter. Hvis man vælger at bruge egne kabler, skal man vælge et kabel som har den nødvendige afskærmning for at sikre 100 % mod udefra kommende støj.
- Page 54 Lees ze voordat u verder gaat! Brooks Instrument ontwerpt, produceert en test haar producten zodanig dat ze voldoen aan vele nationale en internationale normen. Deze producten moeten correct worden geïnstalleerd, bediend en onderhouden zodat ze binnen hun normale specificaties blijven werken.
- Page 55 Olulised juhised Enne kasutamist lugege hoolikalt läbi! Brooks Instrument konstrueerib, valmistab ja katsetab oma tooteid selliselt, et need vastaksid paljudele riiklikele ja rahvusvahelistele standarditele. Ainult nõuetekohane paigaldamine, kasutamine ja hooldamine tagab toodete katkematu talitluse tavaspetsifikatsiooni raames. Brooks Instrumenti toodete paigaldamisel, kasutamisel ja hooldamisel tuleb täita alljärgnevaid juhiseid ja integreerida need asjakohasesse ohutusprogrammi.
- Page 56 PED direktiiviä koskevat määräykset löytyvät käyttöoppaan ’’Tekniset tiedot” -luvusta. Käyttöoppaassa kuvatut tuotteet ovat 2014/34/EU EU-direktiivin mukaisia. Kaikki Brooks Instrumentin virtausmittarit kuuluvat ryhmään 1. Laitteet, jotka ovat suurempia, kuin 25 mm tai 1 tuuma, ovat PED I, II, III kategorien mukaisia.
- Page 57 AVERTISSEMENT: n’utilisez pas cet instrument au-delà des spécifications énumérées dans le manuel d’utilisation. Le non-respect de cet avertissement peut entraîner de graves blessures et / ou endommager l’équipement. • Si vous ne comprenez pas l’une des instructions, prenez contact avec un représentant de Brooks Instrument pour obtenir des explications. •...
- Page 58 Wichtige Anweisungen Bitte zuerst lesen! Brooks Instrument entwickelt, produziert und testet seine Produkte derart, dass sie viele nationale und internationale Standar ds erfüllen. Nur bei korrektem Einbau sowie richtiger Bedienung und Wartung dieser Produkte ist ein Betrieb unter Einhaltung der Standardvorgaben sichergestellt.
- Page 59 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Greek Brooks Instrument Brooks Instrument. ’ Brooks Instrument. : (1) . (2) Brooks Instrument. (PED) 0,5 bar (g) 25 mm (PED). PED. 2014/34/EU. Brooks Instrument 25 mm PED.
- Page 60 üzemeltetni és karbantartani ahhoz, hogy mindenképpen a normál m ködési tartományuknak megfelel en üzemelhessenek. Az alábbi utasításokat be kell tartani, és be kell építeni a munkavédelmi programba a Brooks Instrument termékeinek telepítése, üzemeltetése és karbantartása során.
- Page 61 Direttiva europea relativa alla compatibilità elettromagnetica (EMC) Le apparecchiature (elettriche/elettroniche) Brooks Instrument dispongono del marchio CE ed hanno superato positivamente i test per i requisiti di compatibilità elettromagnetica (Direttiva EMC 2014/30/EU). In ogni caso bisogna prestare particolare attenzione alla scelta dei cavi di segnale utilizzati per le apparecchiature con marchio CE.
- Page 62 Lai nodrošin tu šo izstr d jumu turpm ku darb bu atbilstoši noteiktajiem parametriem, tie ir pareizi j uzst da, j lieto un j apkopj. Uzst dot, lietojot „Brooks Instrument” izstr d jumus un veicot to apkopi, ir j iev ro šie nor d jumi un j iek auj tie j su droš bas programm .
- Page 63 SP JIMAS: nenaudokite šio prietaiso viršydami instrukcijoje ir eksploatacijos vadove nurodytus techninius duomenis. Nesilaikydami šio sp jimo galite sunkiai susižeisti ir (arba) sugadinti rang . Jei nesuprantate koki nors nurodym , kreipkit s „Brooks Instrument“ atstov , kad paaiškint . Paisykite vis sp jim , persp jim ir nurodym , pažym t ant gaminio arba pateikt su juo.
- Page 64 Produkty o wielko ci 25 mm lub 1 cala lub mniejsze podlegaj zaleceniom „Uznanej Praktyki In ynierskiej” (SEP). Europejska dyrektywa dotycz ca kompatybilno ci elektromagnetycznej (EMC) Urz dzenia elektryczne / elektroniczne firmy Brooks Instrument posiadaj ce oznaczenie CE, przesz y pozytywnie testy pod k tem spe niania przez nich wymogów kompatybilno ci elektromagnetycznej (Dyrektywa EMC 2014/30/EU).
- Page 65 Ler antes de proceder! A Brooks Instrument projecta, fabrica e testa os seus produtos de forma a satisfazer numerosas normas nacionais e internacionais. Estes equipamentos devem ser instalados, utilizados e mantidos de forma adequada, e devem funcionar dentro da sua gama de utilização. As instruções seguintes devem ser, durante a instalação, uso e/ou manutenção dos equipamentos da Brooks Instrument, apreendidas e integradas no plano de...
- Page 66 În m sura în care indica iile c r ii ma inii nu sunt suficient de l muritoare, lua i leg tura cu reprezentantul Brooks Instrument pentru clarificarea problemei.
- Page 67 Pre íta pred inštaláciou! Brooks Instrument svoje výrobky projektuje, vyrába a testuje takým spôsobom, aby tieto vyhoveli domácim aj medzinárodným normám. Tieto zariadenia je potrebné predpísaným spôsobom inštalova , prevádzkova a udržiava , na zabezpe enie ich spo ahlivej a normálnej prevádzky v celom pracovnom rozsahu.
- Page 68 Pred servisom morate odstraniti tlak v obdelovalni liniji. e potrebujete rezervne dele, zagotovite, da usposobljeno osebje uporablja rezervne dele, ki jih je odobrila družba Brooks Instrument. Neodobreni deli in postopki lahko vplivajo na u inkovitost delovanja izdelka ali ogrozijo varno upravljanje postopka.
- Page 69 ¡Léalos primero! El Brooks Instrument proyecta, fabrica y prueba sus productos de manera que éstos respondan a numerosas normas nacionales e internacionales. Dichas instalaciones deben ser emplazadas, operadas y mantenidas adecuadamente, para que puedan marchar de todas formas en conformidad con el alcance normal de funcionamiento.
- Page 70 Läs detta innan du fortsätter! Brooks Instrument konstruerar, tillverkar och testar sina produkter med syfte att uppfylla alla nationella och internationella standarder. Dessa produkter måste installeras på rätt sätt, handhas och underhållas för att de skall fungera kontinuerligt enligt deras normala specifikation. De följande anvisningarna bör följas och integreras till Ert säkerhetsprogram varje gång när Brooks Instruments produkter installeras, handhas och underhålls.
- Page 71 Installation and Operation Manual X-CM-QmB-eng Part Number: 541B029AAG QmB Series IP40, IP66, IP66XP June, 2017 Quantim Patent Numbers as follows: Argentina ............AR026329B1, AR021594B1 Australia...............778137, 771345, 782183 China ..........ZL00817949.2, ZL02823425.1, 171140 Federation of Russia ........2272257, 2263284, 2277227 Germany ................... 40004270.3 Hong Kong................
- Page 72 BROOKS SERVICE AND SUPPORT Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support.
