Configuring a VCI channel

To configure a VCI channel click on the channel box that needs to be setup, this will open a new configuration window.

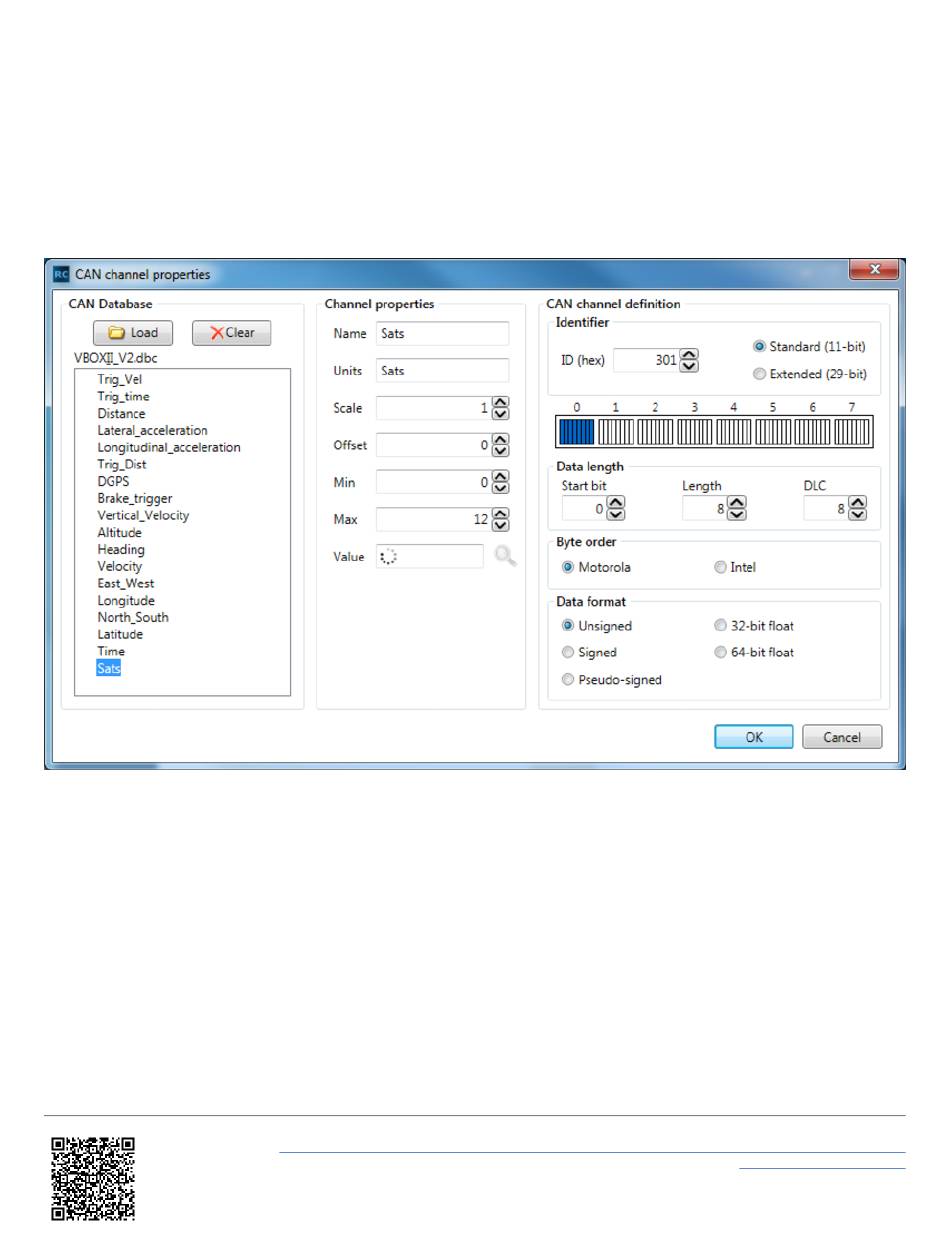

All CAN attributes for channel configuration can be manually configured from within this window, shown below.

Loading a CAN database file

Each of the 16 CAN channels can be configured from a CAN database file. From each channels setup window a CAN

database file can be loaded by clicking the 'Database' button. Clicking the 'Database' button allows a CAN database file

to be opened and then a signal from the Database can be selected. This will then automatically configure the channel

with the correct CAN settings.

DATA Base format types

• .VCI - Racelogic CAN database file

• .REF - Racelogic Encrypted database file

• .DBC - Database file
