1 Notes on use
6
1.4

General structure of the operating menu

The operating menu is made up of two levels:
• Function groups (00, 01, ... , 0C, 0D):
The individual operating Selection of the instrument are split up roughly into different
function groups. The function groups that are available include, e.g.: "basic setup",
"safety settings", "output", "display", etc.
• Functions (001, 002, 003, ..., 0D8, 0D9):
Each function group consists of one or more functions. The functions perform the
actual operation or parameterisation of the instrument. Numerical values can be ente-
red here and parameters can be selected and saved. The available functions of the
"basic setup (00)" function group include, e.g.: "tank shape (002)", "medium
property (003)", "process cond. (004)", "empty calibr. (005)", etc.
If, for example, the application of the instrument is to be changed, carry out the following
procedure:
1. Select the "basic setup (00)" function group.
2. Select the "tank properties" (002) (where the existing tank properties is selected).
Identifying the functions
1.4.1

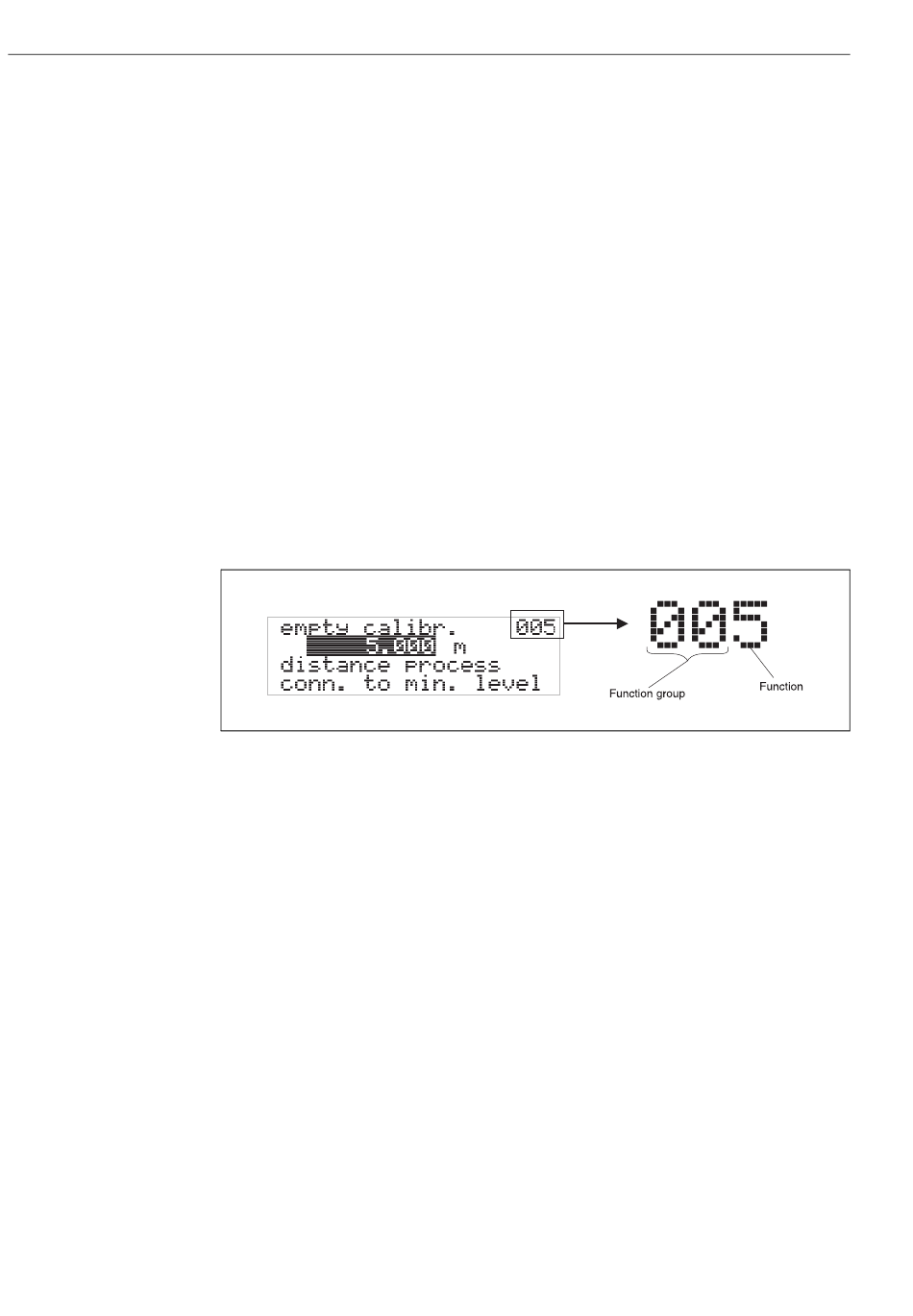

For simple orientation within the function menus (see Page 11 ff.), for each function a
position is shown on the display.
The first two digits identify the function group:
• basic setup
00
• safety settings
01
• lenght adjustment 02
...
he third digit numbers the individual functions within the function group:
• basic setup
00
Hereafter the position is always given in brackets (e.g. "tank properties" (002)) after the
described function.
→ • tank properties
• medium property 003
• process cond.
...
Levelflex M
002
