6 Function group "linearisation" (04)
⇒
⇒
⇒
40
6.6

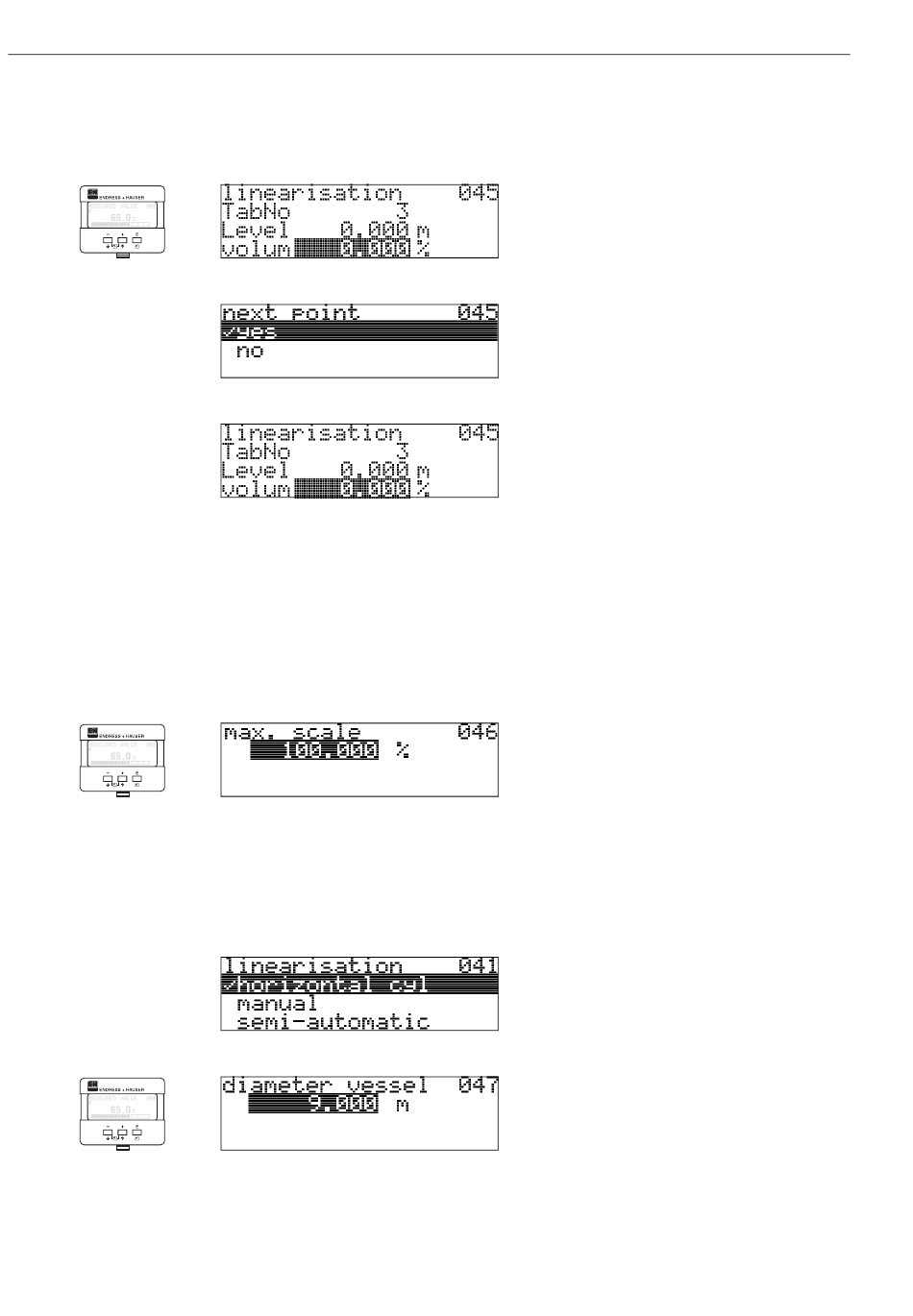

Function "input volume" (045)

⇓
⇓
⇓
⇓
Specify the volume for each point of the linearisation curve with this function.
User input:
Volume in "customer unit" (042).
6.7

Function "max. scale" (046)

You can enter the end value of the measuring range with this function. This input is
necessary if you selected "linear" or "horizontal cyl" in the "linearisation" (041)
function.
6.8

Function "diameter vessel" (047)

⇓
Enter the tank diameter with this function. This entry is necessary if you selected
"horizontal cyl" in the "linearisation" (041) function.
