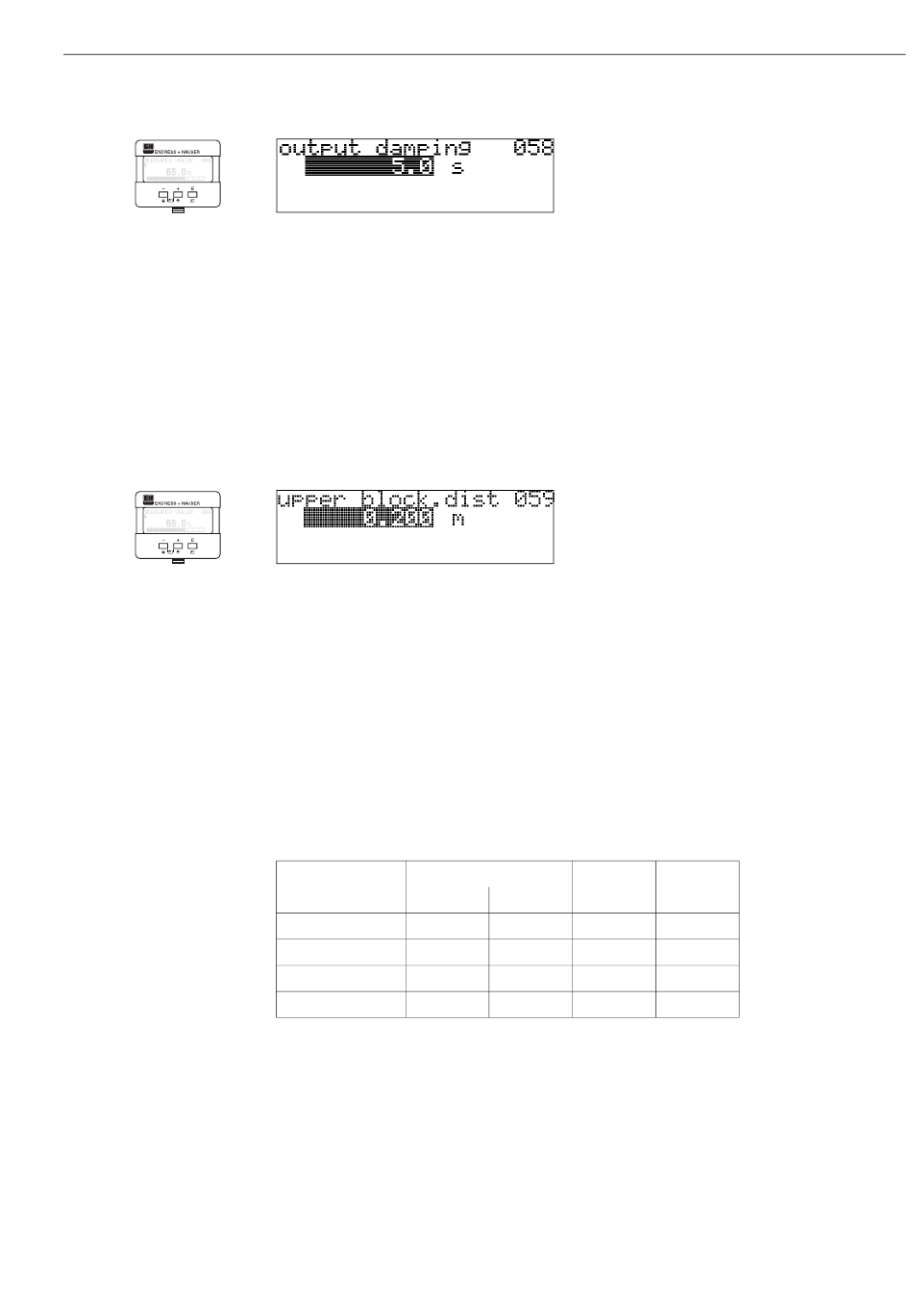

Function "output damping" (058)

Influences the time an output requires to react to a sudden level jump (63% of steady
state). A high value attenuates, for example, the influences of rapid changes on the
measured variable.
User input:
0...255 s
The default value depends on the selected application parameter
"process cond." (004).

7.10 Funktion "upper block.dist" (059)

A window under the process connection can be suppressed when there are strong
reflections near the process connection or nearby internals, long nozzles or struts.
• The blocking distance is measured from the bottom edge of the process connection.
The standard top blocking distance is 200 mm (coax 0 mm).
• All echos are suppressed within this blocking distance.
• As the level echo could possibly be suppressed (and there is no guarantee that no
other significant echo is available), a 10 cm long safety distance is placed in front of
the blocking distance (see "safety distance" (015) function on page 28).
• The customer can set the Levelflex to respond to circumstances when the product is
within this zone (safety distance) (see page 28).
Blocking distance and measuring range for DC ≥ 1.6 (1.4 for coaxial and rod
probes with installation in metallic pipes ≤ DN 150):
FMP 40
min
Rope probe 1/40
6 mm rod probe 0,3/12
16 mm rod probe 0,3/12
0,3/12
Coax probe
a. Larger measuring range available on request.
b. The indicated blocking distances are prearised. At media with DC >7, the
upper blocking distance UB can be reduced for rod- and rope probes on
0.1m. The upper blocking distance UB can be entered manually.
c. At DC >7, the lower blocking distance LB increases to 0.07 m for rod pro-
bes.
7 Function group "extended calibr." (05)
LN [m]/" UB [m]/"
max min
a) b)
35/1378 0,2/8
2/80 0,2/8
4/178 0,2/8
4/178 0/0
LB [m]/"
min
0,25/10
c)
0,05/2
3)
0,05/2
0,05/2
