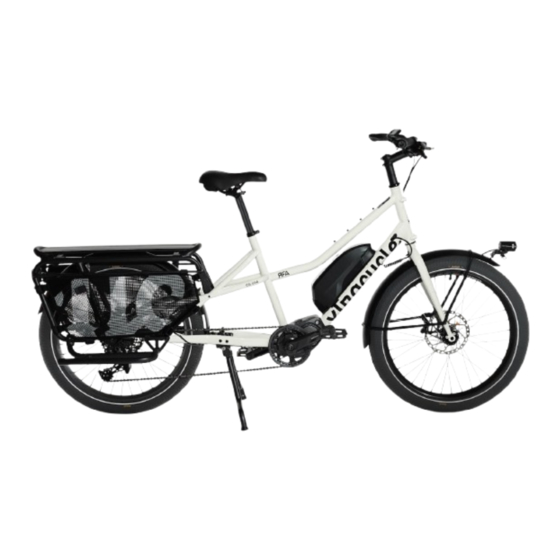

Xtracycle RFA 2021 Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
RFA assembly Manual 2021

Advertisement

loading

Related Manuals for Xtracycle RFA 2021

Summary of Contents for Xtracycle RFA 2021

  • Page 1 RFA assembly Manual 2021...

  • Page 2: Tools Needed

    Assembling the xtracycle rfa Tools needed 01 - Open the bike box 3 mm Allen wrench Look over the box for signs of shipping damage. If damage 4 mm Allen wrench is present, please take pictures in case a shipping damage 5 mm Allen wrench report needs to be filed.
  • Page 3 Open the box. Inspect the contents and look again for any signs of shipping damage. Remove the small parts box, the RFA KickBack and the seat Cut the string attaching the rear of the bike to the end of the post and set these aside.

  • Page 4: Install The Front Wheel

    Remove all of the packaging from the seat post and saddle. Remove the bike from the box and secure it in your bike With the bike still in the box, install the seat post into the stand. frame. Use a 5 mm Allen wrench to tighten the seat post clamp and secure the seat post in place.
  • Page 5 Remove the front axle from the front fork. Install the front wheel onto the fork. Make sure the rotor rests in between the brake pads. Reinstall the front axle using the M6 Allen wrench. 14 - Install the RFA KickBack Bring the KickBack up and under the RFA.
  • Page 6 Place two washers on one of the M8 bolts. Starting on the The reason for starting this off with just your fingers is to inside of the mounting plate and using just your fingers, insure that you do not cross thread the bolt since you may be thread the bolt with the washers to the front boss until you coming at it from a not ideal angle.
  • Page 7 Using the ball end of the Allen wrench, tighten the two rear Using the shorter end of the Allen wrench, tightly secure all bolts. bolts in place. The RFA KickBack installation is now complete. 22 - Adjust the front light To adjust the front light, first rotate the light so that it is front Tighten the pivot bolts and secure the M6 bolt on the fender facing.
  • Page 8 24 - Adjust the stem and handlebars You will now be adjusting the front stem and handlebars. Once the handlebars are straight, tighten down the stem bolts to 4-6 Nm. Loosen the stem bolts and rotate the stem to a forward facing position.

  • Page 9: Install The Pedals

    28 - Connect the cycling computer Place the wire hanging off the front of the handlebars into You will hear a click when the wire has been attached the Shimano Cable Tool TL-EW300 which is located in the completely. small parts box. Holding the cable tool, connect the wire into the handlebar computer.
  • Page 10 32 - Install the RFA FootRests Pick the RFA FootRest that corresponds to the side of the Using a 4mm Allen wrench, remove the top of the clamp bike you are installing it on. The flat plate is installed on the located on the back end of the FootRest.
  • Page 11 Position the FootRest on the bike and loosely thread the two Attach the top portion of the rear clamp, securing the rear 8 mm bolts through the front mounting plate and into the portion of the FootRest to the bottom bar of the RearRack. threads on the frame.
  • Page 12 The installation of the RFA FootRests are now complete. Reattach the RFA WheelSkirts. The RFA assembly is complete. Looking to install additional accessories? Please refer to the following page on the Xtracycle wesbite for links to additional installation manuals: https://www.xtracycle.com/product-manuals/...
