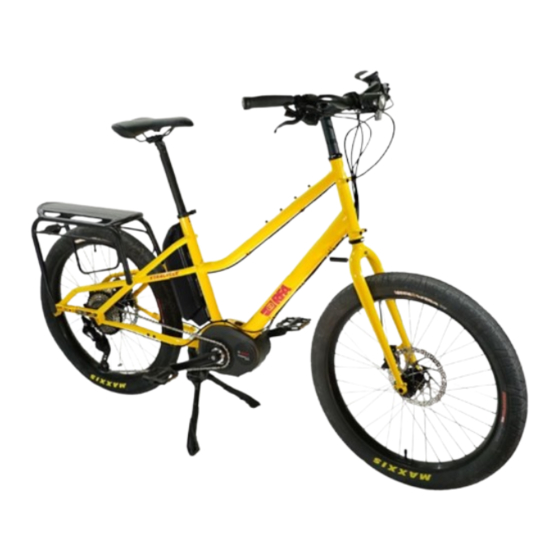

- Page 1 R F A S p o r t A s s e m b l y G u i d e...
- Page 2 This guide is designed to help you assemble an Xtracycle RFA in Sport mode as efficiently as possible. Please follow the assembly instructions in order. While thorough, this guide is not exhaustive–you should already be familiar with all component installation and adjustment procedures.
- Page 3 Unboxing the RFA Unboxing the RFA • Open box • Open small parts box and set aside • Cut zip ties holding the fork to the frame and remove • Remove seat post from fit kit • Remove small parts box •...
-
Page 4: Installing The Fork
Installing the Fork • Locate the headset in the small parts box • The larger of the two headset bearing retainers goes on • Slide dust seal onto front fork crown race the crown race, and the smaller goes on the top bearing cup •... - Page 5 Assembling Headset and Installing Stem, Handlebar & Headlight • Stack top race, split race lock then FSA top cover • Build up the headset stack using the spacers • Install stem and top cap with M6 bolt and tighten until you’ve removed all end play in the headset •...
- Page 6 Installing Purion Display and Handlebar Stabilizer • Mount Purion display to the left side of the handlebars, • Be sure to position the display so it is visible from the right of the brake lever seated position • Secure with a 3mm allen wrench •...
- Page 7 Installing the Front Wheel, Brakes, Cranks and Pedals • Remove thru-axle from fork dropouts, discard cardboard tube • Install front brake assembly (refer to the Shimano brake • Position the wheel in the fork and reseat the axle owner’s manual for propper setup and installation) •...
-
Page 8: Mounting The Speed Sensor
Mounting the Speed Sensor • Remove rear wheel • Remount rear wheel • Mount the speed sensor to frame in the forward position • Position sensor magnet on spoke opposite air valve and with a T-30 star bit (Note: the forward position is for Sport align with the sensor mode only) •... - Page 9 Installing the Rear Wheel Chain • Locate the chain in the small parts box • Feed chain through the derailleur • Remove 11 links from chain (Note: each pin is a link) • Reconnect the chain with the quick link •...
- Page 10 Installing the Sport Rack and Tail Light • Align the front of the rack with the forward rack mounting • Lower the rear of the rack in line with the rear mounting position where the rear cross braces meet points and thread the bolts through the lower slotted holes •...
