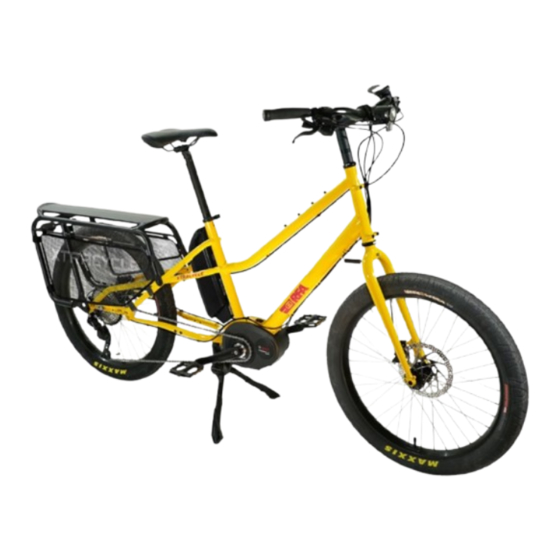

Xtracycle RFA Utility Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
R F A U t i l i t y A s s e m b l y G u i d e

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFA Utility and is the answer not in the manual?

Questions and answers

Related Manuals for Xtracycle RFA Utility

Summary of Contents for Xtracycle RFA Utility

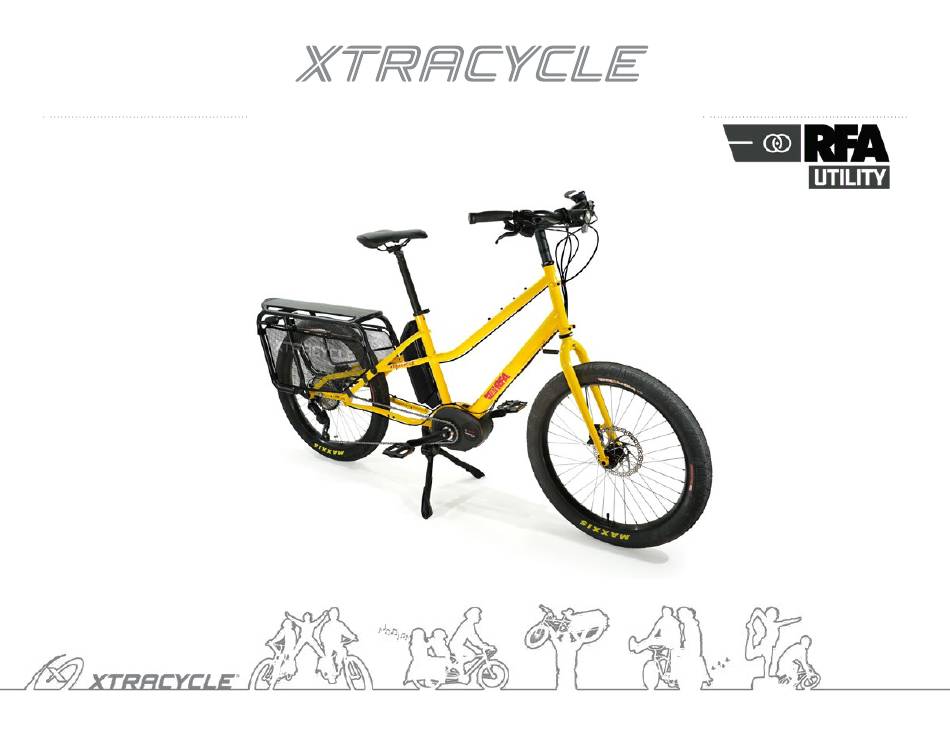

  • Page 1 R F A U t i l i t y A s s e m b l y G u i d e...
  • Page 2 This guide is designed to help you assemble an Xtracycle RFA in Utility mode as efficiently as possible. Please follow the assembly instructions in order. While thorough, this guide is not exhaustive–you should already be familiar with all component installation and adjustment procedures.
  • Page 3 Unboxing the RFA Unboxing the RFA • Open box • Open small parts box and set aside • Cut zip ties holding the fork to the frame and remove • Remove seat post from fit kit • Remove small parts box •...

  • Page 4: Installing The Fork

    Installing the Fork • Locate the headset in the small parts box • The larger of the two headset bearing retainers goes on • Slide dust seal onto front fork crown race the crown race, and the smaller goes on the top bearing cup •...
  • Page 5 Assembling Headset and Installing Stem, Handlebar & Headlight • Stack top race, split race lock then FSA top cover • Build up the headset stack using the spacers • Install stem and top cap with M6 bolt and tighten until you’ve removed all end play in the headset •...
  • Page 6 Installing Purion Display and Handlebar Stabilizer • Mount Purion display to the left side of the handlebars, • Be sure to position the display so it is visible from the right of the brake lever seated position • Secure with a 3mm allen wrench •...
  • Page 7 Installing the Front Wheel, Brakes, Cranks and Pedals • Remove thru-axle from fork dropouts, discard cardboard tube • Install front brake assembly (refer to the Shimano brake • Position the wheel in the fork and reseat the axle owner’s manual for propper setup and installation) •...
  • Page 8 Moving the Rear Wheel • Remove rear wheel • Move the insert to the rear dropout mount position, drawing • Remove three bolts holding the dynamic dropout insert any needed cable from further forward on the frame and locking plate and be mindful of the bolt positions •...

  • Page 9: Mounting The Speed Sensor

    Mounting the Speed Sensor • Locate the speed sensor post, washer and M5x20mm bolt • Remove the cap to the speed sensor and position it on in the small parts box and mount to frame in the rear the speed sensor post position on the non-drive side with a 4mm Allen key •...
  • Page 10 Installing the Rear Wheel Chain • Locate the chain in the small parts box • Reconnect the chain with the quick link • Feed chain through the derailleur • Engage the clutch...
  • Page 11 Installing the Utility Rack and Tail Light • Align the front of the rack with the forward rack mounting • Lower the rear of the rack in line with the rear mounting position where the rear cross braces meet points and thread the bolts through the lower slotted holes •...
  • Page 12 Installing RFA WheelSkirts • Locate the correct side WheelSkirt for the side of the rack • Wrap the left, right and diagonal hook-and-loop straps to you are attaching the sides of the rack • Start by wrapping the upper hook-and-loop straps to the •...
