UM1912
BlueNRG-MS
Signal
BlueNRG-MS_CSn
BlueNRG-MS_SCLK
Refer to the schematic diagrams for details.
For the optional connections, modify the firmware for the correct use of the STM32
resources to be used.
2.3

Current measurement

To monitor the power consumption of the BlueNRG-MS X-NUCLEO-IDB05A1 board, insert
an ammeter probe between pins 1 and 2 of the jumper on the J1 connector. Since the
power consumption of BlueNRG-MS is very low during most of its operating time, an
accurate instrument in the range of a few µA may be required.
2.4

X-NUCLEO-IDB05A1 component placement

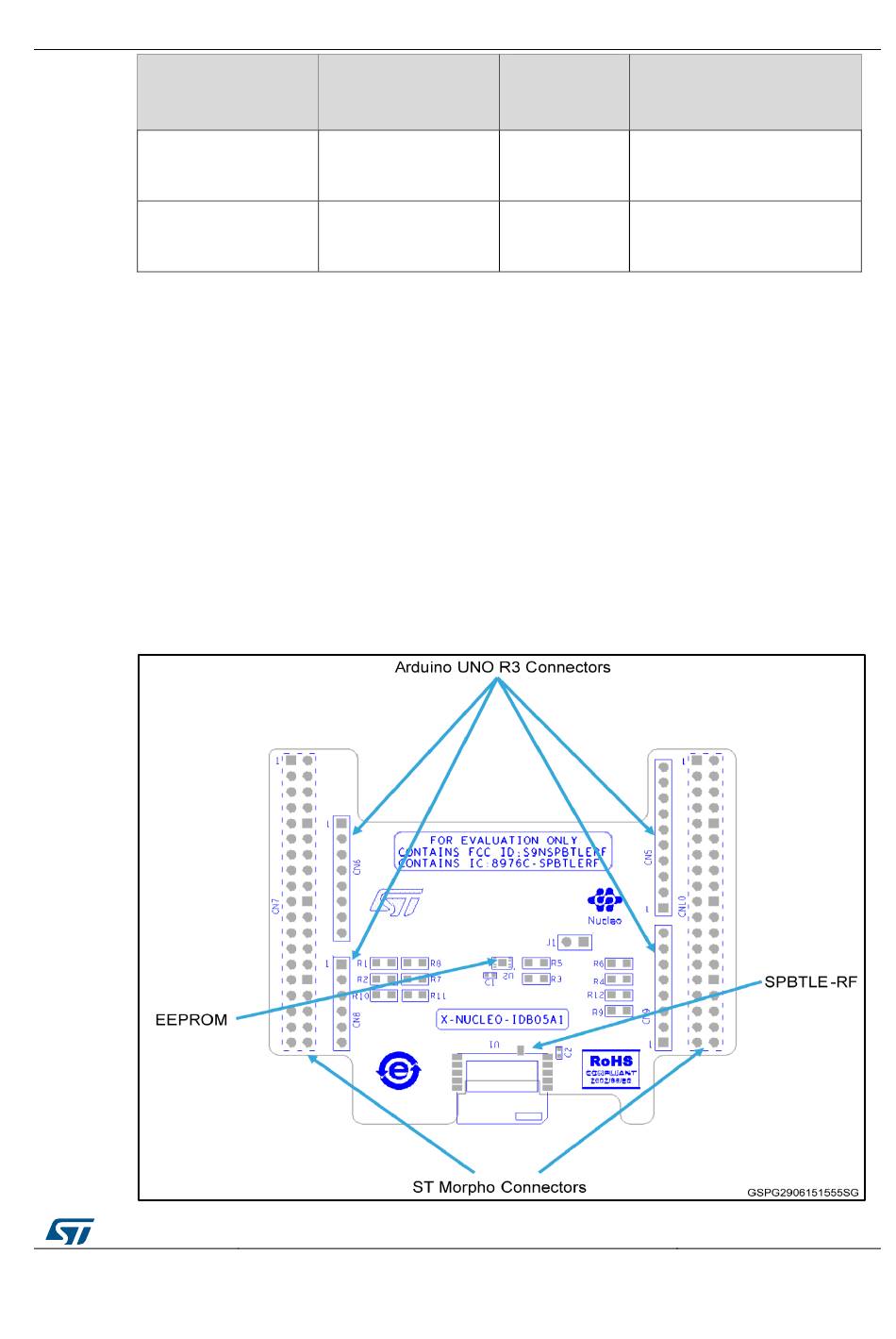

The following diagram shows the component placement on the X-NUCLEO-IDB05A1
board.
SPBTLE-RF
Pin
10 – SPI_CS
7 – SPI_CLK
Figure 3: X-NUCLEO-IDB05A1 component placement details
DocID028033 Rev 1
Default
STM32
port
PB6
PA1
To use optional connection
mount R7, demount R2
PA5
PB3
To use optional connection
mount R6, demount R4
Hardware description
Optional STM32
port
7/16
