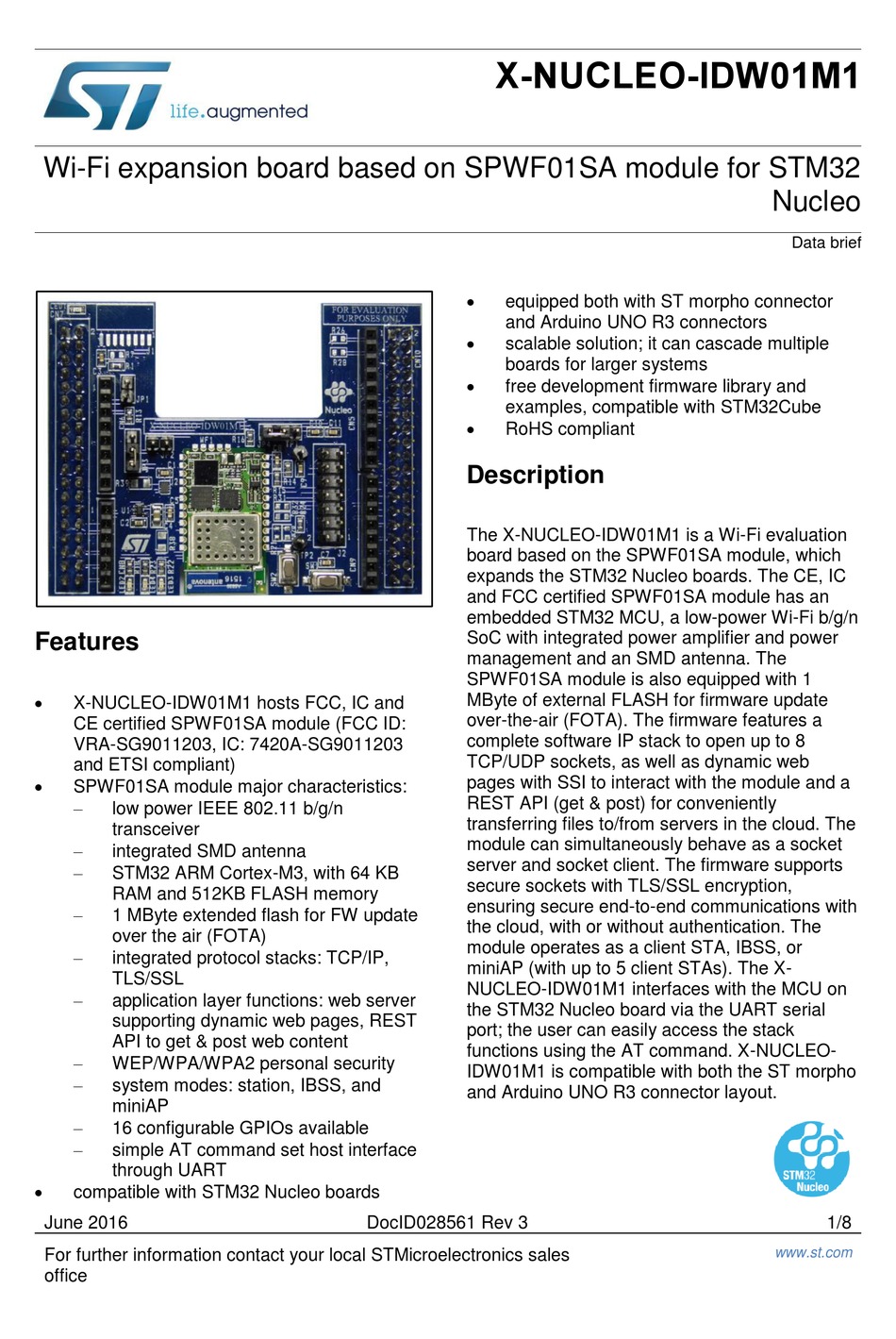

ST X-NUCLEO-IDW01M1 Quick Start Manual

Wi-Fi expansion board based on SPWF01SA module for STM32
Features

X-NUCLEO-IDW01M1 hosts FCC, IC and
CE certified SPWF01SA module (FCC ID:
VRA-SG9011203, IC: 7420A-SG9011203
and ETSI compliant)

SPWF01SA module major characteristics:

low power IEEE 802.11 b/g/n
transceiver

integrated SMD antenna

STM32 ARM Cortex-M3, with 64 KB
RAM and 512KB FLASH memory

1 MByte extended flash for FW update
over the air (FOTA)

integrated protocol stacks: TCP/IP,
TLS/SSL

application layer functions: web server
supporting dynamic web pages, REST
API to get & post web content

WEP/WPA/WPA2 personal security

system modes: station, IBSS, and
miniAP

16 configurable GPIOs available

simple AT command set host interface
through UART

compatible with STM32 Nucleo boards
June 2016
For further information contact your local STMicroelectronics sales
office
X-NUCLEO-IDW01M1

equipped both with ST morpho connector
and Arduino UNO R3 connectors

scalable solution; it can cascade multiple
boards for larger systems

free development firmware library and
examples, compatible with STM32Cube

RoHS compliant
Description
The X-NUCLEO-IDW01M1 is a Wi-Fi evaluation
board based on the SPWF01SA module, which
expands the STM32 Nucleo boards. The CE, IC
and FCC certified SPWF01SA module has an
embedded STM32 MCU, a low-power Wi-Fi b/g/n
SoC with integrated power amplifier and power
management and an SMD antenna. The
SPWF01SA module is also equipped with 1
MByte of external FLASH for firmware update
over-the-air (FOTA). The firmware features a
complete software IP stack to open up to 8
TCP/UDP sockets, as well as dynamic web
pages with SSI to interact with the module and a
REST API (get & post) for conveniently
transferring files to/from servers in the cloud. The
module can simultaneously behave as a socket
server and socket client. The firmware supports
secure sockets with TLS/SSL encryption,
ensuring secure end-to-end communications with
the cloud, with or without authentication. The
module operates as a client STA, IBSS, or
miniAP (with up to 5 client STAs). The X-
NUCLEO-IDW01M1 interfaces with the MCU on
the STM32 Nucleo board via the UART serial
port; the user can easily access the stack
functions using the AT command. X-NUCLEO-
IDW01M1 is compatible with both the ST morpho
and Arduino UNO R3 connector layout.
