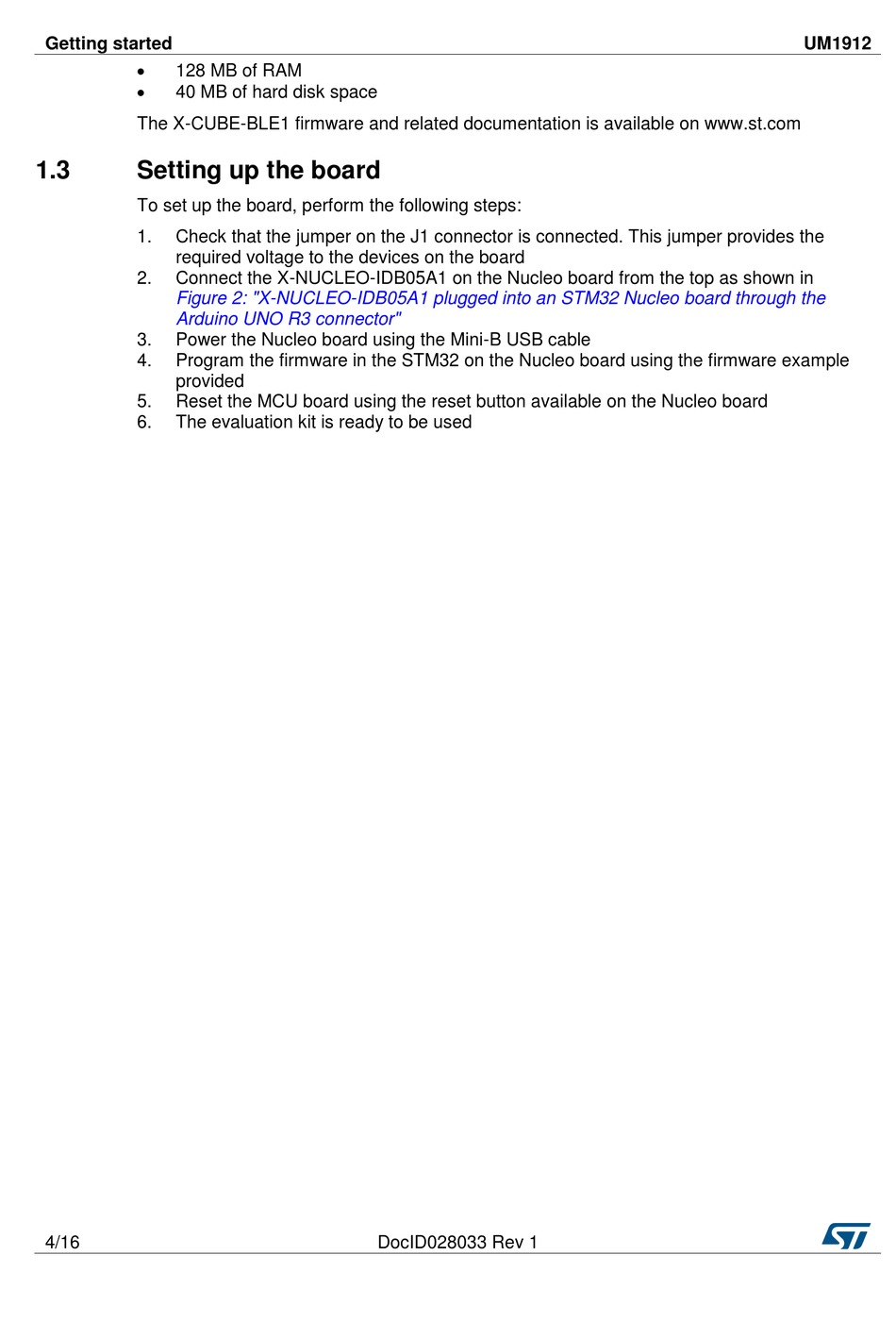

Getting started

128 MB of RAM

40 MB of hard disk space
The X-CUBE-BLE1 firmware and related documentation is available on www.st.com
1.3

Setting up the board

To set up the board, perform the following steps:
1. Check that the jumper on the J1 connector is connected. This jumper provides the
required voltage to the devices on the board
2. Connect the X-NUCLEO-IDB05A1 on the Nucleo board from the top as shown in
Figure 2: "X-NUCLEO-IDB05A1 plugged into an STM32 Nucleo board through the
Arduino UNO R3 connector"
3. Power the Nucleo board using the Mini-B USB cable
4. Program the firmware in the STM32 on the Nucleo board using the firmware example
provided
5. Reset the MCU board using the reset button available on the Nucleo board
6. The evaluation kit is ready to be used
4/16 DocID028033 Rev 1
UM1912
