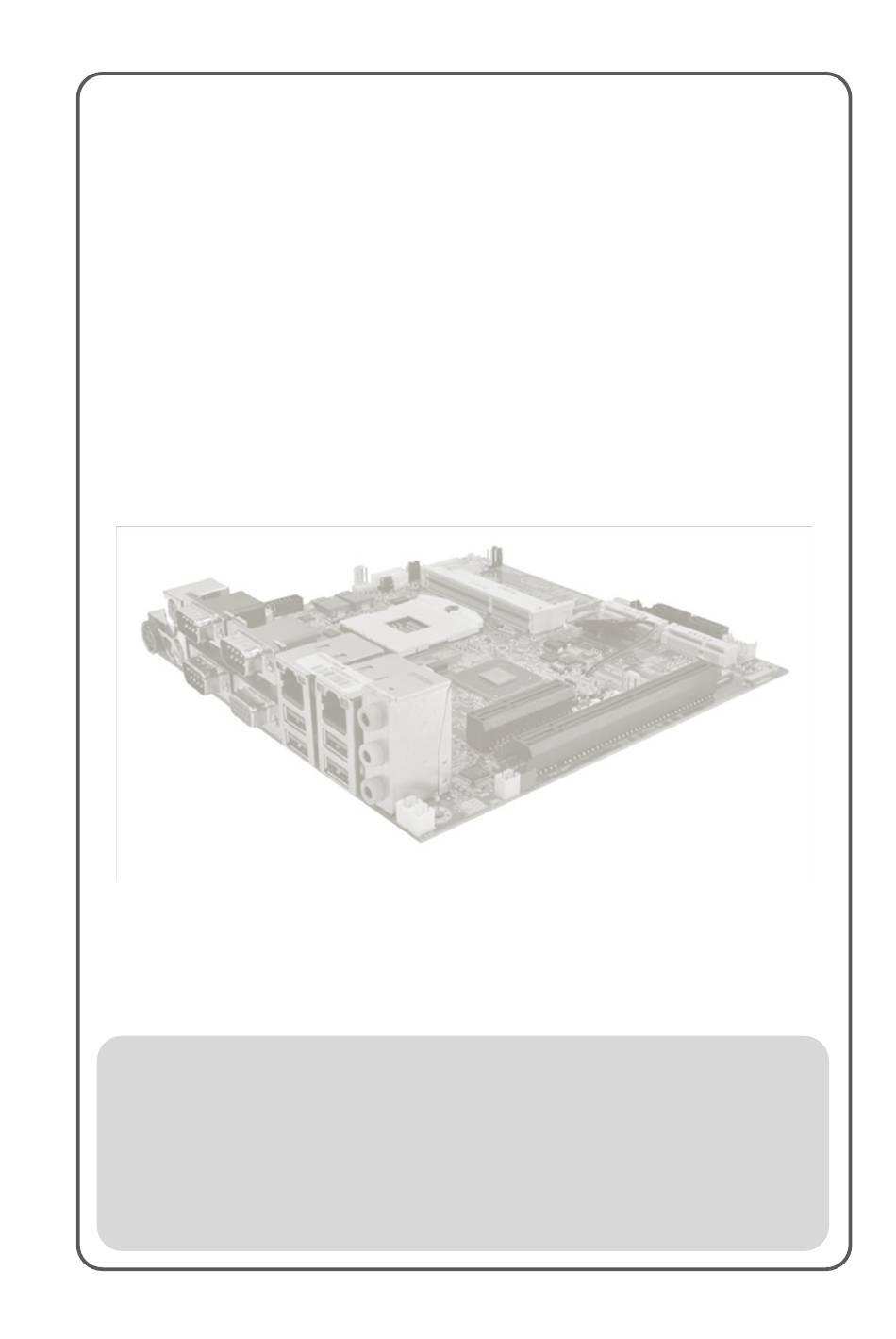

- Page 1 IV70 Motherboard Mini ITX SBC with Intel ® 3rd Generation Core™ i7/i5 Processors HDMI, LVDS, VGA, Dual Giga Ethernet, 4 x USB3.0, PCle x16 V130 User Manual Version 1.4 91711110100P...
-
Page 2: Table Of Contents
USER MANUAL CONTENTS CONTENTS PREFACE ..............................IV ABOUT THIS USER MANUAL ........................VIII CHAPTER 1: GENERAL INFORMATION ....................... 2 1.1 I ............................2 NTRODUCTION 1.2 F ..............................2 EATURES 1.3 M ........................3 OTHERBOARD PECIFICATIONS 1.4 F ........................... 5 UNCTIONAL ESCRIPTION 1.5 P .......................... - Page 3 USER MANUAL CONTENTS CHAPTER 4: AMI BIOS SETUP ........................56 4.1 W BIOS S ......................56 HEN AND OW TO ETUP 4.2 BIOS F ............................ 58 UNCTIONS 4.2.1 Main Menu ..........................58 4.2.2 Advanced Settings ........................59 4.2.3 Chipset Setting ..........................85 4.2.4 Boot .............................
-
Page 4: Preface
USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 5 Before using this Motherboard, please make sure that all the items listed below are present in your package: IV70-130 Motherboard User Manual & Driver CD If any of these items are missing or damaged, contact your distributor or sales representative immediately.
- Page 6 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 7 USER MANUAL PREFACE Safety Precautions CAUTION Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.
-
Page 8: About This User Manual
USER MANUAL ABOUT THIS USER MANUAL ABOUT THIS USER MANUAL This User Manual provides information about using the IV70 Motherboard. The documentation set for the IV70 Motherboard provides information for specific user needs, and includes: IV70 Motherboard User Manual – contains detailed description on how to use the motherboard, its components and features. - Page 9 USER MANUAL CHAPTER 1 GENERAL INFORMATION GENERAL INFORMATION This chapter includes the IV70 Motherboard background information.
-
Page 10: Chapter 1: General Information
USER MANUAL CHAPTER 1 GENERAL INFORMATION CHAPTER 1: GENERAL INFORMATION This chapter includes the IV70 Motherboard background information. 1.1 Introduction Thank you for choosing the IV70 Motherboard. The IV70 Motherboard is powered by Intel® HM76 chipset which designed with Intel’s mobile platform. Intel® HM76 platform delivers the performance and high scalability cutting-edge embedded computing application. -
Page 11: Motherboard Specifications
USER MANUAL CHAPTER 1 GENERAL INFORMATION 1.3 Motherboard Specifications Socket G2 (PGA988B) Intel® Core™ i3-3120M/ i5-3230M/ i7-3520M System Memory Two DDR3 1333/1600MHz SO-DIMM ( max. 16GB ) Chipset Intel® 7 series Chipset HM76(QM77 optional) System Specifications BIOS AMI UEFI BIOS Super IO Chipset FINTEK F81865 Audio... - Page 12 USER MANUAL CHAPTER 1 GENERAL INFORMATION 1 x 10-pin wafer for Front Panel(2x5) 2 x 2-pin wafer for +5V external power (Red) 1 x 2-pin wafer for 12V external power (Yellow) 1 x 3-pin pin-header for CPU Fan (smart fan) 1 x Mini PCIe Slot (for mSATA SSD, Support SATA 3.0) 1 x Mini PCIe Slot (for Full size module) Expansions Slot...
-
Page 13: Functional Description
USER MANUAL CHAPTER 1 GENERAL INFORMATION 1.4 Functional Description Function block (V130) -
Page 14: Physical Description
USER MANUAL CHAPTER 1 GENERAL INFORMATION 1.5 Physical Description Board Dimensions (V130) - Page 15 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION HARDWARE INSTALLATION This chapter provides information on how to use jumpers and connectors on the IV70 motherboard.
-
Page 16: Chapter 2: Hardware Installation
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CHAPTER 2: HARDWARE INSTALLATION This chapter provides information on how to use jumpers and connectors on the IV70 Motherboard. Be cautious while working with these modules. Carefully read the content of this chapter in order to avoid any damages. 2.1 Motherboard Components 2.1.1 Front Side... -
Page 17: I/O Side
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.1.2 I/O Side... -
Page 18: Memory Module (So-Dimm) Installation
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.2 Memory Module (SO-DIMM) Installation The IV70 SBC Motherboard has two 204-pin SODIMM slot. The socket supports up to 8GB DDR3L 1333/1600 SDRAM. When installing the memory unit, please follow the steps below: 1. Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. Align the SO-DIMM with the slot until it is fully inserted. -
Page 19: I/O Equipment Installation
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3 I/O Equipment Installation 2.3.1 12V DC-IN The Motherboard allows plugging 12V DC-IN DIN-4 connector on the board without another power module converter under power consumption by Intel Socket G2 processor in HM76 with Intel® 7 series chipset. *Without power/reset OSD, short circuit pin 5 and 6 together to boot up the motherboard (Front Panel Connector). -
Page 20: Usb Port
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.6 USB Port Eight USB devices (four with pin headers) may be connected to the system though an adapter cable. Various adapters may come with USB ports. USB usually connect the external system to the system. The USB ports support hot plug-in connection. -
Page 21: Jumper List
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.1 Jumper List Label Function Note RSS232 / RS422 / RS485 3x4 header , pitch 2.0mm Selector RS232 / RS422 / RS485 2x3 header , pitch 2.0mm Selector Clear CMOS 3x1 header , pitch 2.0mm VR/Software 3x1 header , pitch 2.0mm PWM/DA... - Page 22 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION JP5: Clear CMOS Remember to set jumper back to Normal before turning on the power supply. CAUTION TURN OFF the power supply before setting Clear CMOS. Pin № Function Clear CMOS 2-3 (Default) Normal JP6: Brightness Control (VR/Software) Pin №...
- Page 23 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION JP8: Back Light PWR Pin № Function +12V JP9: PWM Level Pin № Function +3.3V JP10: LCD Panel Voltage Select JP10 can be configured to operate in 3.3Volts / 5Volts / 12Volts mode. Pin № Name 1-2* +3.3V...
-
Page 24: Connectors And Pin Assignment
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.2 Connectors and Pin Assignment Label Function Note ATX12V ATX12V DC Connector 2x2 wafer, pitch 4.2mm 12V Output 1x2 wafer, pitch 2.0mm Digital I/O 10 pin Digital I/O function 5V Output 1x2 wafer, pitch 2.0mm 5V Output 1x2 wafer, pitch 2.0mm CN13... - Page 25 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION ATX_PWR / Input: 12V DC Connector Pin № Signal Name Ground Ground +12V +12V CN6: 12V Output Pin № Signal Name +12V CN7: Digital I/O Connector Pin № Pin № Signal Name Signal Name Out3 Out1 Out0...
- Page 26 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CN10: Mini PCIe Pin № Pin № Signal Name Signal Name PCIE_WAKE# +V3.3V_MINIPCIE1 +V1.5S CLK_SLOT4_OE# VREG_USIM CLK_PCIE_SLOT4_N CLK_PCIE_SLOT4_P WLAN-RFON2 BUF_PLT_RST2# PCIE_RXN3_SLOT4 +V3.3A PCIE_RXP3_SLOT4 +V1.5S SMB_CLK PCIE_TXN3_SLOT4 SMB_DATA PCIE_TXP3_SLOT4 USB_PN5 USB_PP5 +3.3V_MINIPCIE1 +3.3V_MINIPCIE1 +V3.3_MINIPCIE1...
- Page 27 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CN13: PCIE x 4 *PCI Express x 4 standard CN17: VR Control Pin № Signal Name VCC(5V) Black Light Control CN18/ CN19: Mini PCIe 3G/Wi-Fi...
- Page 28 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION Pin № Pin № Signal Name Signal Name PCIE_WAKE# +3.3V BT_EN +1.5V CLK_OE# USIM_PWR USIM_DATA PCIE_CLKM USIM_CLOCK PCIE_CLKP USIM_RESET USIM_VPP Wireless_ENABLE PCIE_RESET PCIE_RXM +3.3V PCIE_RXP +1.5V SMB_CLK PCIE_TXM SMB_DATA PCIE_TXP USB_D- USB_D+ +3.3V +3.3V +1.5V +3.3V +3.3V...
- Page 29 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION COM2/ COM5/COM6: Serial port The serial port which is Winbond I/O support is RS232 only. Pin № Pin № Signal Signal Name Name NDCD1A NDSR1A NRXD1A NRTS1A NTXD1A NCTS1A NDTR1A NRI1A...
- Page 30 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CON1: LVDS Connector Pin № Pin № Signal Name Signal Name LCDVDD LVDS0_TX0_N LCDVDD LVDS0_TX0_P LCDVDD LVDS0_TX1_N LVDS0_TX1_P LVDS0_TX2_N LVDS0_TX2_P LVDS0_CLK_N LVDS0_CLK_P LVDS0_TX3_N LVDS0_TX3_P LVDS1_TX0_N LVDS1_TX0_P LVDS1_TX1_N LVDS1_TX1_P LVDS1_TX2_N LVDS1_TX2_P LVDS1_CLK_N LVDS1_CLK_P LVDS1_TX3_N LVDS1_TX3_P...
- Page 31 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CPU_FAN1 / NB_FAN1: FAN Connectors FAN1_NB FAN2_CPU HDD PWR: 5V/ 12V External Power J1/J2: Front Audio...
- Page 32 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION AUDIO1: Audio Jack (Pin-header) Color Signal Blue Line In Green Line Out Pink Microphone Pin-Header C0~C4 Mic In B1~B4 Line Out A1~A4 Line In MIC (J3) Line Out Line In Pin № Pin № Pin №...
- Page 33 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION J7: HDMI Connector Pin № Pin № Signal Name Signal Name TMDS0- TMDS0+ DDC_CLK DDC_DATA TMDS1- TMDS1+ TMDS2- TMDS2+ CLK+ CLK- HPD1 HDMI_EXT_5V HDMI _EXT_5V LPT1: Parallel Port Pin № Pin № Signal Name Signal Name LPT_STB# LPT_PD0...
- Page 34 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION PANEL1: Front Panel System Function Connector *Without power/reset OSD, short circuit pin 5 and 6 together to boot up the motherboard. Pin № Pin № Signal Name Signal Name PW_LED+ HD_LED+ PW_LED- HD_LED- PW_BT1 RT_BT1 PW_BT2 RT_BT2...
- Page 35 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION DIMM1 / DIMM2: DDR3L Connector USB1/2: USB PIN HEADER Pin № Pin № Signal Name Signal Name USB_DATA0- USB_DATA1- USB_DATA0+ USB_DATA1+...
-
Page 36: I/O Side
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.3 I/O Side Label Function Note AUDIO Line In/Line Out/Mic COM1 Serial port D-Sub 9 (RS232/422/485) COM2/ COM4 Serial port D-Sub 9 (RS232/422/485) 12V DC Input 12V DC INPUT DIN-4P LAN1, LAN2 Gigabit Ethernet RJ45+LED PS/2 Mouse/Keyboard... - Page 37 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.3.3 COM2, COM4: Serial port (232) Pin № Pin № Signal Name Signal Name 2.3.3.4 12V DC Input: 12V DC INPUT Pin № Pin № Signal Name Signal Name +12V *Note: Pin 3 is not visible for use 2.3.3.5 LAN1, LAN2: Gigabit Ethernet Pin №...
- Page 38 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION PS/2 Keyboard PS/2 Mouse Pin № Pin № Signal Name Signal Name KDATA MDATA Ground Ground VCC (5V) VCC (5V) KBCLK MSCLK 2.3.3.7 USB: USB 3.0 Pin № Signal Name Pin № Signal Name USB_D- USB_D+ STDA_SSRX-...
- Page 39 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION ID0/RES ID1/SDA HSync VSync ID3/SCL...
- Page 40 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION DRIVER INSTALLATION This chapter contains driver installation instructions for IV70 motherboard.
-
Page 41: Chapter 3: Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION CHAPTER 3: DRIVER INSTALLATION This chapter contains driver installation guide. Follow the instructions below to complete the installation. You will quickly complete the installation. 3.1 Chipset Driver Installation Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver”. - Page 42 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Click “Next” to install the driver. Step 5 Click “Next” to continue.
- Page 43 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 6 Click “Yes, I want to restart this computer now“ to continue.
-
Page 44: Graphic Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.2 Graphic Driver Installation IV70 Motherboard is equipped with Intel NM10 Companion Device. The Intel Graphic Drivers should be installed first, and it will enable “Video Controller (VGA compatible). Step 1 Insert the CD that comes with the Motherboard. Open the file document “Graphic Driver”. - Page 45 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 3 Click on “Next” to install the driver. Step 4 Click on “Yes” to agree with the license terms.
- Page 46 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Click “Next” to continue the installation. Step 6 Click “Next” to continue the installation.
- Page 47 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 7 Click “Yes, I want to restart this computer now” to continue.
-
Page 48: Panel Resolution Setting
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.3 Panel Resolution Setting Step 1 Right-click on the desktop, in the drop-down menu choose Properties. Step 2 In the Display Properties dialog box, go to the Settings tab. Step 3 Go to the Monitor tab. - Page 49 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Click on “Hide modes that this monitor cannot display” to remove this option. Step 5 Click on “Setting”, then could choose 32bit color qualify.
-
Page 50: Audio Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.4 Audio Driver Installation The ALC888 series are high-performance 7.1+2 Channel High Definition Audio Codecs providing ten DAC channels that simultaneously support 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. -
Page 51: Ethernet Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.5 Ethernet Driver Installation The Users must make sure which operating system you are using on the IV70 Motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Broadcom BCM57780 Gigabit Ethernet controller LAN drivers. - Page 52 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 3 Click on “Update Driver” to execute the setup. Step 4 Click on “Browse my computer for driver software” to install driver.
- Page 53 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Choose the path to install driver. Step 6 Click on “Close” to exit driver installation menu.
-
Page 54: Intel® Management Engine Software
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.6 Intel® Management Engine Software This installation program installs the Intel® ME software components required for Platform on which you are installing, and install only those components that matches your platform capabilities. Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”... - Page 55 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 3 Click “Yes” to agree with the License terms.
- Page 56 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Click “Finish” to complete the software installation.
-
Page 57: Fintek Com Port Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.7 Fintek COM Port Driver Installation This chapter describes the step by step method to install the Fintek COM port driver. Step 1 If your OS system is WIN7; first close UAC (Refer to “Disabling User Account Control (UAC) in Windows 7”). - Page 58 USER MANUAL CHAPTER 3 DRIVER INSTALLATION To turn off UAC, move the slider to the Never notify position, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation. To turn UAC back on, move the slider to choose when you want to be notified, and then click OK.
-
Page 59: Usb 3.0 Driver Installation (Only For Windows 7)
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.8 USB 3.0 Driver Installation (only for Windows 7) NOTE: If the operating system of the device is Windows Embedded 8.1 Industry or Windows Embedded 8 Standard, users can skip this installation. Step 1 Locate the hard drive directory where the driver files are stored with the browser or the explore feature of Windows*. - Page 60 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Read License Agreement and click “Yes” to proceed. Step 5 Review Readme File Information and click “Next” to proceed.
- Page 61 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 6 When the Setup Progress is complete click “Next” to proceed.
- Page 62 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 7 Click “Yes, I want to restart this computer now” to finish the installation and restart your computer.
- Page 63 USER MANUAL CHAPTER 4 AMI BIOS SETUP AMI BIOS SETUP This chapter describes the different settings available in the AMI BIOS that comes with the board. This chapter offers information on the Award BIOS installation utility.
-
Page 64: Chapter 4: Ami Bios Setup
USER MANUAL CHAPTER 4 AMI BIOS SETUP CHAPTER 4: AMI BIOS SETUP This chapter describes the different settings available in the AMI BIOS that comes with the board. This chapter offers information on the Award BIOS installation utility. 4.1 When and How to Use BIOS Setup Your computer comes with a hardware configuration program called BIOS Setup that allows you to view and set system parameters. - Page 65 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Navigation Keys The following keys are enabled during POST: Function Enters the BIOS setup menu. Display the boot menu. Lists all bootable devices that are connected to the system. With cursor ↑and cursor ↓and by pressing <ENTER>, select the device used for the boot.
-
Page 66: Bios Functions
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2 BIOS Functions 4.2.1 Main Menu The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options cannot be configured; blue-out options can be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. -
Page 67: Advanced Settings
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2 Advanced Settings The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. CAUTION Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer. - Page 68 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description Above 4G Decoding Enables or Disables 64 bit capable devices to be decoded in above 4G address space PCI Latency Timer Value to be programmed into PCI Latency Timer Register (32~248). VGA Palette Snoop Enables or Disables VGA palette registers snooping...
- Page 69 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.2 PCI Express Settings...
- Page 70 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description Relaxed Ordering Enables or Disables PCI Express Device Relaxed Ordering Extended Tag If Enabled allows device to use 8-bit tag field as a requester No Snoop Enables or Disables PCI Express Device No Snoop option Maximum Payload Set maximum payload of PCI...
- Page 71 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.3 ACPI Settings BIOS Setting Description Enabled ACPI Auto Enables or Disables BIOS ACPI Auto Configuration Configuration. Enable Hibernation Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State Select the ACPI sleep state the system will enter, when the SUSPEND button is...
- Page 72 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.4 Trusted Computing BIOS Setting Description Security Device Support Security Device Support Enable or disable BIOS support for security device.
- Page 73 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.5 CPU Configuration...
- Page 74 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description Hyper-threading Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled, only one thread per enabled core is enabled. Active Processor Cores This field is used to enter the number of cores to enable in each processor package.
- Page 75 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.6 SATA Configuration BIOS Setting Description SATA This item allows users to enable or disable the SATA Controller(s) controller(s). SATA Mode This item allows users to select mode of SATA Selection controller(s). SATA Test Mode This item allows users to enable or disable the Test mode.
- Page 76 USER MANUAL CHAPTER 4 AMI BIOS SETUP Software Feature Mask Configuration...
- Page 77 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.7 Thermal Configuration BIOS Setting Description Automatic thermal Configure _CRT,_PSV and _ACO automatically based on values recommended in BWG’s thermal reporting for reporting thermal management settings. Set to disabled for manual configuration. Active trip point 0 Active trip point 0 fan speed in percentage.
- Page 78 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.8 Intel® Rapid Start Technology BIOS Setting Description Intel® Rapid Start This item allows users to enable or disable Intel rapid start Technology technology.
- Page 79 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.9 PCH-FW Configuration This item allows users to enable or disable Me FW image re-flash function.
- Page 80 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.10 Intel Anti-Theft Technology Configuration BIOS Setting Description Intel® Anti-theft This item allows users to enable or disable Intel AT in bios Technology for testing only. Intel® Anti-theft Set the number of times recovery attempted will be Technology Rec allowed.
- Page 81 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.11 Acoustic Management Configuration BIOS Setting Description Automatic Acoustic Management Option to enable or disable automatic acoustic management.
- Page 82 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.12 USB Configuration BIOS Setting Description Legacy USB Support Enables support for legacy USB. Auto option disables legacy support if no USB devices are connected. USB3.0 support This item allows user to enable or disable USB3.0 function.
- Page 83 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.13 SMART Settings BIOS Setting Description Smart Self Test Enable or disable Run SMART Self Test on all HDDs during Post.
- Page 84 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.14 F81865 Super IO Configuration BIOS Setting Description Serial Port Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select optimal settings for the Super IO Device.
- Page 85 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.15 F81865 H/W Monitor BIOS Setting Description Fan1/Fan2 Smart This field enables or disables the smart fan feature. At a Fan Control certain temperature, the fan starts turning. Once the temperature drops to a certain level, it stops turning again.
- Page 86 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.16 Platform Misc Configuration BIOS Setting Description Native PCIE Enable Fan1/Fan2 Smart Fan Control. This field enables or disables the smart fan feature. At a certain temperature, the fan starts turning. Once the temperature drops to a certain level, it stops turning again.
- Page 87 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.17 Intel Smart Connect Technology BIOS Setting Description ISCT Configuration Enable/Disable ISCT configuration.
- Page 88 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.18 Serial Port Console Redirection BIOS Setting Description Console Redirection This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS). Out-of-Band Mgmt Port Select the port for Microsoft Windows Emergency Management Services (EMS) to allow for remote management of a Windows Server...
- Page 89 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.19 Intel ICC BIOS Setting Description Use Watchdog Timer for ICC Enables watchdog timer operation for ICC. If enabled, watchdog timer will be started after ICC-related changes. This timer detects platform instability caused by wrong clock settings. Turn off unused PCI/PCIe clocks Disabled: all clocks turned on.
- Page 90 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.20 Intel RC Drivers Version Detail 4.2.2.21 CPU PPM Configuration...
- Page 91 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description EIST CPU runs at its default speed if disabled; CPU speed is controlled by the operating system if enabled. Turbo Mode This item allows users to enable or disable turbo mode. Config TDP lock Lock the config TDP control register Long duration power limit...
- Page 92 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.2.22 Sandy Bridge DTS Configuration CPU BIOS Setting Description CPU DTS This item allows users to select the ACPI thermal management uses EC reported temperature value function.
-
Page 93: Chipset Setting
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3 Chipset Setting BIOS Setting Description PCI Express Configuration Detail of PCI Express items. USB Configuration Details of USB items. PCH Azalia Configuration Details of PCH azalia items. High Precision Timer Enables or disables the high precision timer. - Page 94 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3.1 PCI Express Configuration BIOS Setting Description PCI Express Clock Gating Enable or disable PCI Express clock gating for each root port. DMI Link ASPM Control The control of active state power management on both NB side and SB side of the DMI link.
- Page 95 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3.2 USB Configuration BIOS Setting Description XHCI Pre-Boot Driver This item allows user to enable or disable XHCI Pre-boot driver. XHCI Mode This item allows user to enable or disable XHCI Mode. EHCI 1/2 Enables or disables the EHCI controller.
- Page 96 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3.3 PCH Azalia Configuration This item allows user to enable or disable azalea device. 4.2.3.4 BIOS Security Configuration Enable or disable SMI/BIOS/GPIO/BIOS interface/RTC RAM Lock.
- Page 97 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3.5 System Agent Bridge Name This item allows users to enable or disable VT-d. 4.2.3.6 Graphic Configuration...
- Page 98 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description Primary Display This item allows users to select which graphics controller to use as the primary boot device. Internal Graphics This item allows users to enable or disable IGD. GTT Size This item allows users to select GTT size.
- Page 99 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description PEG0 - Gen x Select PEG0 speed. Enable PEG This item allows users to enable or disable PEG always. PEG Sampler This item allows users to enable or disable PEG sampler Calibrate calibrate function.
- Page 100 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.3.8 Memory Information...
-
Page 101: Boot
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.4 Boot... - Page 102 USER MANUAL CHAPTER 4 AMI BIOS SETUP BIOS Setting Description Setup Prompt Timeout This item allows you to change number of seconds to wait for setup activation key. Bootup NumLock State This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number...
- Page 103 USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.4.1 CSM parameters BIOS Setting Description Launch CSM This option controls if CSM will be launch. Boot option filter This option controls what devices system can boot to the system. Launch PXE OpROM policy Controls the execution of UEFI and legacy PXE OpROM.
-
Page 104: Security
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.5 Security This section allows you to configure and improve your system and allows you to set up some system features according to your preference. BIOS Setting Description Administrator Password Sets Setup Administrator Password. User Password Sets User Password. -
Page 105: Save & Exit
USER MANUAL CHAPTER 4 AMI BIOS SETUP 4.2.6 Save & Exit BIOS Setting Description Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. - Page 106 USER MANUAL CHAPTER 5 TECHNICAL SUPPORT TECHNICAL SUPPORT This chapter contains directory to technical support.
-
Page 107: Chapter 5: Technical Support
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT CHAPTER 5: TECHNICAL SUPPORT This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.
