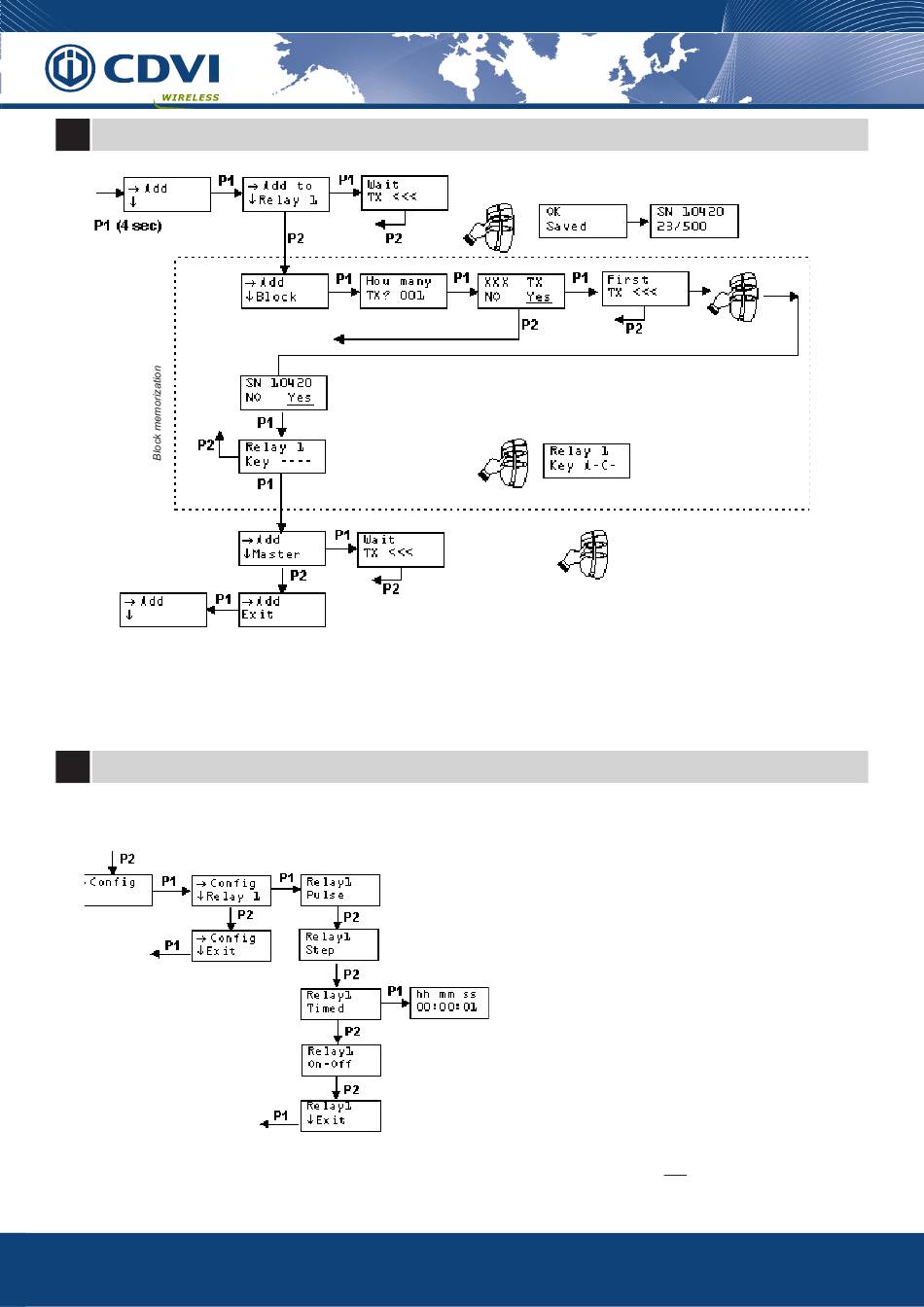

Menu Add
(*) NOTE : The first TX added acts as Master: that means that it can be used to add more tx using the PLUS option.
The submenu Add Master allows to assign the Master property to any other TX already in memory even not memorized on the first position.
Once a TX has been assigned as Master, its property cannot be removed unless to delete it from the memory using the Delete menu.
The transmitters «Master» are identified with the «#» in the list.
10
Menu Config
Allows to set the operating mode of the relay as Pulse, Step,Timed or ON/OFF In case of Timed it's possible to set the delay time from 1 sec.
to 24h: 59 min.
The installer's choice
Manufacturing Access Control since 1985
Push TX
Button
Enter the number
of TX [1 < n < 500]
Press the transmitter buttons
which activate Relay 1 and
press P1 to confirm
