CDVI SEL2641R433-XPL5 Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
1
Introduction
Fig.1
F1001000082
2
Technical Specifications
E R O N E
X P L 5 0 0
3

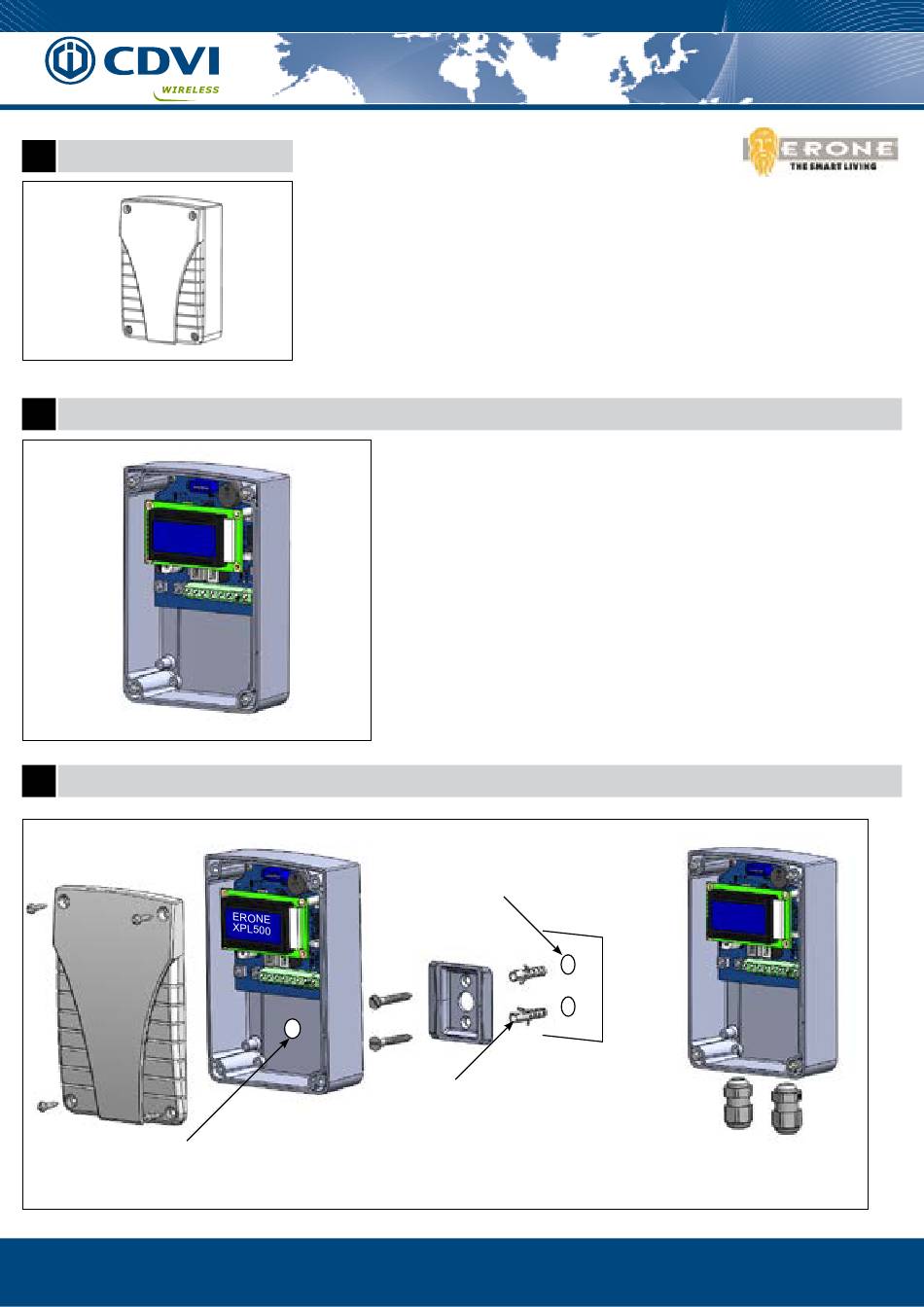

Mounting
Option A ) make a hole ( ø11 mm )
on the bottom of the box and pass
the cables throught
The installer's choice
2 RELAY RECEIVER SEL2641R433-XPL5

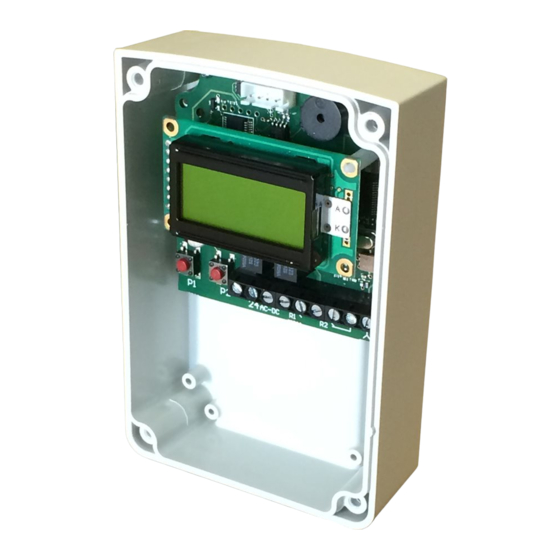

The receiver Erone type XPL500 (Fig. 1) is a single conversion superheterodyne
receiver with integrated rolling-code decoding. The demodulation is AM/ASK.
A special algorithm allows to keep synchronyzed transmitter and receiver. The receiver,
having dry contacts relays output, can be connected to any type of device (gate, garage
door, rolling shutters, awnings, anti-burglar appliances, lighting, etc.).
The transmitter memorization can be carried out either with 2 push-buttons of the
receiver or remotely, using only the keys of the transmitter. The setup of the remaining
parameters of the receiver can be done only with the 2 push buttons of the receiver.
All the setting steps are displayed by a backlit LCD display.
Fig. 1
The internal data can be saved/restored to/from an external memory.
Receiver type:
Demodulation:
Operating frequency:
Sensitivity (for good signal):
Input load:
Power supply:
Current consumption (@12Vdc)
N° of relays
Max power on relay output:
Memory capacity:
Security protocol
N° of code combinations
Operating temperature:
Dimensions (Fig. 2):
Weight:
Relay operating mode
Delay
Fig. 2
Drill the placing surface
with ø6 tool and insert the
2 plugs
Then fix the support with
the screws provided
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Supereheterodyne.
AM/ASK.
433.92 Mhz.
-115 dBm.
50 Ohm.
12 o 24 V ac/dc.
from 25 mA to 90 mA (max)
2 (1 NO and 1NO / NC).
24VA max 60V .
500 transmitters
Keeloq® Hopping code
2exp64
from -20 to + 60 °C.
120 x 80 x 40 mm
65 gr.
Pulse, step, timed
from 1 sec. to 24h: 59 min.
E R O N E
X P L 5 0 0
Option B ) Use of Pg7 cable gland
Fig. 3
