CDVI SELWR433 Instruction Manual

Wireless Weigand Receiver
SELWR433
Instruction Manual

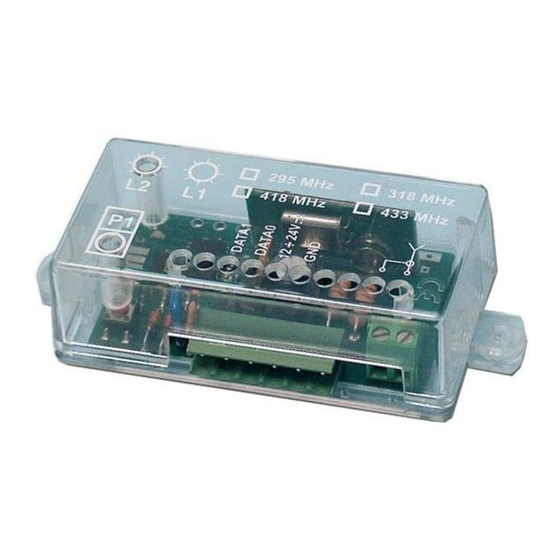

RECEIVER INTRODUCTION
The wireless "Wiegand 26 bit format" receiver
SELWR433 is a superheterodyne receiver operating at
the frequency 433,92 MHz.
SpECIfICaTIONS
Receiver type:
Operating frequency:
Power supply :
Current consumption:
Output type:
Operating temperature: -20 to +70 °C
Dimensions:
Weight:
Manufacturing Access Control since 1985
w w w . c d v i . c a
Superheterodyne
433,92 MHz
12 or 24 Vac/dc
24 mA
Wiegand 26-bit
105 x 45 x 28 mm
65 g
w w w . c d v i . c a

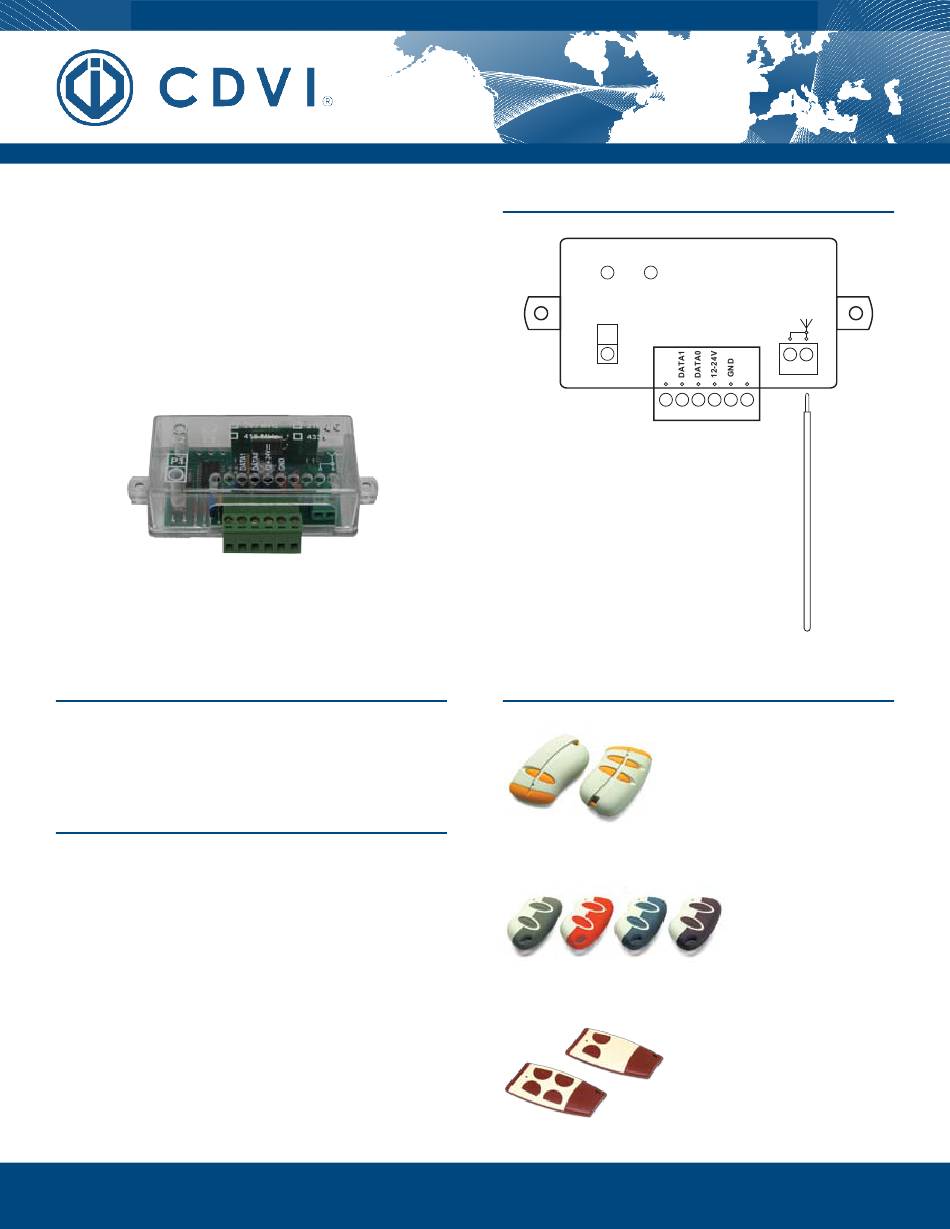

TERMINaL CONNECTIONS
L2 L1
P1
1 2
P1: Programming button
L2: Red led ( programming )
L1: Green led ( power supply )
1: Not used
2: DATA1
3: DATA0
4: 12 or 24 Vac/dc
5: GND
6: Not used
7: Antenna Shield
(used for SEA433 tuned antenna)
8: Antenna Core
COMpaTIbLE TRaNSMITTERS
Available with optional
built-in proximity badge
7 8
3 4 5 6
Supplied
Antenna
2-Channel Transmitters
S2TR2641E2
4-Channel Transmitters
S2TR2641E4
2-Channel Mini Transmitters
Red: SETR2641AM2R
Blue: SETR2641AM2B
Burgundy: SETR2641AM2C
Dark Gray: SETR2641AM2N
2-Channel
Ultra-Thin Transmitters
S5TR2641E2S
4-Channel
Ultra-Thin Transmitters
S5TR2641E4S
