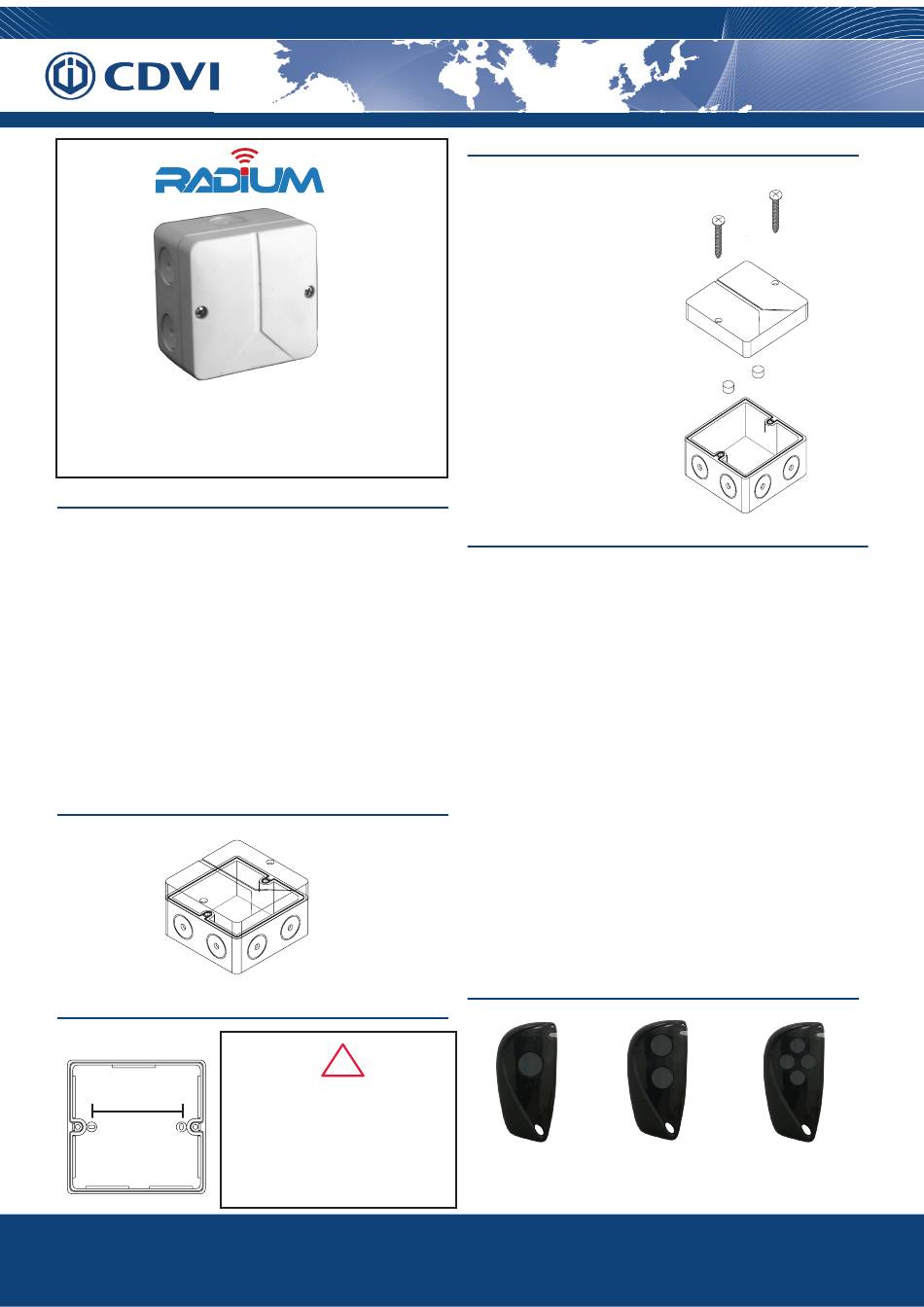

CDVI RADiUM WR4 Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
WR4
Wireless Receiver w/ 4
Relays
INTRODUCTION

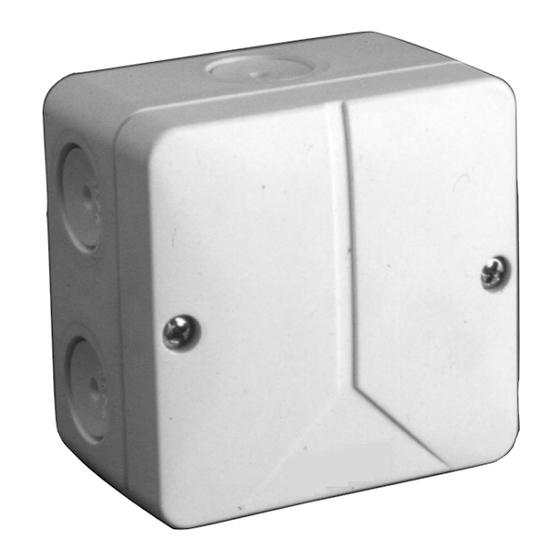

The receiver Radium WR4 is designed for the control of auto-
matic closing systems and anti-burglar systems, thanks to its
very high security coding system (KeeLoq ® Hopping code).The
code sent by the transmitter changes at every activation, avoid-
ing any scanning and copying risk. A special algorithm allows to
keep synchronyzed transmitter and receiver. The receiver has
up to 4 output relays ( with NO and NO/NC contacts, and can
be connected to many types of mechanics ( gate, garage door,
rolling shutters, awnings, anti-burglar appliances, lighting, etc.).
The programming can be done in self-learning mode by means
of one button. The housing protection of IP65 allows external in-
stallations. The appliance full complies with the European Reg-
ulations 2006/95/CE, 2004/108/CE, 99/05/CE and EN 60335-1.
DIMENSIONS
3.15
FIXING
18.1
IMPORTANT
Receiver location is crucial for optimal
system performance. Place the receiver far
from interference sources such as magnetic
fields or radio emissions (neon ballasts,
electric motors, etc.). Ensure quality signal
reception by doing range tests before
permanently mounting the receiver.
Tel: (450) 682-7945, Toll Free Tel: 1-866-610-0102, Fax: (450) 682-9590, Toll Free Fax: 1-866-682-9590
The installer's choice
F1001000071
1.96
3.15
!
CDVI 1637 Highway 440 West, Laval, Québec, Canada, H7L3W3
Manufacturing Access Control since 1985
www.cdvi.ca
COMPOSITION
The receiver is composed by :
1 box with electronics
1 cover
2 screws
2 gumm taps
1 antenna wire
2 screws with plugs
SPECIFICATIONS
Receiver type
Carrier frequency
Local oscillator frequency
Demodulation
Local Oscillator
Channel width
Intermediate frequency
Input sensitivity
Input load:
Power supply:
Consumption:
Steady / 12 Vdc ( 2 relays excited)
Steady / 24 Vdc ( 2 relays excited)
Max applicable power
Relay number
Relay mode
Contacts
Memory capacity
TX security code
Cominations
Operating temperature
Housing protection
Weight
Overall dimensions (inch)
COMPATIBLE REMOTES
R1
1-Button Remote
Superheterodyne
433,92 MHz
6.6128 MHz
AM/ASK
VCO / PLL
> 25 KHz
10.7 MHz
-115 dBm
50 Ohm
12 / 24 Vac/dc
15 mA / 49 mA
19 mA / 55 mA
24VA
4
3 x Pulse, 1 x Pulse/Step
NO, NO/NC
85 transmitter buttons
KeeLoq ® Hopping code
2exp64
-20°/+70°C
IP65
gr. 130
3.15 x 3.15 x 1.96
R2
2-Button Remote 4-Button Remote
R4
