CDVI ERONE SEL2641R433-XPL1V Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
1

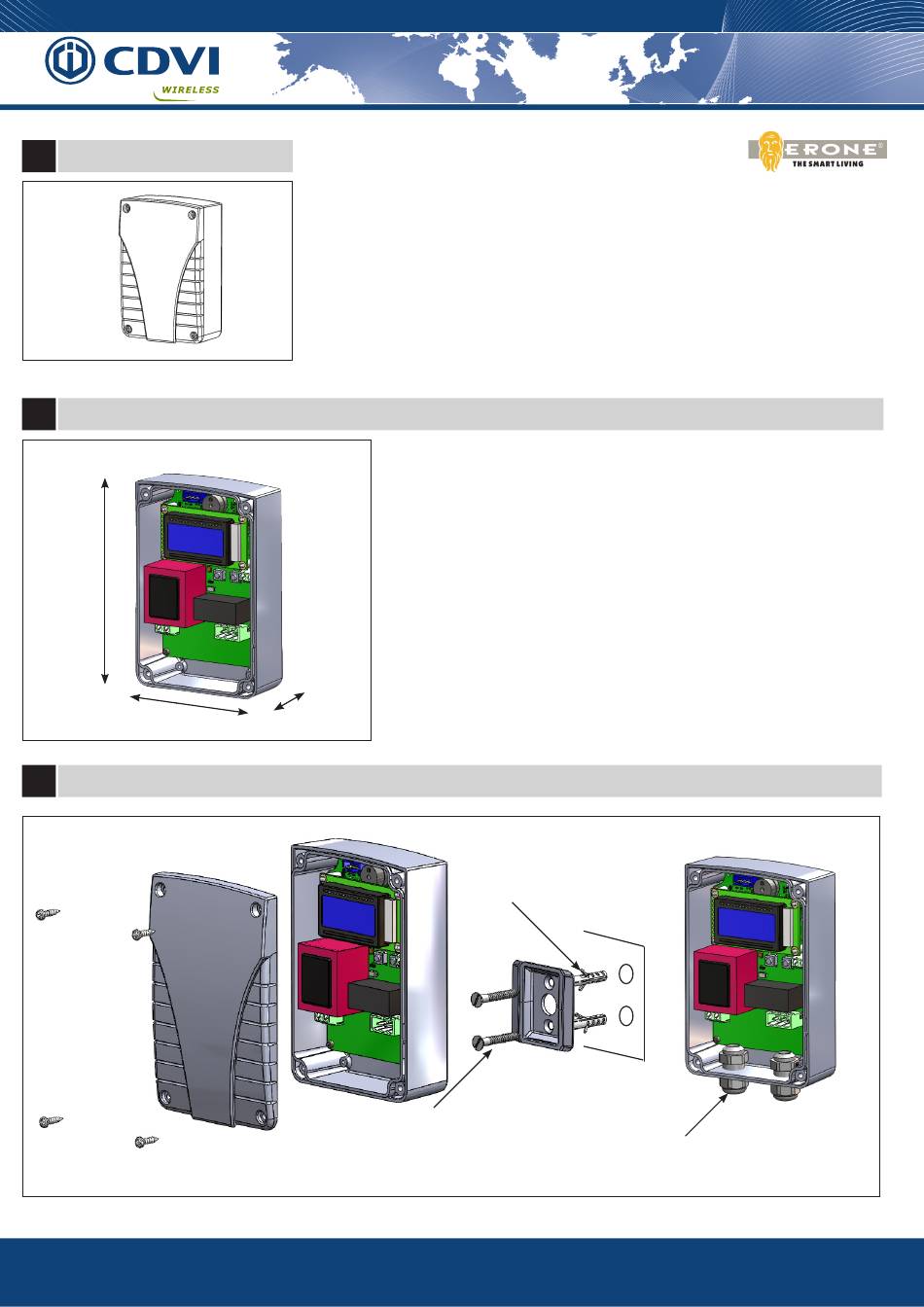

Introduction
Fig.1
F1001000089
2
Technical Specifications
E R O N E
X P L 1 V
123
81,5
Fig. 2
3
Mounting
The installer's choice

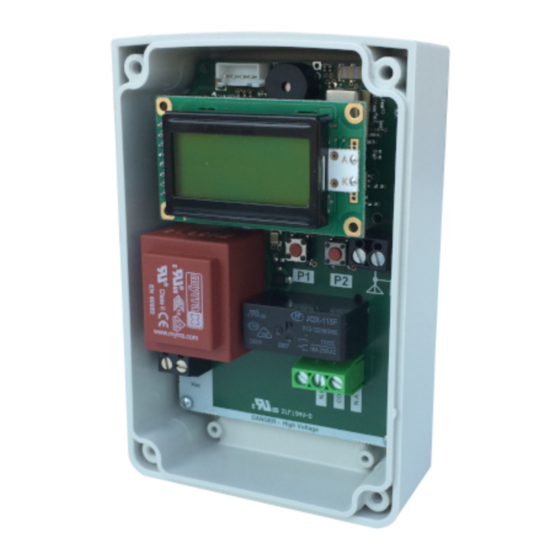

1 RELAY RECEIVER SEL2641R433-XPL1V
The receiver Erone type SEL2641R433-XPL1V ( Fig. 1) is a AM/ASK single conversion
superheterodyne receiver with integrated "Keeloq® Hopping code" decryption.
A special algorithm allows to keep synchronyzed transmitter and receiver.
Power supply : 230 Vac.
The receiver relay output, can drive many type of loads, up to 16A / 230 Vac.
It's advised to drive locks, magnets, and any type of power load.
The transmitter memorization can be carried out either with 2 push-buttons of the receiver
or remotely, using only the keys of the transmitter. The setup of the remaining parameters
can be done only with the 2 push buttons of the receiver. All the setting steps are displayed
Fig. 1
by a backlit LCD display.
The internal data can be saved/restored to/from an external memory.
Receiver type:
Demodulation:
Operating frequency:
Sensitivity ( for good signal ):
Input load:
Power supply :
Current consumption
Relay contacts
Max current on relay output:
Memory capacity:
Security protocol
N° of code combinations
Operating temperature:
Overall dimensions ( Fig. 2):
Weight:
Relay operating mode
41,5
Delay
Enclosure protection
E R O N
E
X P L 1
V
Then fix the support with
the screws provided
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Drill the placing surface
with ø6 mm tool and insert the
2 plugs
Supereheterodyne.
AM/ASK.
433.92 Mhz.
-115 dBm.
50 Ohm.
230 Vac - 50 Hz.
10 mA @230 Vac
NO/NC.
16 A.
500 transmitters
Keeloq® Hopping code
2exp64
from -20 to +70 °C.
123 x 81,5 x 41,5 mm
65 gr.
Pulse, step, timed, on-off
from 1 sec. to 24h: 59 min.
IP55
E R O N E
X P L 1 V
Option B ) Use of PG7 cable glands
( not provided )
Fig. 3
