Fabricant de Contrôle d'Accès depuis 1985
1

Introduction

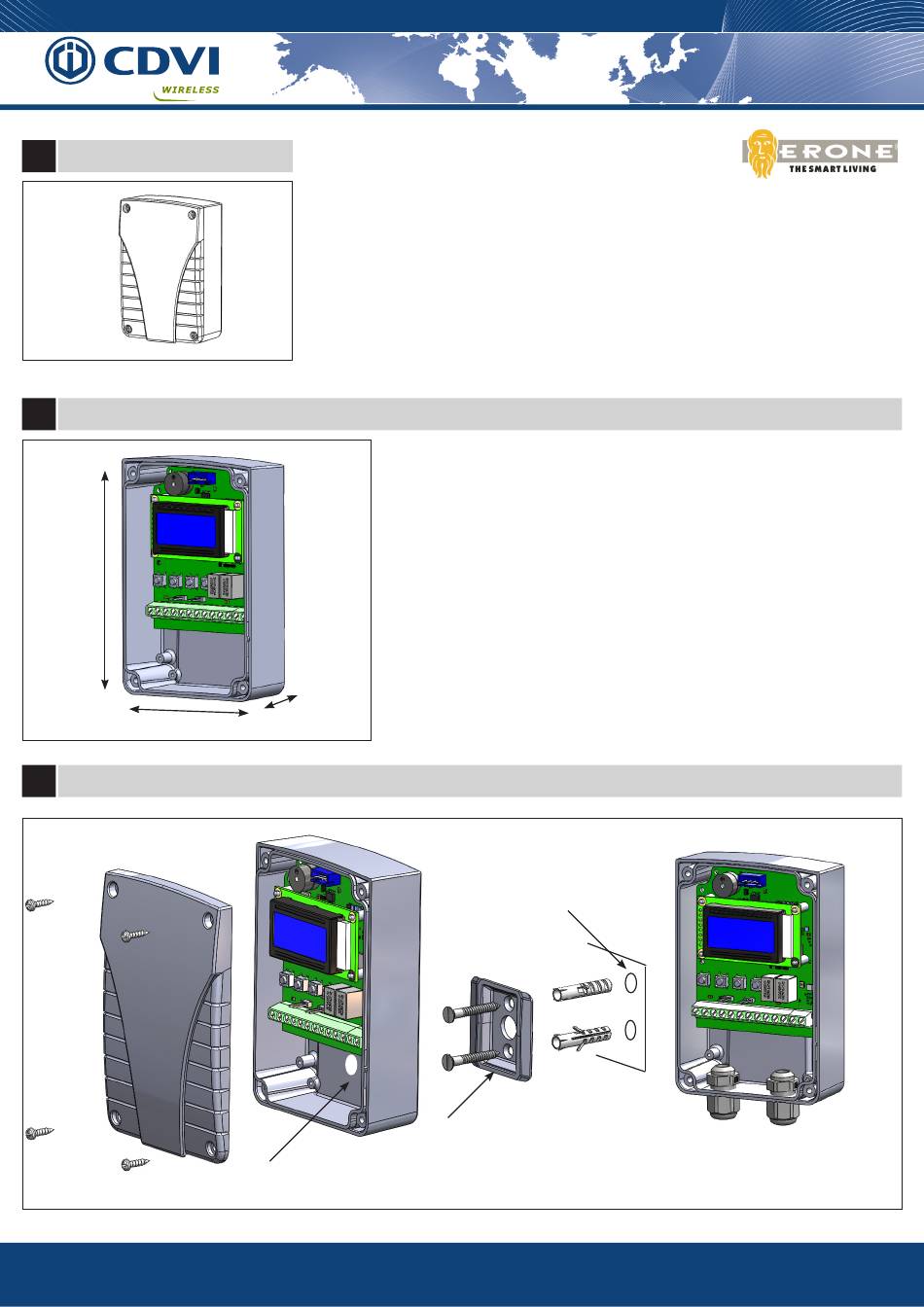

Fig.1
F1001000094
2

Technical Specifications

X P L 12 8
E R O N E
123
81,5
Fig. 2
3

Mounting

The installer's choice
RECEIVER SEL128R433-WPL

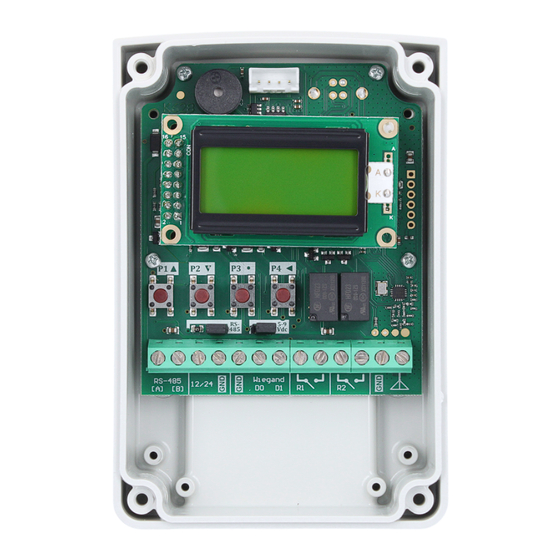

The type SEL128R433-WPL (Fig. 1) is a very high security superheterodyne receiver
with GFSK demodulation.
The high degree of security is ensured by a 128-bit serial number, with a AES128
encryption and by a proprietary "rolling code algorithm" that avoids the risk of the scan
and the subsequent retransmission of the code copied. A special system keeps aligned
transmitter and receiver.
An innovative feature allows to set up the autostore capability of a new transmitter using
a remote control already in memory, which enables it by proximity.
This avoids to access the receiver for memorizing a new remote control.
The equipment is manufactured in accordance with the European Directives 2014/53/EU
Fig. 1
and to the Standard EN 60950-1.
The full text of the EU declaration of conformity is available at the following internet
address: www.erone.com
Operating frequency ...........................................433,92 MHz
Demodulation .....................................................GFSK
Sensitivity ( for good signal ) .............................-115 dBm
Power supply: .....................................................12/24 Vac/dc
Current consumption ( @12 Vdc ) ......................from 25 to 50 mA (max)
Encryption...........................................................AES128 bit
Wiegand protocols supported .............................26 - 30 - 44 bit
Memory capacity ................................................500 s/n
Relays.................................................................2 x 24 VA - max 48Vdc
Relay operating mode ........................................pulse , step, delayed
Delay ..................................................................from 1 sec. to 23 h : 59 min
Retransmission period over wiegand bus...........from 100 mS to 2 Sec.
Relay pulse ........................................................300 mS
Operating temperature: ......................................-10 ÷ +60°C
Enclosure IP protection: .....................................IP55
41,5
Dimensions: ........................................................120 x 80 x 40 mm
Weight ................................................................65 gr.
X P L
1 2 8
E R O
N E
Option A ) make a hole ( ø11 mm )
on the bottom of the box and pass the cables throught
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Drill the placing surface
with ø6 tool and insert the
2 plugs
Then fix the support with
the screws provided
X P L 12 8
E R O N E
Option B ) Use of PG7 cable glands
(not provided )
Fig. 3
