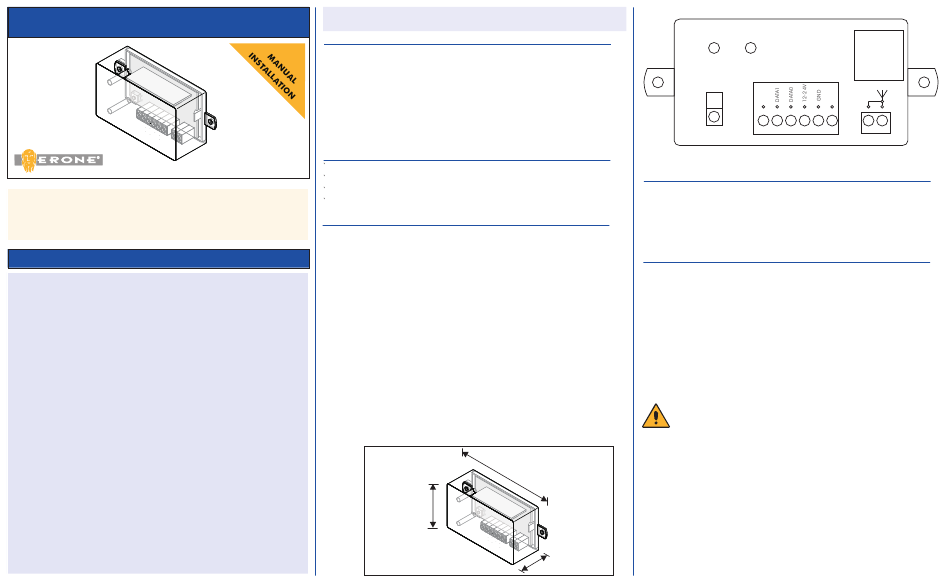

433 MHz WIEGAND RECEIVER
T H E S M A R T L I V I N G
Thank you for choosing an ERONE product. You are recommended
to read this manual carefully before installing the product.
CONTENTS
1- RECEIVER INTRODUCTION
1A
Description
1B
Usable transmitters
1C
Technical specifications
1D
Receiver layout
1E
Terminal board connections
2- FACTORY SETTINGS
3- RECEIVER SET-UP
4- DEFAULT RECEIVER CONFIGURATION
5- FACILITY CODE CHECK DISABLING
6- MEMORY ERASURE
7- WIEGAND SIGNAL FORMAT
8- FRAME ARCHITECTURE
1- RECEIVER INTRODUCTION
1A - Description

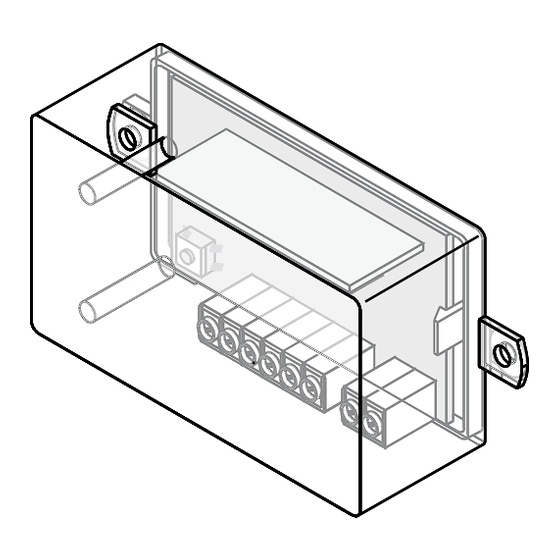

The receiver ERONE type SELWR433 is a superheterodyne receiver operating
at the frequency 433,92 Mhz in AM/ASK. It is composed by a main board in
which there are the power supply output connectors and by a RF card. The
two outputs have an open drain configuration with output signal in "Wiegand
26 bit format". The appliance is housed in an indoor enclosure. Hereby,
CDVI Wireless Spa, declares that the radio equipment type SELWR433 is in
compliance with directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address: www.erone.com.
1B - Usable transmitters
S E L W R 4 3 3
ERONE Series MINI Type. SETR2643AM2: 2 keys transmitter
ERONE Series 024A Type S2TR2641E2-E4
ERONE Series 054A Type S5TR2641E2-E4
ERONE Series 074A Type S7TR2641E4
1C - Technical specifications
Receiver type:
Demodulation:
Operating frequency:
Local oscillator frequency:
Intermediate frequency:
Sensitivity:
Input impedance:
Power supply :
Current consumption:
Output s number:
Output type:
Max output current:
Operating temperature:
Overall dimensions:
Weight:
IP Protection Grade:
Superheterodyne.
AM/ASK.
433,92 MHz.
6,6128 MHz.
10,7 MHz.
-115 dBm.
50 Ohm.
12 ÷ 24 V ac/dc.
24 mA
2
Wiegand.
250 mA
-20 ÷ + 70 °C.
105 x 45 x 28 mm.
65 gr.
IP2X
105
45
28
Red
Green
L2
L1
P1
1
2
3
4
5
1D - Receiver Layout
P1 : Programming button
L2 : Red led ( programming )
L1 : Green led ( power supply )
1E - Terminal board connections
1 - Not used;
2 - Output DATA1 ( Open collector );
3 - Output DATA0 ( Open collector );
4 - Power Supply ( 12 ÷ 24 Vac/dc );
5 - Power GND;
6 - Not used;
7 - Antenna Shield;
8 - Antenna Core;
IMPORTANT
The receiver allocation is very important for the best operation of the
system.
Place the receiver far from interference sources such as big magnetic
fields or radio emissions.
The installation and the positioning of the antenna is very important
as well. Before to install the antenna it is advisable to make some
tests on the site.
Use shielded cable type RG58 ( impedance 50 Ohm ) for the
antenna connection.
6
7
8
