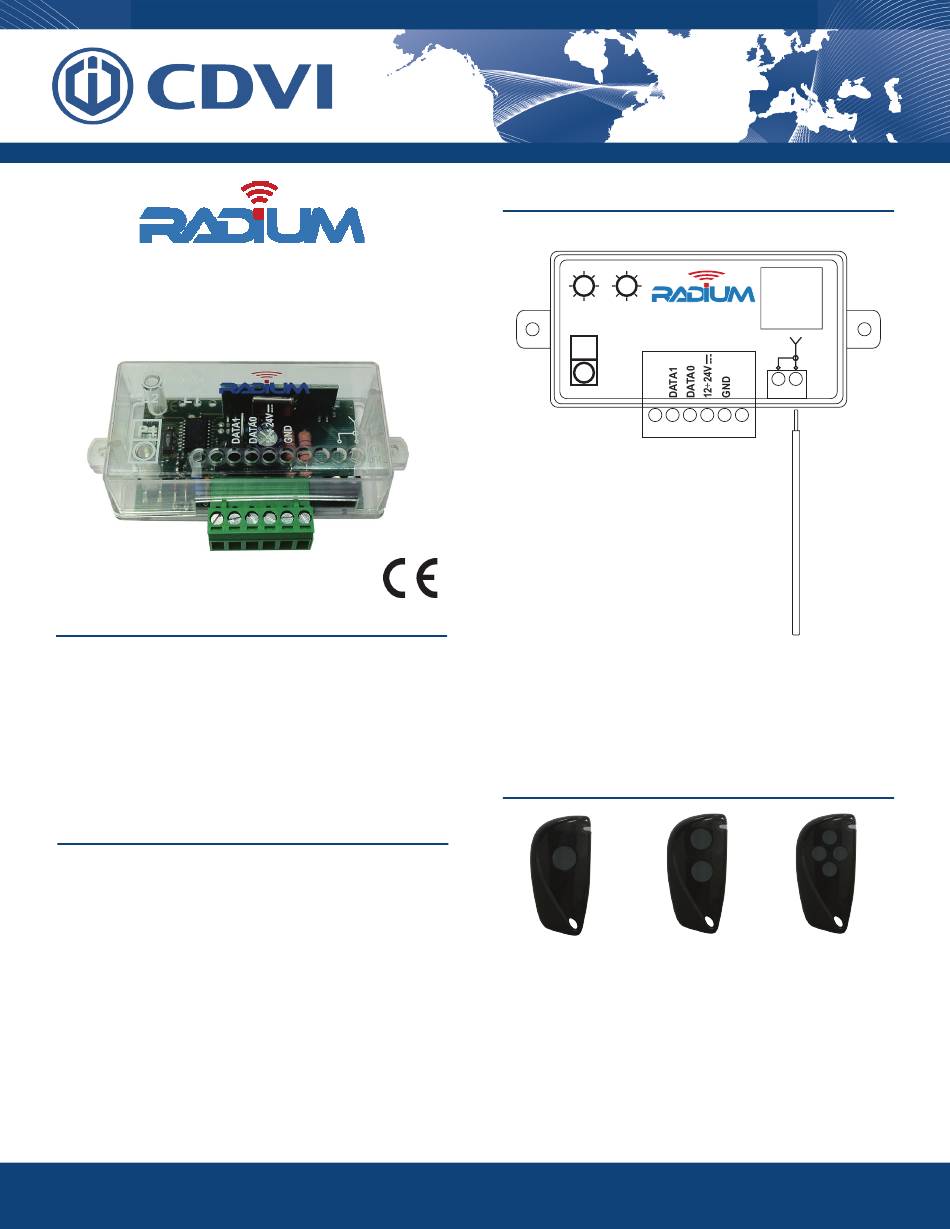

CDVI RADIUM WRW Quick Start Manual

WRW
Wireless Receiver with wiegand output

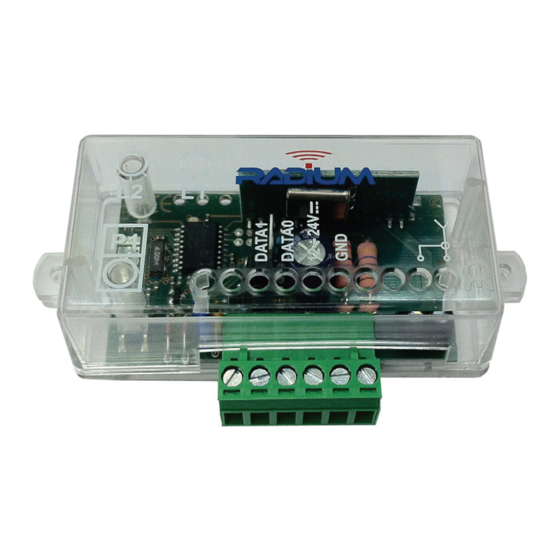

RECEIVER INTRODUCTION

The receiver WRW is a superheterodyne receiver
operating at 433,92 Mhz in AM/ASK. It is composed by
a main board in which there are the power supply output
connectors and by a RF card. The two outputs have an
open drain configuration with output signal in "Wiegand
26 bit format". The appliance is housed in an indoor
enclosure.

SpECIfICaTIONS

Receiver type:
Operating frequency:
Power supply :
Current consumption:
Output type
Operating temperature: -20 to +70 °C
Dimensions:
Weight:
The Installer's Choice
w w w . c d v i . c a
Superheterodyne
433,92 MHz
12 or 24 Vac/dc
24 mA
Wiegand 26-bit
105 x 45 x 28 mm
65 g
w w w . c d v i . c a

TERmINal CONNECTIONS

L2 L1
P1
1 2 3 4 5 6
P1: Programming button
L2: Red led ( Programming )
L1: Green led ( power supply )
1: Not used
2: DATA1
3: DATA0
4: 12 or 24 Vac/dc
5: GND
6: Not used
7: Antenna Shield
(used for SEA433 tuned antenna)
8: Antenna Core

COmpaTIblE REmOTES

R1
1-Button Remote 2-Button Remote
Also available with CDVI or HID built-in proximity badge
7 8
Supplied
Antenna
R2 R4
4-Button Remote
