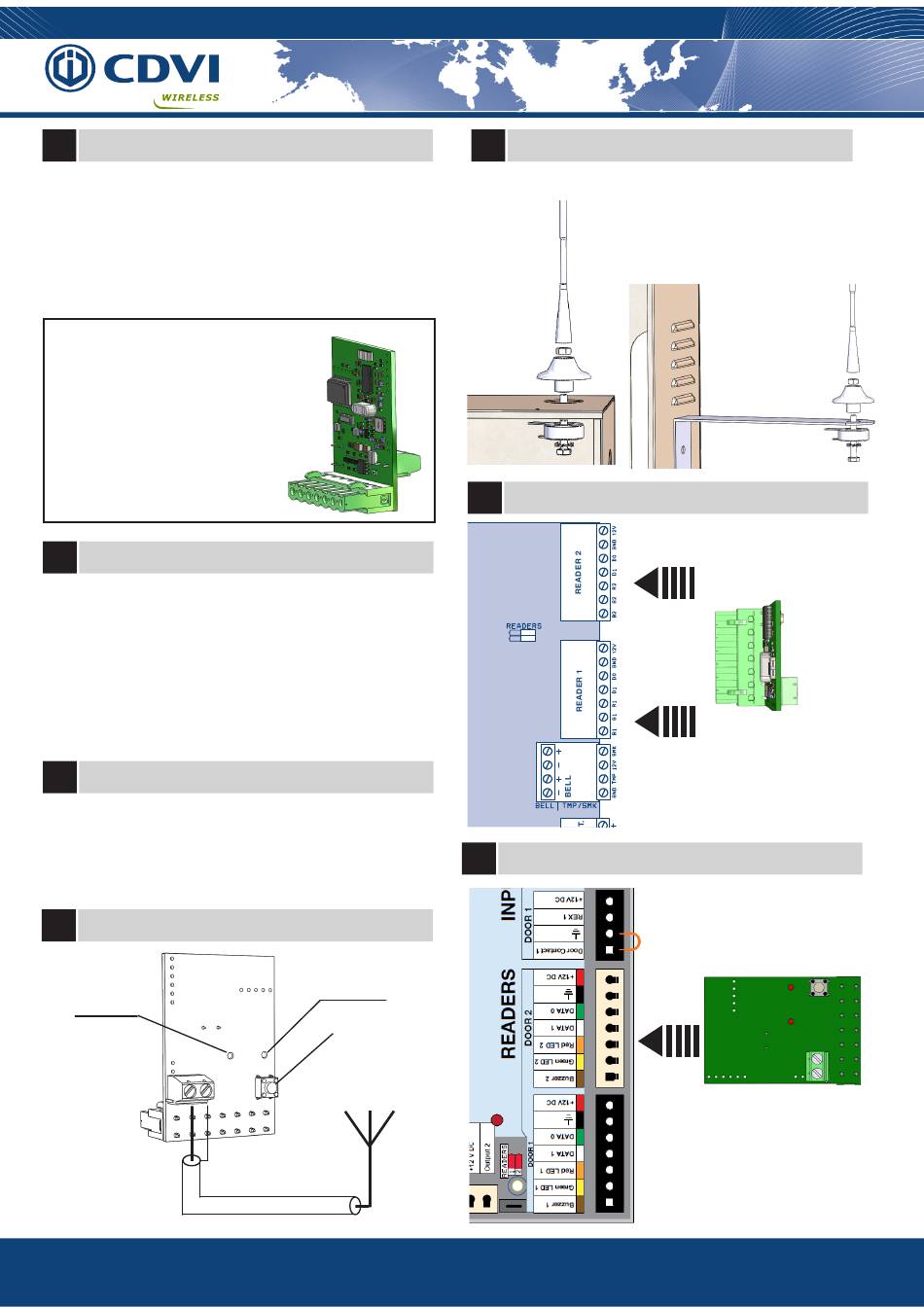

CDVI SELWR433-SAT Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
1
Introduction

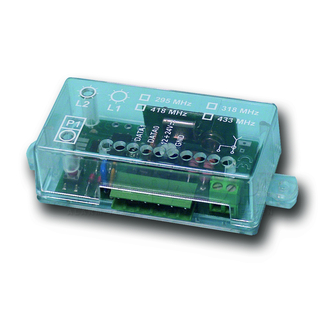

The receiver ERONE type SELWR433-SAT is a plug-in receiv-
er card, operating at 433,92 Mhz in AM/ASK modulation.
The receiver has a 26-bit wiegand output.
The output connector of the card can be fitted on:
Atrium AC22 : reader 1 or reader 2
Atrium A22 : readers - door 2 ( only )
The receiver is provided with an external tuned antenna which
can be fixed on the Atrium metal box.
SELWR433-SAT
F1001000079
2

Specifications

Receiver type:
Operating frequency:
Power supply :
Current consumption:
Output type:
Operating temperature:
Dimensions:
Weight:
Input load:
3

Compatible transmitters

Erone S2TR2641E1/E2/E4/E2M
Erone SETR2641AM1/AM2
Erone S3TR2641T2/T2/T4
Erone S7TR2641E4
Erone SETR2641-TM
4
Layout
Green LED
[Power]
The installer's choice
Superheterodyne
433,92 MHz
12 Vdc
24 mA
Wiegand 26-bit
-20 to +70 °C
105 x 45 x 28 mm
65 g
50 Ohm
AC22
2-Door Controller
Red LED
[Wiegand]
P1
Tuned
Antenna
RG58 - 50 Ohm
www.erone.com - www.cdvigroup.com
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
5
Mounting the antenna on Atrium box
The product comes with a 433 Mhz stylo antenna.
Fig A
6a
Plug-in on AC22
1
2
6b
Plug-in on A22
It can be mounted on the top of the
metal box of Atrium ( Fig.A) or on
the side, making use of the L-shape
bracket ( Fig. B)
Fig B
Plug-in the card into the
7-way connector READER1
or READER2 of the Atrium
mother board AC22
Plug-in the card into the 7-way
connector reserved to Door 2 of
the Atrium mother board A22
