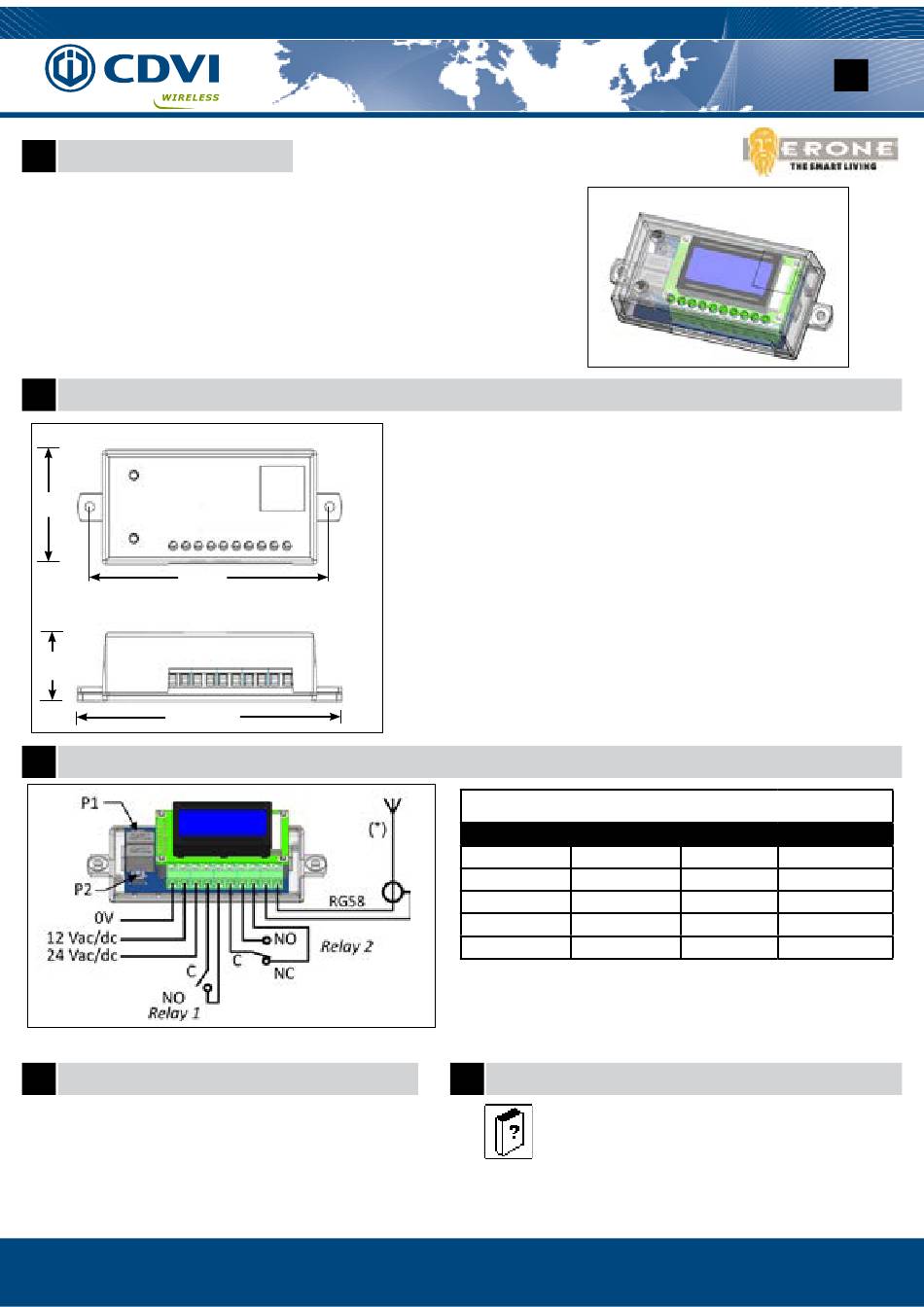

Introduction

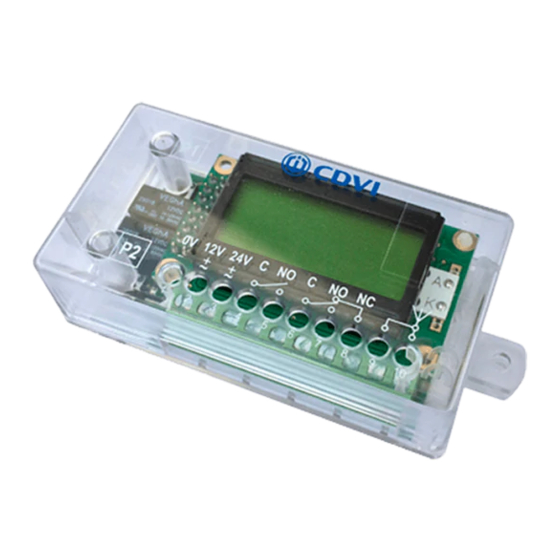

This Erone receiver SEL2641R433-XPL (Fig. 1) employs rolling-code technology - a
special algorithm keeps the transmitter(s) and receiver synchronised and secure. This
receiver has 2 relay outputs, each having dry contacts.
Programming of transmitters can be carried out either directly on the reciever using the
2 push buttons, or remotely using the buttons of the transmitter.
General parameters of the receiver (relay time etc) can only be done using the 2 push
buttons of the receiver.
All programming steps are displayed on the backlit LCD display.
The internal data can be saved/restored to/from an external memory module.
2
Technical Specifications
45
95
28
105
3
Wiring
Fig.3
4
Compatible transmitters
S2TR2641E1, E2, E4, E2M
SETR2641AM1, AM2
S5TR2641E2, E4
S3TR2641T1, T2, T4
S7TR2641E4
SETR2641-TM
The installer's choice
Manufacturing Access Control since 1985
2 RELAY RECEIVER SEL2641R433-XPL
Receiver type:
Fig.2
Demodulation:
Operating frequency:
Sensitivity (for good signal):
Input load:
Power supply:
Current consumption (@12Vdc)
N° of relays:
Max power on relay output:
Memory capacity:
Security protocol
N° of code combinations
Operating temperature:
Dimensions (Fig. 2):
Weight:
Relay operating mode
Delay
(*) NOTE: The tuned antenna, SEA433, is recommended to optimise the
performance.
5
www.erone.com - www.cdvigroup.com
www.erone.com - www.cdvigroup.com
Fig.1
Supereheterodyne.
AM/ASK.
433.92 Mhz.
-115 dBm.
50 Ohm.
12 o 24 V ac/dc.
from 25 mA to 90 mA (max)
2 (1 NO and 1 NO / NC).
24VA max 48Vdc .
100 transmitters
Keeloq® Hopping code
2exp64
from -20 to + 70 °C.
105 x 45 x 28 mm.
65 gr.
Pulse, step, timed
from 1 sec. to 24h:59 min.
I/O Connections
Terminal
Description
1
0V
2
12 Vac/dc
3
24 Vac/dc
4
Relay 1-C
5
Relay 1-NO
Warnings
The receiver location is very important for the best operation of the
system. Place the receiver away from interference sources such as
magnetic fields or radio emissions. The installation and the positioning
of the antenna is also important. Before finalising location or installing
the antenna, it's advisable to make some tests on site.
The distance between 2 receivers must be at least 1.5 metres.
Hereby, CDVI Wireless Spa, declares that the radio equipment type
SEL2641R433-XPL is in compliance with directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the following
internet address: www.erone.com.
EN
F1001000078
Terminal
Description
6
Relay 2-C
7
Relay 2-NO
8
Relay 2-NC
9
Antenna GND
10
Antenna
