CDVI CUBEKIT Quick Start Manual

CDVI CUBEKIT Quick Start Manual

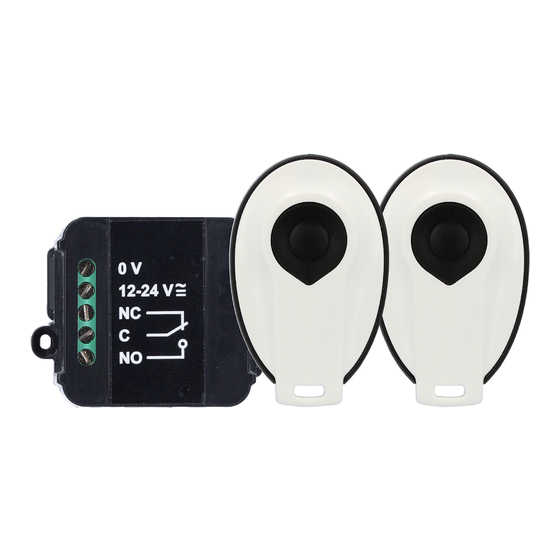

Wireless radio kit, 1 x receiver and 2 x transmitters

Advertisement

Quick Links

1] WIRING
1.
Connect your CUBEPOWER receiver to your
devices using the relay connection.
2.
Connect the receiver to power.
12-24 Vac/dc
autodetect
2] SET UP THE INSTALLERCUBE APP
1. Scan or click the QR code below to download
the app.
2.
Once downloaded, authorise the app to use
Bluetooth communication and the GPS
localisation.
3.
Create your CUBE X account if this is your first
time using the app.
Define e-mail address, name and password. A
verification e-mail will be sent to your e-mail
address.
CUBEKIT
Wireless radio kit, 1 x receiver and 2 x transmitters
QUICK START GUIDE
Bicolour
LED
NO
NC C
www.cdvi.com
3] CONNECT TO YOUR CUBEPOWER
1. Press 'Scan Devices'.
2.
Select the receiver that appears on the list.
3.
Enter default passwords.
Administrators
Installers
Administrator: Can set passwords for both
installers and administrators.
Installer: Uses the password set by the
Administrator.
Note: The installer cannot change the passwords.
It is highly recommended to change
the passwords after the first access
to the device.
EN
If the receiver doesn't show:
Ensure you are within
a 30m range of the
location of the receiver.
Ensure noone else
is connected to the
receiver.
11111
00000
If 'Default Password'
appears in red it means,
at least one of the
passwords have the
default value.
