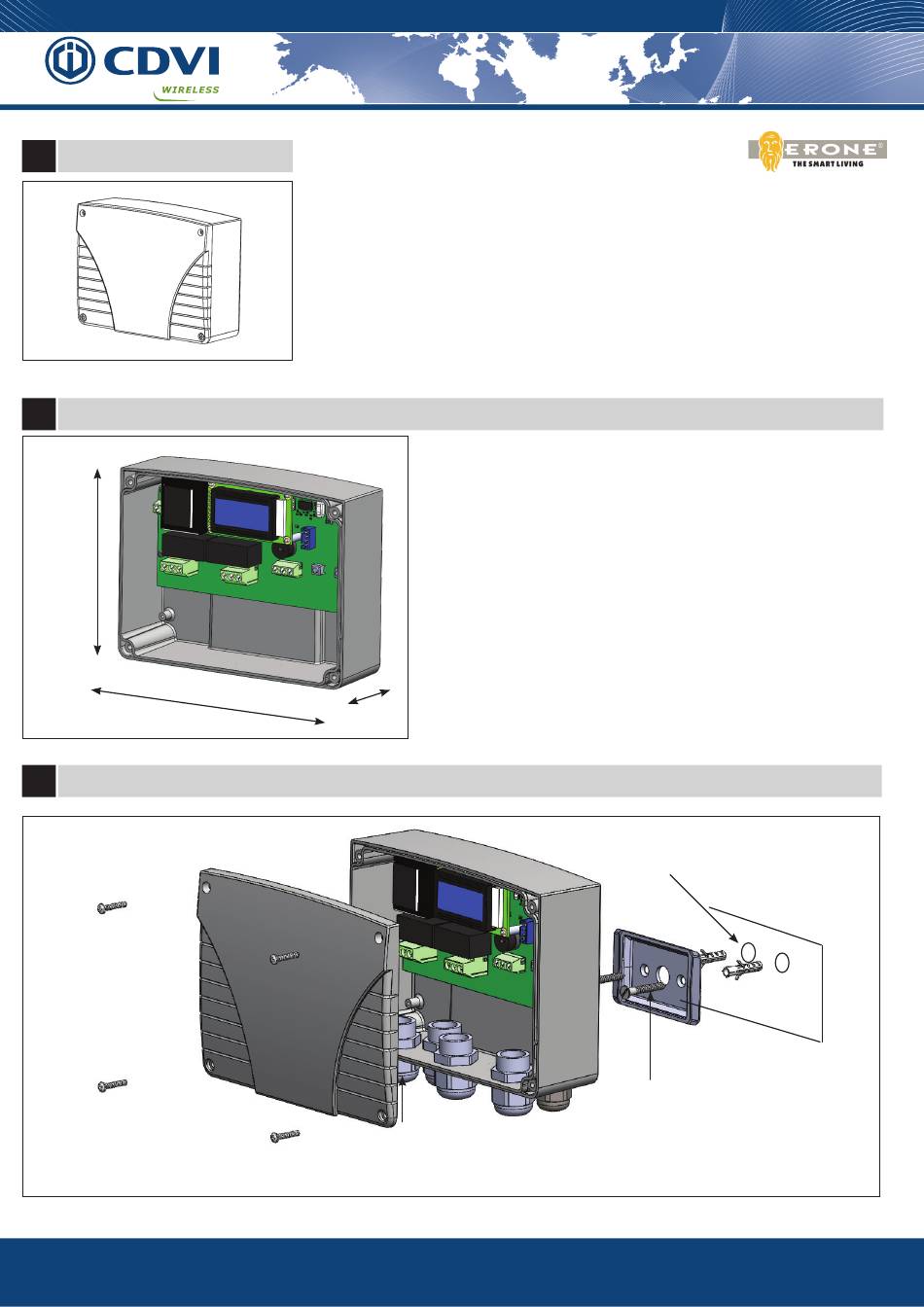

CDVI SEL2641R433-XPL2V Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
1
Introduction
Fig.1
F1001000092
2
Technical Specifications
118
155
Fig. 2
3
Mounting
The installer's choice

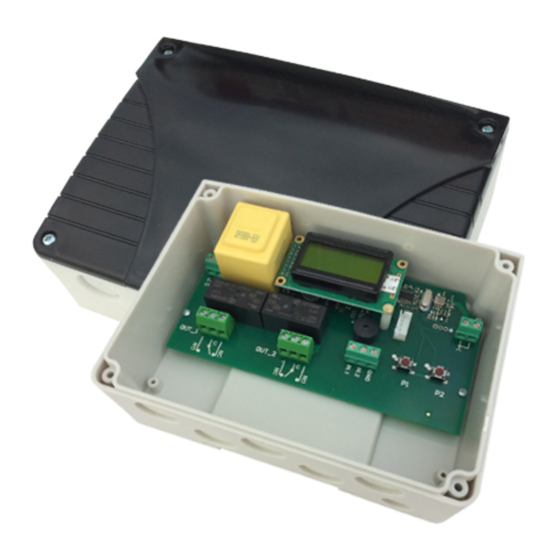

2 RELAYS RECEIVER SEL2641R433-XPL2V
The receiver Erone type SEL2641R433-XPL2V ( Fig. 1) is a AM/ASK single conversion
superheterodyne receiver with integrated "Keeloq® Hopping code" decryption.
A special algorithm allows to keep synchronyzed transmitter and receiver.
Power supply : 230 Vac.
The receiver relays output, can drive many type of loads, up to 16A / 230 Vac.
The transmitter memorization can be carried out either with 2 push-buttons of the receiver
or remotely, using only the keys of the transmitter. The setup of the remaining parameters
can be done only with the 2 push buttons of the receiver. All the setting steps are displayed
by a backlit LCD display.
Fig. 1
The internal data can be saved/restored to/from an external memory.
E R O N E
X P L 2 V
56
4 x PG11 + 1 PG7 cable
glands ( provided )
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
Receiver type:
Demodulation:
Operating frequency:
Sensitivity ( for good signal ):
Input load:
Power supply :
Current consumption
Relay contacts
Max current on relay output:
Memory capacity:
Security protocol
N° of code combinations
Operating temperature:
Overall dimensions ( Fig. 2):
Weight:
Relay operating mode
Delay
Enclosure protection
Drill the placing surface
with ø6 mm tool and insert the 2 plugs
E R O
N E
X P L
2 V
Then fix the support with
the screws provided
Supereheterodyne.
AM/ASK.
433.92 Mhz.
-115 dBm.
50 Ohm.
230 Vac - 50 Hz.
15 mA @230 Vac
2 x NO/NC.
16 A.
500 transmitters
Keeloq® Hopping code
2
64
from -20 to +70 °C.
155 x 118 x 56 mm
115 gr.
Pulse, step, timed
from 1 sec. to 24h: 59 min.
IP55
Fig. 3
