CDVI ERONE SEL2641R433-XPL1V Quick Start Manual page 2

Fabricant de Contrôle d'Accès depuis 1985
4

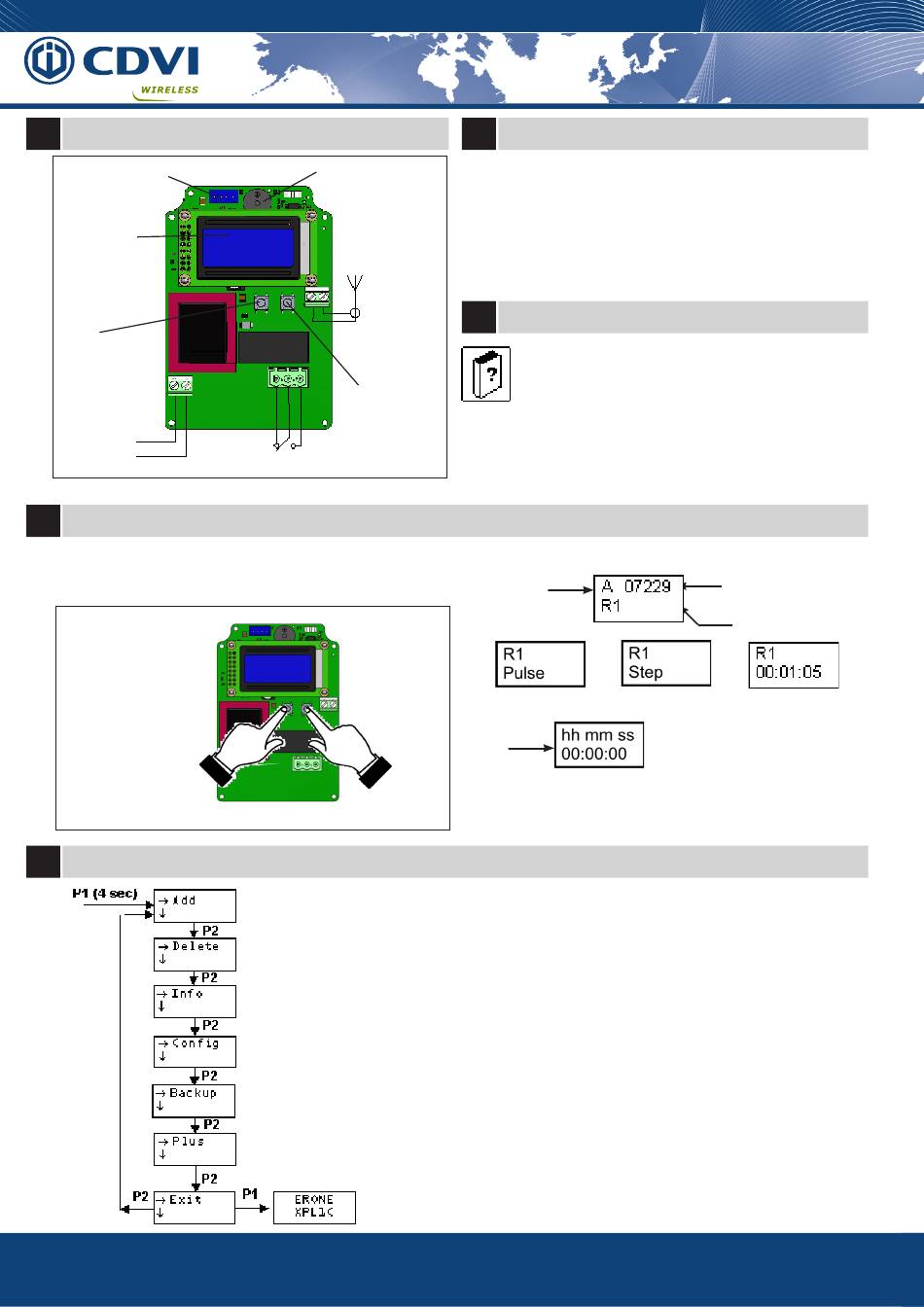

Layout & Wiring
Connector for
backup memory
Backlit
LCD Display
P1
L
230 Vac
N
7
Display Legend
There are 2 methods available:
1) Using P1 and P2 throughout the menu
2) Remote from the receiver, using a transmitter already in the receivers
memory (Mode PLUS ).
P1 : enter the menu ( 4 sec.)
or
confirm the choice
8
Programming / Navigation menu
The installer's choice
Buzzer
ERONE
XPL1V
Antenna
RG58
P2
NO
NC
C
ERONE
XPL1V
P2 : navigate
the menu
Add: Add transmitters s/n
Delete TX : Delete a single transmitter, the button of a transmitter, a transmitter
from a list , all transmitters Reset to factory default
Info relay : Display relay operating mode, the number of Tx memorized, the of
Transmitters, the SW release.
Config relay
Set relay operating mode ( pulse , step, timed , On/Off)
Set delay time of relay
Backup to : data backup to an external memory
Restore from : data restore from an external memory
Plus ON : Enable remote transmitter memorization
Plus Limited : Enable remote transmitter memorization only using a TX «master»
( see chapter 12 )
Plus OFF : disable remote transmitter memorization
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
5
Compatible transmitters
Erone - S2TR2641E2-E4-E2M
Erone SETR2641AM1, SETR2641AM2
Erone S3TR2641T1-T2-T4
Erone SETR2641TM
Erone S7TR2641E4
Erone FKT2641E1 - FKTHS2641E1
CDVI GALEOR
6
Warnings
The receiver allocation is very important for the best operation of the
system. Place the receiver far from interference sources such as big
magnetic fields or radio emissions. The installation and the positioning of
the antenna is very important as well. Before installing the antenna it is
advisable to make some tests on the site.
The distance between 2 receivers must be at least 1,5m.
The appliance full complies with the requirements of the following
European Directives : 2006/95/CE, 2004/108/CE, 99/05/CE and the
Standard EN 60335-1.
Fig. 4
Button activated
Relay 1 : Pulse
Menu
Timed
Fig. 5
TX Serial number
Relay activated
Relay 1 : Step Relay 1 : Timed
The factory value for the timing is
1 sec. Use P1 to scroll the digits
and P2 to confirm
