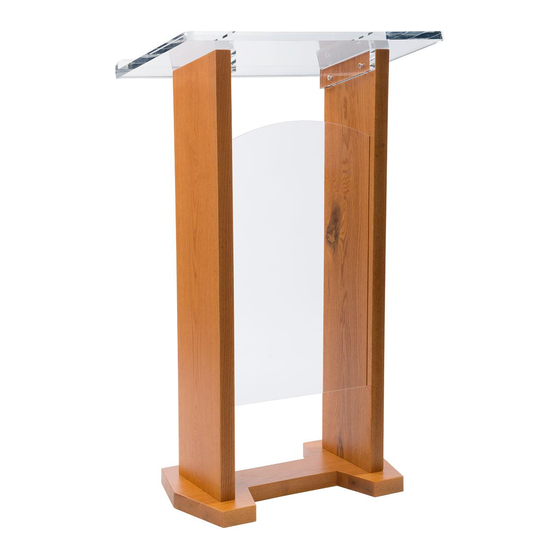

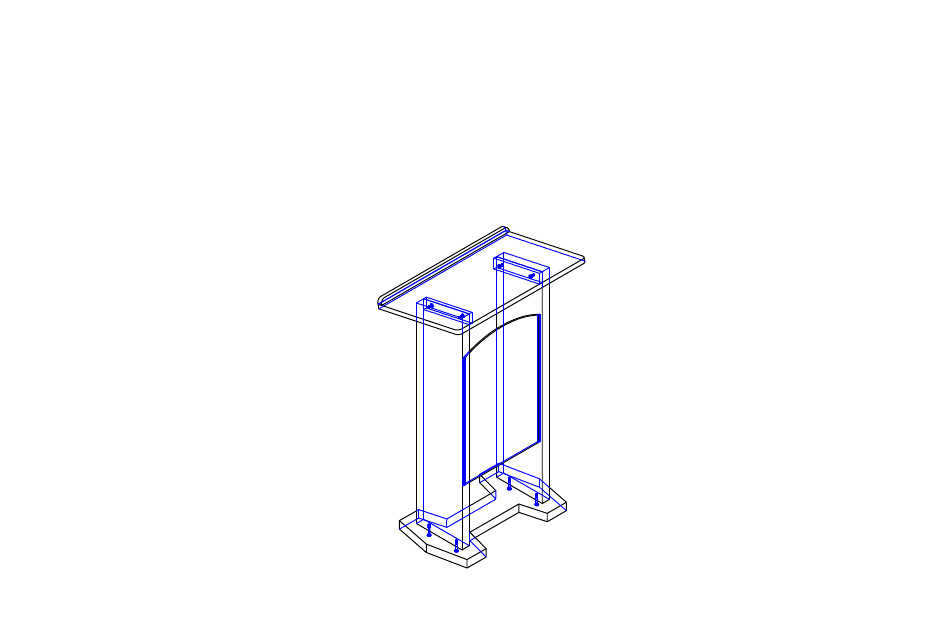

- Page 1 LECTWFANAO LECTWFANMB LECTWFAWDO Assembly Instructions (Requires Two People)
- Page 2 Hardware: Lectern Parts: 1. Clear Reading Top 5. (4) Long Flat Head Screws 2. Wood Base 6. (4) Short Flat Head Screws 3. Wood Side 7. Philips Head Screwdriver (Not Shown) 4. (2) Clear Front Panel 1. Clear Reading Top 6.
- Page 3 Step#1: Attaching the Base to the Body sides A) Align the pre-drilled holes in the Wood Base with threaded inserts in the Body Sides. B) Using the provided screwdriver, attach the Base to the Wood Sides with (4) Long Flat Head Screws as illustrated in Figure 2. Tip: Do not fully tighen these screws until is in this step.
- Page 4 Step#2: Attaching the Clear Front Panel to the Body Sides Figure 4 Figure 3 A) Hold the stand vertical as illustrated in Figure 3 after Step#1. B) Softly slide the Clear Front Panel into the slots of the body sides until the side slots fully cover the edge of the Clear Front Panel.
- Page 5 Step#3: Attaching the Clear Reading Top to the Body Sides Top A) Position the Lectern on a clean flat surface. B) Align the pre-drilled holes in the Reading Top with the threaded inserts in the Body Sides. C) Using the provided screwdrivers, attach the Reading Top to the Body Sides with (4) Short Flat Head Screws as illustrated in Figure 7.
