Displays2go LTCEIL20 Installation Manual

Item No.:LTCEIL20
Installation guide
Guide d'installation
Installationsanleitung
Guia de instalación
Guia de Instalação
Guida d'installazione
組み立ての説明
Инструкция по установке
安装说明
-2
5
-
400X400 30kg 26"-55" 510 810mm

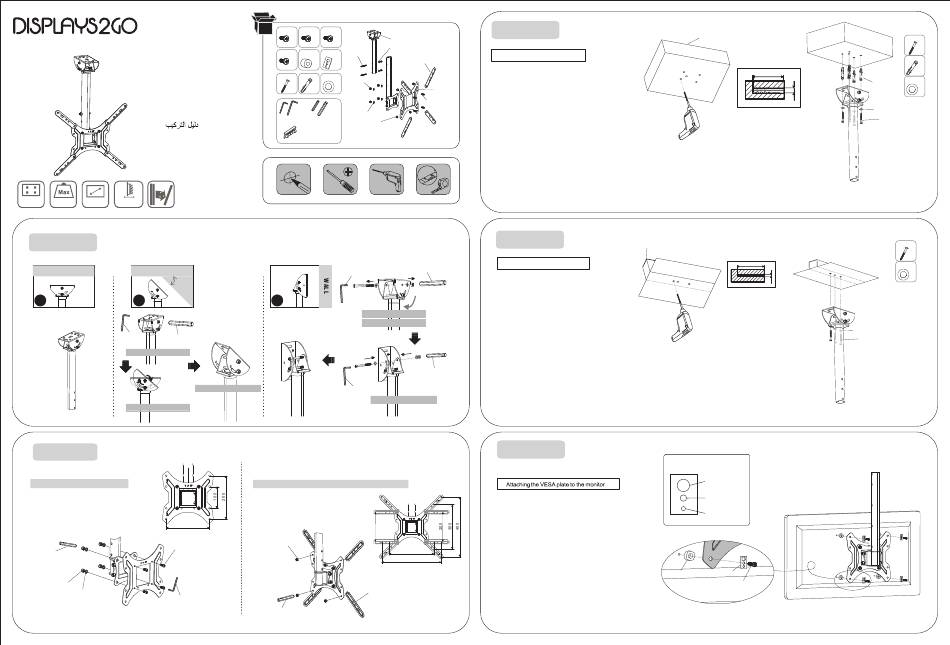

STEP1

WALL WALL
0~45°
a b
5x5
M8
Allen Key
Box Wrench
Loosen the adjusting nuts
0~45° 0~45°
Tightening the adjusting nuts
Adjustment angle

STEP2

VESA: 200X100 /200X200
200
M6x16 screw
M6
(4PCS)
Box Wrench
M6 nut
(4P CS)
M6 washer
4x4
(4PCS)
Allen Key
A1 A2 A3
x4 x4 x4
Wall plate
M4x25mm M5x25mm M6x25mm
M8 washer
M8x55 screw
(2PCS)
A4 A5 A6
(2PCS)
x4 x4 x4
adaptor
(4PCS)
M8x25mm
B1 B2 B3
x5 x5 x5 M6 nut
(4P CS)
TV plate
M6x16 screw
(4PCS)
x2
x2
M6 washer
(4PCS)
4x4/5x5
M6/M8
M8 nut
Allen key
box wrench
(6P CS)
Magnetic removable
x1
bubble level
M8
5x5
Box Wrench
Allen Key
c
Loosen the adjusting nuts
Adjustment angle
M8
Box Wrench
5x5
Allen Key
Tightening the adjusting nuts
VESA: 300X200 / 300X300/400X200 /400X400
M8 nut
(4P CS) 300
400
adaptor
(4PCS)
M8
Box Wrench
STEP3-A
Solid concrete mounting
STEP3-B
Wood stud
Wood Stud Mounting

STEP4-A

Solid concrete
60mm
Φ3/8
(10mm)
60mm
Φ3/16 (5mm)
B3
Square washer(A6)
Large hole for
M8 screws
Medium hole for
M5 and M6 screws
Small hole for
M4 screws
A6
A5
A1-A4
B1
x5
B2
x5
B3
B2
x5
B3
B1
B1
x3
B3
x3
B1
