Displays2go ARTSNFF6 Assembly Instructions

ASSEMBLY INSTRUCTIONS

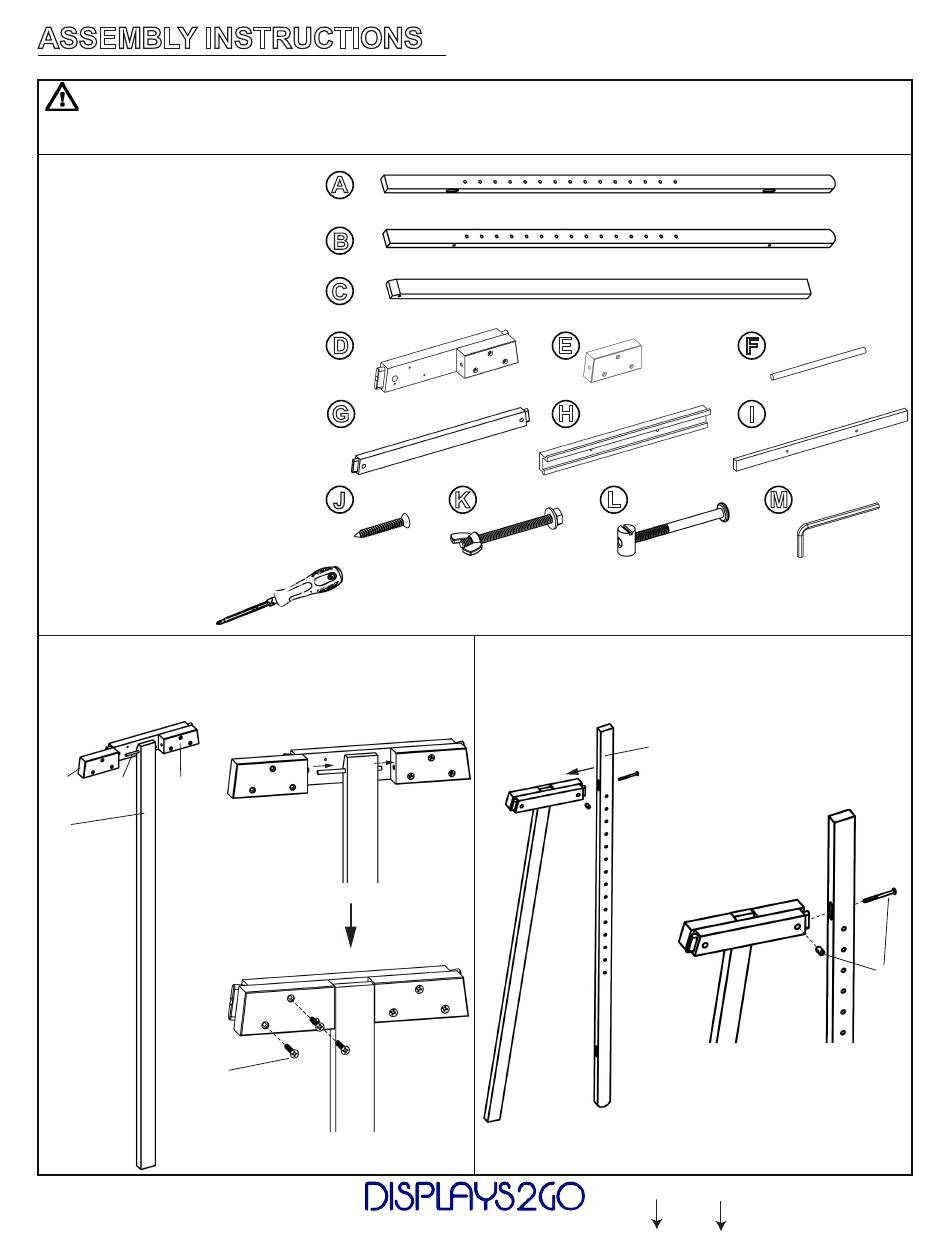

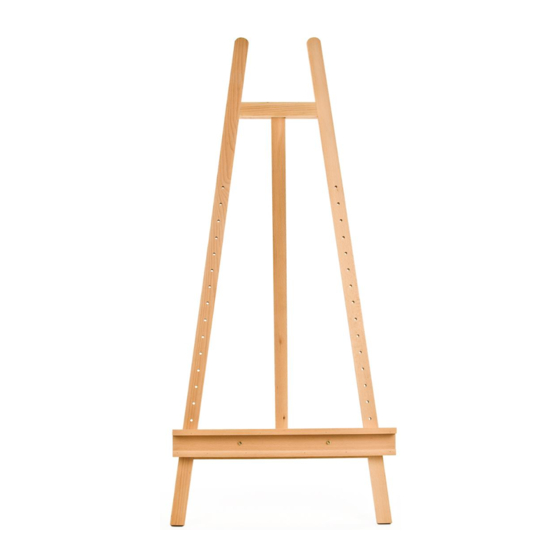

ARTSNFF6 - Wooden Easel with Shelf

IMPORTANT SAFETY INFORMATION:

Read all instructions before start installing the unit. Displays2go is not responsible for any damage or injury
caused by incorrect assembly or use.

PARTS LIST

A. Front Leg - Right
B. Front Leg - Left
C. Rear Leg
D. Top Rail
E. Block
F. Pin
G. Bottom Rail
H. Canvas Shelf
I. Secure Bar - Shelf
J. Wood Screw
K. Screw with Wing Nut
L. Hex Screw with Lock Nut
M. Hex key

TOOLS NEEDED

- Flat-head Screwdriver
- Phillips Screwdriver
1. Connect rear leg (C), wood block (E) and top rail (D) with
metal pin (F), see the image below.
Secure the wood block by using wood screws (J) with a
Phillips screwdriver.
E F D
C
J
Ver. 12/18
A
X1
X1
B
X1
X1
C
X1
X1
X1
D
X1
X1
G
X3
X2
X4
X1
J K
E
H
L
2. Connect 1 front leg (A) with the assembled rear leg.
Unscrew and insert the lock nut (L) into the pre-drilled hole
on the top rail, tighten the screw (L) from the side with
provided hex key (M).
A
Tips: Adjust the lock nut with a flat head screw driver to help
threading in the hex screw.
F
I
M
L
1 of 2
