User Manual
V21.03
Model: RCCDIGITALS

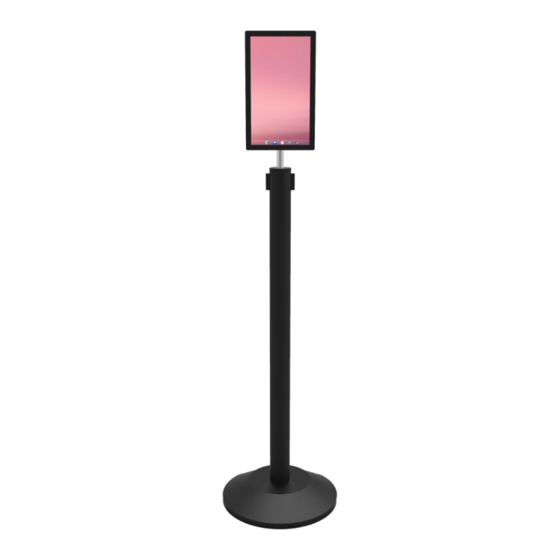

Description: 13.3" Digital Stanchion Post
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1 / 23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go RCCDIGITALS
Summary of Contents for Displays2go RCCDIGITALS
- Page 1 User Manual V21.03 Model: RCCDIGITALS Description: 13.3” Digital Stanchion Post Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 Steps for Assembly ........................6 Remote Control ........................7 Description of Basic Operation ....................8 Power on/Standby ........................8 About Launch Desktop ........................ -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 WARNING ⚫ Do not use power supply other than AC 110V, 60Hz. ⚫ Cut off the power supply before connecting or disconnecting any cables. ⚫ Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. ⚫...
-
Page 5: Assembly And Connection
CAUTION ⚫ Do not let children climb onto the Digital Signage. ⚫ Keep the small parts away from children to prevent them from swallowing. ⚫ If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug. ⚫... -
Page 6: Interfaces
Interfaces 1. USB interface; 2. USB interface; Note: Please pull out the power plug before installing or disassembling the unit! Steps for Assembly 1. Open the top cover as shown in Fig. 2; 2. As shown in Fig. 3, remove the EPE foam on top inside; 3. -
Page 7: Remote Control
Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ⚫... -
Page 8: Description Of Basic Operation
Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on; if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”... -
Page 9: File Manager
File Manager 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 2); 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. -
Page 10: Status Of Menu Bar
Icon Function WIFI switch Bluetooth Data usage Display Notifications Sound Apps Screenshot Setting Storage Battery Memory Users Location Security Accounts Google Languages & input Backup & reset Date & time Status of Menu Bar ▽ Click " " in the menu to hide the status bar (Fig. 1). Fig. -
Page 11: Diviex App Introduction
DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements： RK3288 16GB Operating system Android 7.1 How to upload media files: Step 2: Make new directory named “MediaFolder” in root directory in U disk. Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". - Page 12 Step 4: When the screen shows “Copy finished” after “USB Disk:”, 12 / 23...
-
Page 13: Settings
Settings: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. ⚫... - Page 14 ⚫ Image deletion Click " " to delete unwanted pictures 14 / 23...
-
Page 15: Music
Music: List all music files int Playlist library ⚫ Add music to playing list music from Playlist library, you can click right arrow, music title will show the number of playlist music. ⚫ To remove background music from the playlist, click the left arrow in the playlist Factory Reset: 1. -
Page 16: Screen Rotate
Screen Rotate: 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System aide” into Fig. 2 3. Choose the degree you would like to Rotate screen, then click “Confirm”. After the restart, the screen will be rotated (Fig. - Page 17 Fig. 4 Fig. 5 17 / 23...
-
Page 18: Technical Specifications
Technical Specifications ITEM SPECIFICATION LCD size 13.3” Light source LED backlight Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 350cd/m (typ.) Contrast (typ.) 800:1 (typ.) Response (ms) 30ms (typ.) Panel Pixel pitch 0.15 (H) mm * 0.15(V) mm Refresh rate 60Hz Viewing angle 178°... - Page 19 Supported Video Files AVI, MPEG4, WMV, MKV, FLV, MP4, MOV Supported Photo Files JPG, JPEG, BMP, PNG, GIF Audio output, supported files Left and right audio channel, MP3 Functions RTC (real-time clock) Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI...
-
Page 20: Troubleshooting
Troubleshooting the Digital Signs – RCCDIGITALS Issue Probable Cause Solutions ⚫ ➢ No picture or sound Unit not plugged into wall outlet □ Check that the unit is plugged into wall ➢ Power cord not properly outlet. connected to the terminal on the □... - Page 21 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 22: Cleaning And Maintenance
➢ App is defective Copy > Home > NAND > MediaFolder > ➢ Android board is defective. Images> Editor > Paste Open DiViEx app and select desired trasitions, slide time and looping > Play MX Player steps > Follow same steps as DiViEx App >... -
Page 23: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE О О О О О Display О О О О × × Shell О О О О О Circuit board assembly * О...
