Displays2go TVJT321G1 Assembly Instructions

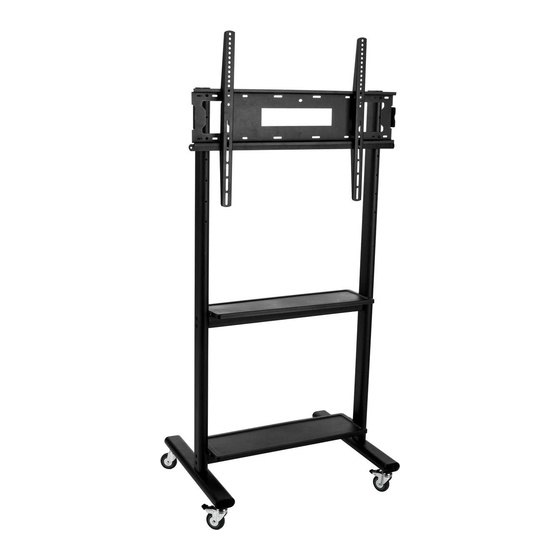

TV STAND WITH SHELF AND WHEELS - TVJT321G1
1 Hanging Panel
2 Moun�ng Bracket
3 Safety Bar
4 Le� Upright
5 Right Upright
6 Bo�om Extrusion
7 Media Shelf
8 Steel Plate
9 Rectangular Steel Tube
10 Caster
11 Caster with Brake
12 T Shaped Plate
Product Specifica�on
Product weight: 24kg
Monitor Size Range: 32"-80"
Maximum load: 50kg/110lbs
VESA size: 200x200mm, 400x400mm, 600x400mm, 800x400mm, 800x600mm
IMPORTANT: Please take �me to read and understand all of the steps
needed to finish the assemly before installing the unit. D2G is not responsible
for any personal injury or product damage due to mishandling, incorrect mount-
ing, incorrect assembly or incorrect use of this product.
Check to see that all hardware are present before assembling. If any hardware
required is missing, please contact D2G customer service at 1-800-572-2194.
CAUTION: This LCD/Plasma TV stand is intended for use with television
that does not exceed the maximum weight capacity designated. Using this
mount with products heavier than the maximum weight indicated may result in
instability causing serious injury.
Keep these installa�on instruc�ons in an easily assessible loca�on for future
reference.
2 people recommended. A phillips screw driver and a wrench is needed.
Ver. 02/18

PARTS

1pc
2pcs
1pc
1pc
1pc
2pcs
2pcs
2pcs
2pcs
2pcs
2pcs
4pcs

HARDWARE

A M8x60mm Hex Head Screw
B End Cap 1
C End Cap 2
D ɸ8 Spacer
E M8x40mm Hex Head Screw
F Washer
G M6 Nut
H ɸ6 Washer
I M6x20mm Hex Screw
J M5 Allen Key
K M5x8mm Flat Head Screw
L M6x90mm Pan Head Screw
1. Open all boxes in the package and check all
parts and hardware in zip lock bag required for
installa�on.
If there are any missing/damaged parts, do not
install the unit and contact Displays2go custom-
er service for support.

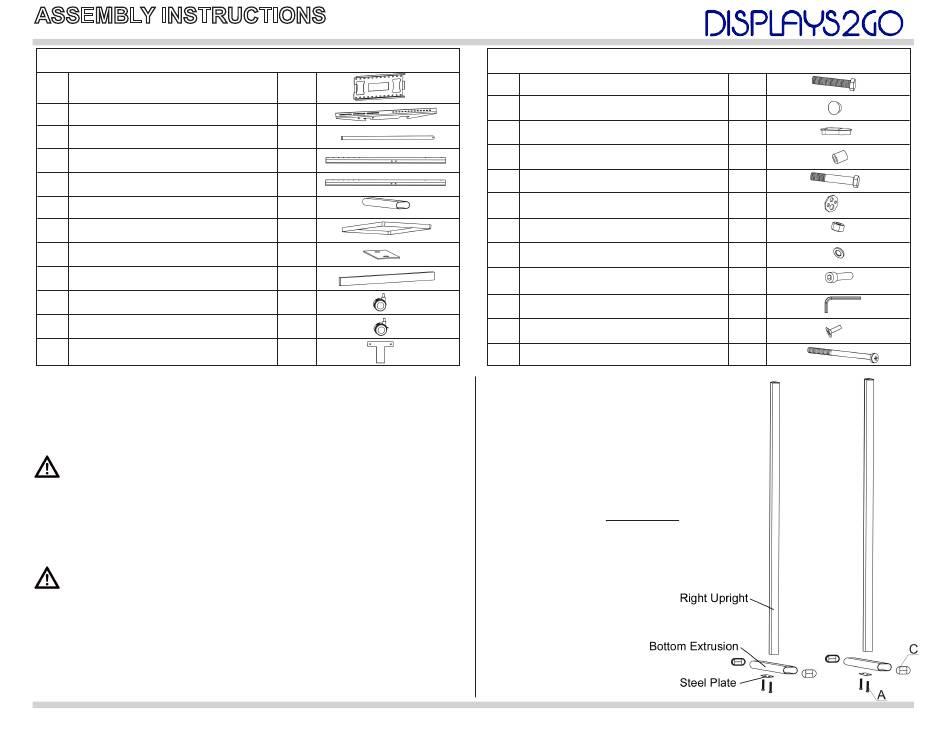

Connect Le� Upright, Bo�om Extrusion and (1)
Steel Plate by screwing (A) into the bo�om of
the Upright. Place (2) End Cap 2 (C) at both
ends of the Bo�om Extrusion column and push
it into the extrusion.
Repeat the above to finish assembling the Right
Upright.
4pcs
8pcs
6pcs
4pcs
4pcs
4pcs
4pcs
8pcs
8pcs
1pc
8pcs
4pcs
1 of 2
