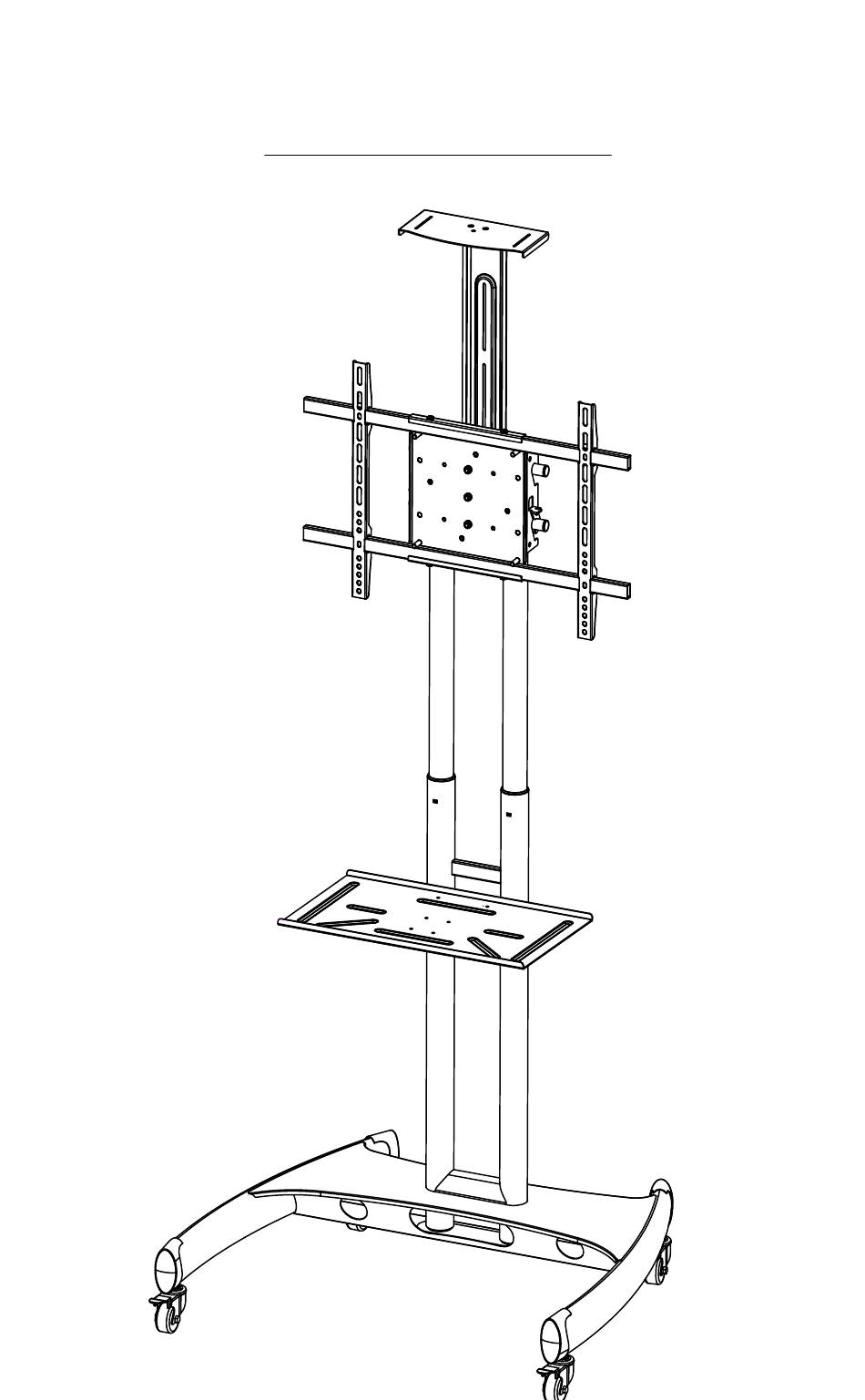

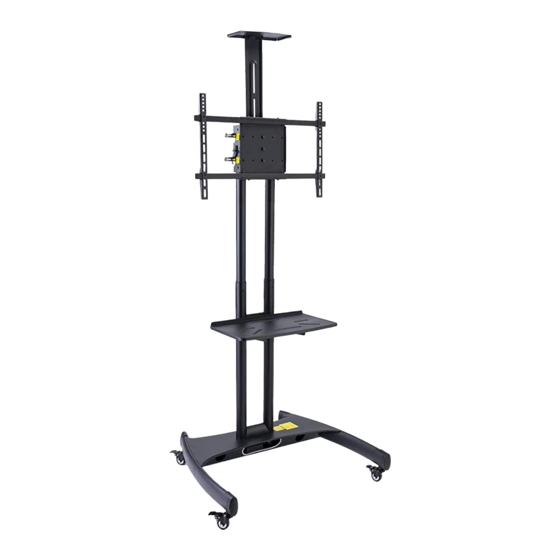

- Page 1 CFSTN2B Stand Instructions...
-
Page 2: Table Of Contents
Table of Contents Table of Contents and Warnings Part List Assembly and Installation 1. Adjust upper and lower poles 2. Attaching to the base assembly 3. Install steel cross rods 4. Install AV Shelf 5. Install the TV 6. Install mount to frame 7. -
Page 3: Part List
A1x1 B3x1 B2x2 E1x1 A2x4 A3x1 B1x1 E2x1 C1x1 C2x2 C3x2 B4x4 D1x1 D2x1 D3x1 D4x2 Φ 12... -
Page 4: Adjust Upper And Lower Poles
Adjust upper and lower poles Locate the spring plungers inside the bottom grommet hole of pole B1 (If your unit has B3 cross bar pre-installed remove prior). Starting with the right side pole B2, push the spring plunger down and pull B2 up slightly and twist it slightly so that the spring plunger remains Hold the poles B1 &... -
Page 5: Attaching To The Base Assembly
Attaching to the base assembly Thread casters A2 into the bottom of base A1. Make sure all casters a re locked to prevent movement during installation . With allen wrench M attach lower poles B1 to base A1 with screw G. First through the bottom of base A1, then through the top of base A. -
Page 6: Install Steel Cross Rods
Install steel cross rods Phillips screwdriver Remove the pre-installed Refasten rods B3 screws on rod B3. Making with screws. sure the upper poles B2 are aligned, slide rods B3 into the top openings . Height adjustment Slide the upper poles B2 up or down to the different spring plunger holes for your desired height . -
Page 7: Install Av Shelf
AV shelf assembly and installation... -
Page 8: Install The Tv
Install the TV Remove pre-installed screws Slider plate (B, C)+D,A VESA: 200x200mm Spacer Suggestions Phillips screwdriver B, C... -
Page 9: Install Mount To Frame
Install mount to frame Lift up lock hook before installing mount Make su re casters are locked prior to installation Secu re lock hook fully Heavy Lifting: Assistance Requi red Attach hooks on C1 onto cross rods B5 Lock not included... -
Page 10: Webcam Shelf Installation
Webcam shelf installation Adjustable height Phillips screwdriver... -
Page 11: Adjusting The Mount
Adjusting the mount Remove pre-installed screws Re-attach screws Phillips Phillips screwdriver screwdriver Swivel 90°...
