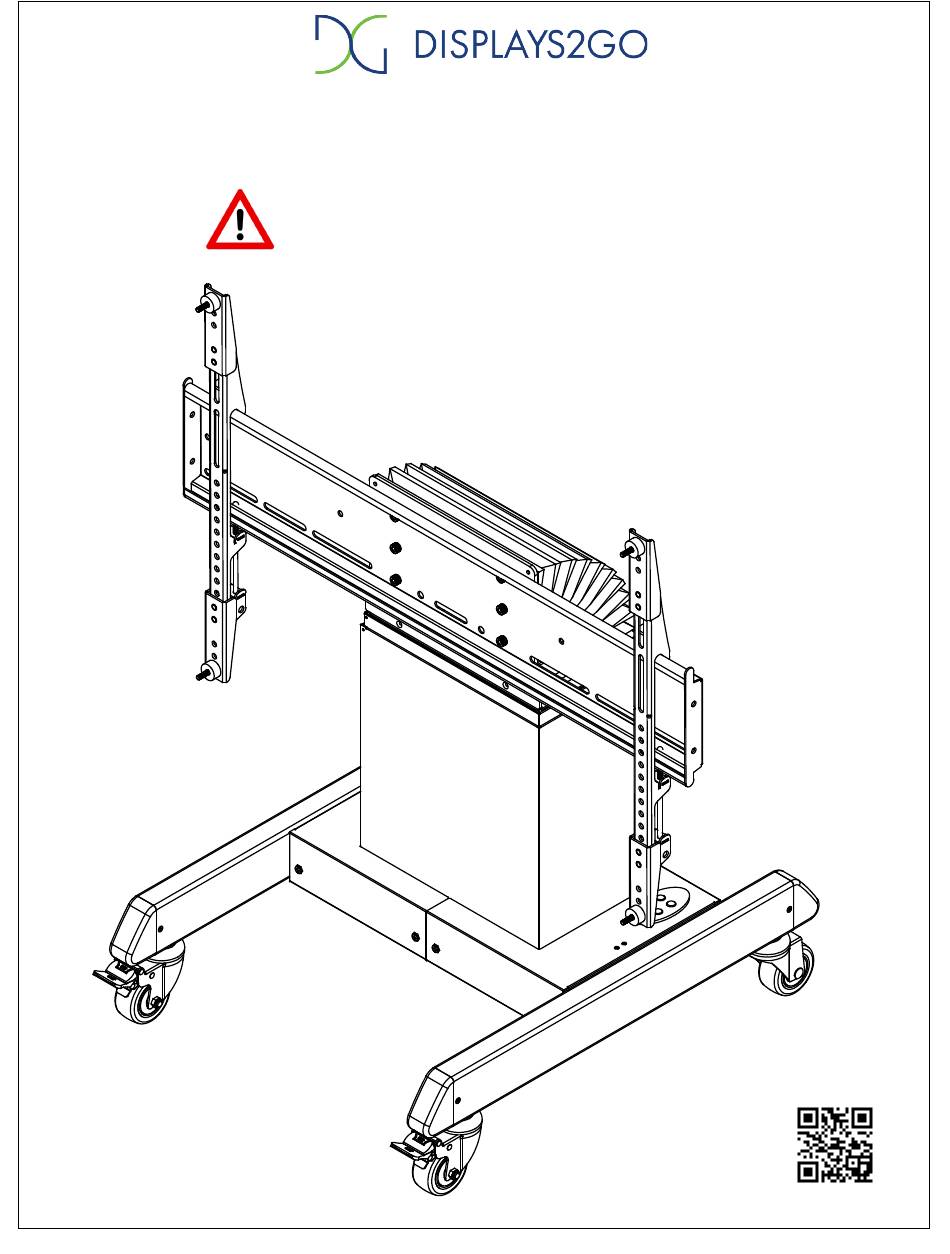

ASSEMBLY INSTRUCTIONS
DGMLTSBK - Motorized Tilt Digital Signage Stand
V21.03
Max Load: 265 lbs
If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2g customer service 1-844-221-3393.
WARNING:
Unplug the power cord while not using.
Keep hands and fingers clear of the moving parts.
Keep out of reach of children.
Scan QR code to visit
the product page:
1 of 8
Advertisement
Related Manuals for Displays2go DGMLTSBK
Summary of Contents for Displays2go DGMLTSBK
- Page 1 Keep out of reach of children. Max Load: 265 lbs Scan QR code to visit the product page: If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2g customer service 1-844-221-3393. 1 of 8...
-
Page 2: Part List
Part List: A.1pc B.2pcs C.1pc D. Remote Control 1pc E.M6 wrench F.M8×10 8pcs G.M8 8pcs (1 battery included) Replacement battery: 1X A23 H.4pcs I.4pcs J.M8×16 6pcs K.M8 6pcs L. Screw M8x20 6pcs M4x16 8pcs M6x20 6pcs M4x25 8pcs M6x40 6pcs M8x40 6pcs M5x16 8pcs M6x55 6pcs... - Page 3 1. Plug the power cord into the power outlet. 2. A steady red light indicates the unit is powered on. 3. Push the buttons on the base to adjust the angle and height. 3 of 8...
-
Page 4: Top Side
4. Attach the mounting bracket to the top of the stand and secure it with hardware as shown. Top side. 4 of 8... - Page 5 5.a Attach the mounting brackets to the back of your display signage. Use spacer as needed. 5.b For oversized digital signage, use extension brackets as shown. 5 of 8...
- Page 6 6. Carefully hang your digital signage onto the bracket on top of the stand. Secure the signage by fastening the screws with a phillips screw driver as shown. 6 of 8...
- Page 7 7.a In case the remote control is not linked to the stand, use a small pin to press the link button besides the indicator light . 7.b While the indicator light is flashing, press the button shown below on the remote control and it is now paired to the stand.
- Page 8 8. You can set your digital signage at the desired height and adjust the angle of display using either the remote control, or the control button on the base. 8 of 8...
