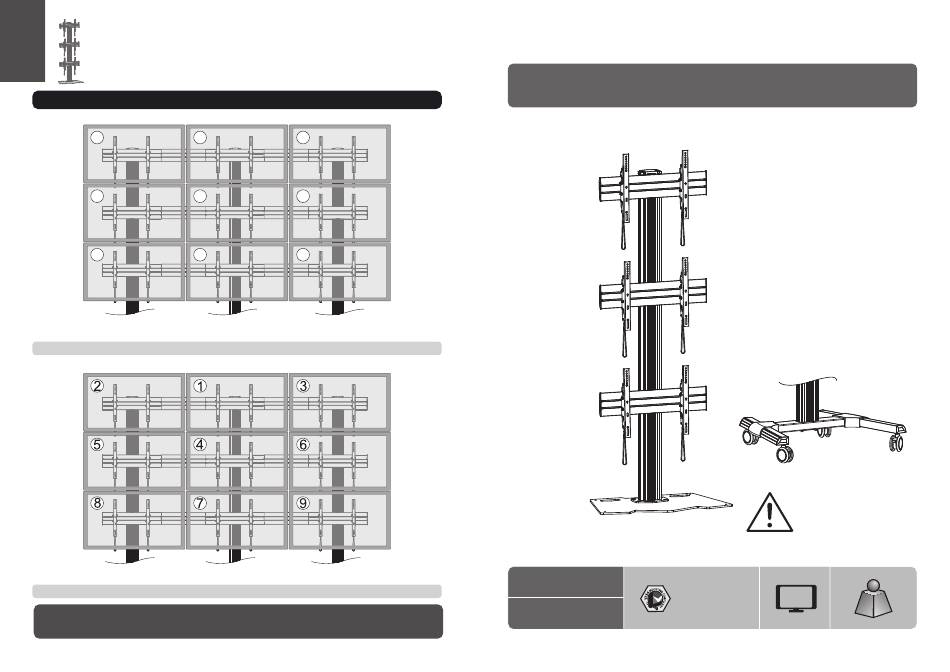

Note: The displays are installed by the numerical order given.
Note: The angle of displays are adjusted by the numerical order given.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
9
6
3
Video Wall Stand and Accessories
VWALL3+ VWALLBS
200x200/300x300
400x200/400x400
600x400
VWALL3+ VWALLWH
INSTALLATION MANUAL
CAUTION:
DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
55"
50kgx3
50kgx3
MAX
(110lbsx3)
(110lbsx3)
RATED
RATED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Displays2go VWALL3+ VWALLB
Summary of Contents for Displays2go VWALL3+ VWALLB
- Page 1 INSTALLATION MANUAL Video Wall Stand and Accessories Note: The displays are installed by the numerical order given. CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! VWALL3+ VWALLBS 200x200/300x300 Note: The angle of displays are adjusted by the numerical order given. 55"...
-
Page 2: Component Checklist
VWALLWH NOTE: Read the entire instruction manual before you start installation and assembly. WARNING middle base (x1) left base (x1) right base (x1) left cover (x1) right cover(x1) • Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. - Page 3 VWALLBS 1a-2b. For the Floor Stand Mounting G/Z2 1a-1. Installing the Rubber Pads Remove the cable ties. Attach the column to the steel base using the appropriate screws. Tighten all screws with an Allen key. • Lift the steel base by grasping the cable ties. •...
-
Page 4: Installing The Top Cover
1b-3. Installing the Covers Tighten all screws to secure them with an Allen key. X+5mm (X=Height of display) G/Z2 X+5mm (X=Height of display) 2. Installing the Universal Plates 3. Installing the Top Cover Attach the top cover to the column using the appropriate screws. - Page 5 4. Installing the Adapter Brackets 5-2 For Recessed Back Screens or to Access A/V Inputs Top of the display M-C M-D/M-E M-D/M-E M-D/M-E 5-1 For Flat Back Screens Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screens. •...
- Page 6 G/Z2 Use the padlocks to prevent the displays from being stolen (The padlocks are not included). G/Z2 If the displays tilted down, rotate the adjustment screws as shown in figure. 7. Micro-Adjustment G/Z2 down Note: Adjust the angle of displays by the numerical G/Z2 order given.
-
Page 7: Cable Management
10. Multi-screen Combination Solution 8. Cable Management Loosen the screws in the plastic covers in order to remove the plastic covers. Insert the cable clamps horizontally into the plate slots, then turn the cable clamps to the vertical to secure them. 9. - Page 8 X+5mm Insert the connecting fittings (X=Height of display) to the appropriate position along the universal plates rails. X+5mm (X=Height of display) Note: The displays are installed by the numerical order given. Note: The position which the connecting fittings insert to the universal plate is Note: Make sure that the determined by the size of displays.
