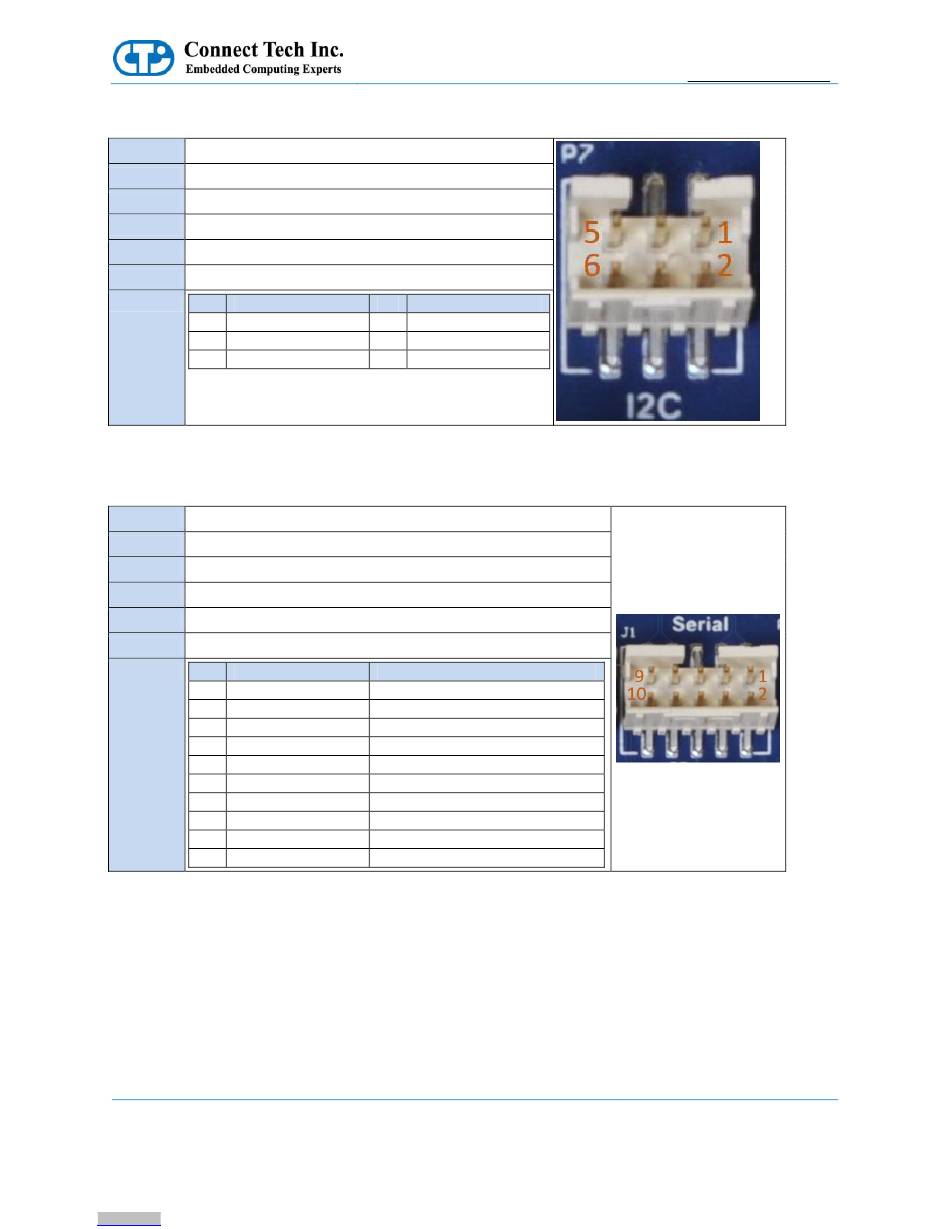

I2C Header

Function
Location
Type
P/N
Mating
Cable
Pinout

Serial (RS-232/485) Header

Function
Location
Type
P/N
Mating
Cable
Pinout
Document: CTIM-00456
Revision: 0.00
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
I2C Header
P7
FCI Minitek Double Row 3 x 2
98424-G52-06LF
10073599-006LF – Manufacturer: FCI
CBG112
Pin Description
1 I2C_GP1_SCL
3 I2C_GP1_SDA
5 -
System Control Header
J1
FCI Minitek Double Row 5 x 2
98424-G52-10LF
10073599-010LF – Manufacturer: FCI
CBG111
Pin Signal
1 232TX0/485TX0+
2 232RX0/485RX0+
3 485TX0-
4 485RX0-
5 232/485-GND0
6 232/485-GND1
7 232TX1/485TX1+
8 232RX1/485RX+
9 485TX1-
10 485RX1+
Connect Tech Inc. 800-426-8979 | 519-836-1291
Pin Description
2 GND
4 -
6 -
Description
RS-232 0 Transmit / RS-485 0 Transmit +
RS-232 0 Receive / RS-485 0 Receive +
RS-485 0 Transmit -
RS-485 0 Receive -
Port 0 Ground
Port 1 Ground
RS-232 1 Transmit / RS-485 1 Transmit +
RS-232 1 Receive / RS-485 1 Receive +
RS-485 1 Transmit -
RS-485 1 Receive -
Page 36 of 43
Astro Carrier for Jetson TX1
Users Guide
www.connecttech.com
Date: 2016/02/25
