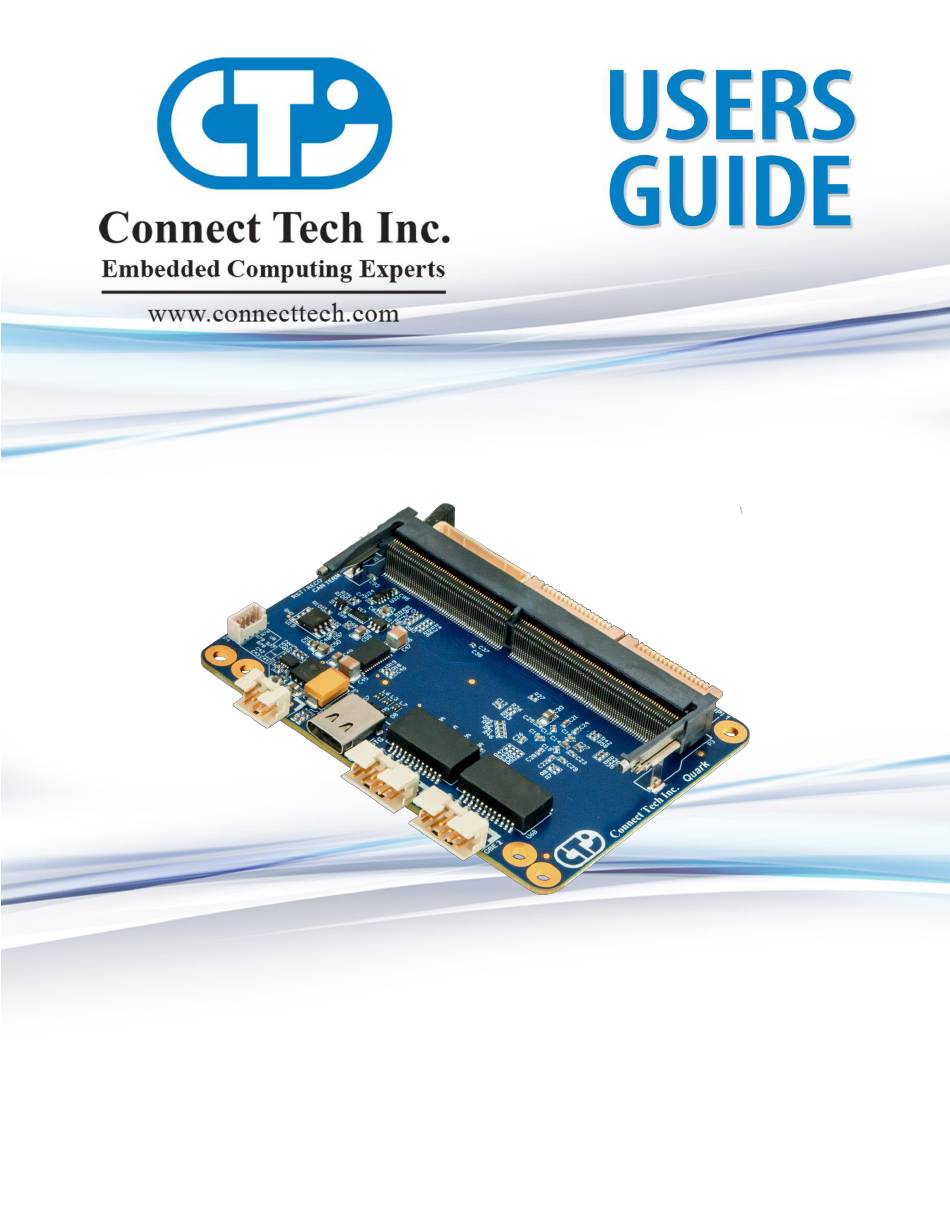

- Page 1 Quark USFF Carrier User Manual Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00080 Revision 0.01 2020-02-27...
-
Page 2: Table Of Contents
LED Indicators .............................. 17 Description ............................17 Typical Installation ..........................17 Thermal Details ........................... 18 Cable Information ..........................18 Connect Tech Custom Thermal Solutions .................... 19 Current Consumption Details ......................20 NVIDIA® Jetson™ Nano ........................20 NVIDIA® Jetson™ Xavier NX......................20 Document: CTIM-00080... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
Connect Tech Inc. provides a one-year Warranty for this product. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 5: Esd Warning
ESD Warning Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: •... -
Page 6: Introduction

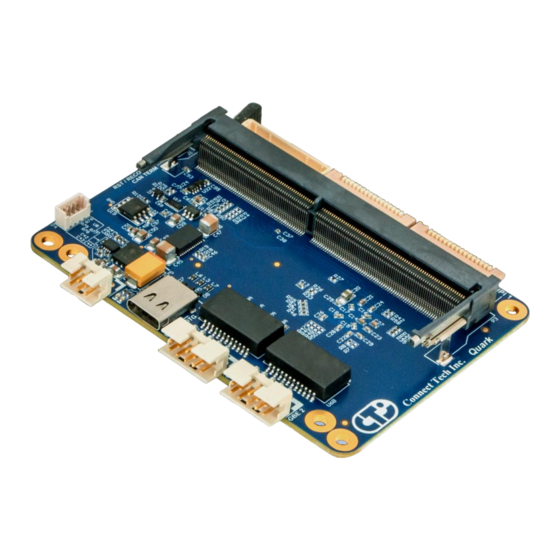

Introduction Connect Tech’s Quark platform brings a low cost deployable Jetson solution to the market. The Quark’s design includes 2x Gigabit Ethernet, 1 x USB 3.1 (Gen 2) Type C with OTG support, 2 x MIPI CSI-2, Camera I2C Control, 6x GPIOs, 2x PWM, 3xUART, 1x CAN, 2x I2C, 1x SPI . -
Page 7: Product Overview
Quark USFF Carrier User Manual Users Guide www.connecttech.com Product Overview Block Diagram Document: CTIM-00080 Page 7 of 20 Date: 2020-02-27 Revision: 0.01 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Connector Locations
Quark USFF Carrier User Manual Users Guide www.connecttech.com Connector Locations Top View MIPI 2 I/O Header MIPI 1 RESET / Recovery Button Nano / NX Module Connector (P3) CAN 120Ω Termination Fan Header Power USB 3.1 GBE 1 GBE 2... -
Page 9: Connector Summary
Quark USFF Carrier User Manual Users Guide www.connecttech.com Connector Summary Designator Connector Description 52610-1572 MIPI CSI-2 Camera Connector 52610-1572 MIPI CSI-2 Camera Connector 98464-G61-10LF GBE1 - Jetson onboard ethernet GBE2 – I210 ethernet 98464-G61-10LF 2309413-1 Module Board-To-Board Connector for: •... -
Page 10: Detailed Feature Description
Description The NVIDIA Jetson™ Nano / NVIDIA® Jetson™ Xavier NX processor and chipset are implemented on the Jetson™ Nano / Jetson™ Xavier NX Module. This connects to The Quark USFF Carrier via a TE Connectivity DDR4 SODIMM 260 Pin connector. -
Page 11: Mipi Csi-2 Connectors
Quark USFF Carrier User Manual Users Guide www.connecttech.com MIPI CSI-2 Connectors Description The NVIDIA Jetson™ Nano / NVIDIA® Jetson™ Xavier NX module will allow 2-Lane MIPI video input via the vertical FPC connectors. Function Description Location P1A, P1B P1A – CSI0 MIPI Lane usage P1B –... -
Page 12: Usb 3.0 Type-C Connector
Quark USFF Carrier User Manual Users Guide www.connecttech.com USB 3.0 Type-C Connector Description The NVIDIA Jetson™ Nano / NVIDIA® Jetson™ Xavier NX module will allow video input via the USB 3.0 Type-C connector. Function Description Location Type Wurth Electronics USB3.1 Type-C... -
Page 13: Microsd Card Connector
Quark USFF Carrier User Manual Users Guide www.connecttech.com MicroSD Card Connector Description The Quark USFF Carrier implements a MicroSD via P11 on bottom side of the carrier. Function Description Location Type Molex microSD Card Connector Carrier Connector Part Number: 1042391430... - Page 14 Quark USFF Carrier User Manual Users Guide www.connecttech.com Function Description Location Type Amphenol FCI MiniTek Series Connector Carrier Connector 98464-G61-06LF Mating Connector 90311-006LF Mating CTI Cable CBG112 Pinout Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6...
-
Page 15: I/O Header
Quark USFF Carrier User Manual Users Guide www.connecttech.com I/O Header Description The Quark USFF Carrier implements a DF20G-40DP-1V(56) Connector to allow access for additional GPIO and interfaces. Function Description Location Type Hirose 40Pin Connector, 1mm Pitch Carrier Part Number: DF20G-40DP-1V(56) - Page 16 Quark USFF Carrier User Manual Users Guide www.connecttech.com Pin 28 GPIO_02 +3.3V GPIO Pin 29 UART2_TX +3.3V UART (Console) Pin 30 GPIO_03 +3.3V GPIO Pin 31 UART2_RX +3.3V UART (Console) Pin 32 GPIO_04 +3.3V GPIO Pin 33 Signal Ground Pin 34 GPIO_05 +3.3V GPIO...
-
Page 17: Reset & Recovery Pushbutton
Reset & Recovery Pushbutton Description The Quark USFF Carrier implements a dual functionality pushbutton for both Reset and Recovery of the platform. To Reset the module, simply press and hold the pushbutton for a minimum of 250 milliseconds. To put the Jetson module into Force Recovery mode, press and hold the pushbutton for a minimum of 10 seconds. -
Page 18: Thermal Details
Thermal Details The Quark USFF Carrier has an Operating Temperature Range of -25°C to +85°C. However, it is important to note that the NVIDIA® Jetson™ Nano / NVIDIA® Jetson™ Xavier NX Module has its own properties separate to that of the Photon AI Camera Board. The Quark matches the Photon Operating Temperature Range of -25°C to +85°C. -
Page 19: Connect Tech Custom Thermal Solutions
Connect Tech Custom Thermal Solutions Connect Tech Inc. has three custom solutions available for customer implementation, namely, an Active Cooling Solution, Passive Cooling Solution, and Thermal Transfer Plate Solution. Please contact Connect Tech Inc. for more information regarding these options. -
Page 20: Current Consumption Details
Passive Cooling Software / BSP Details All Connect Tech NVIDIA Jetson based products are built upon a modified Linux for Tegra (L4T) Device Tree that is specific to each CTI product. The hardware configurations of CTI’s products differ from that of the NVIDIA supplied WARNING: evaluation kit.
