General Information

Control Panel

I
H
CONTROL
POWER
MAIN CIRCUIT
BREAKER
F
Control Panel with Power Zone (if equipped)

Control Panel Features and Functions

(A) DC circuit breaker
Resets the DC electrical circuit that powers the control
panel and engine components.
(B) AC circuit breaker
Resets the AC electrical circuit that powers the control
panel.
(C) Mast light switches/circuit breakers (4)
Power switches with internal breakers dedicated to indi-
vidual lights.
(D) Mast switch (if equipped)
Raises and lowers the mast on units equipped with an
electric winch.
(E) 120V/20A GFCI receptacle
Customer convenience receptacle for use in connecting
auxiliary equipment such as fans, pumps, or drills.
Includes a ground fault circuit interrupter (GFCI) test and
reset button.
18
B
A K
DC CIRCUIT MAST LIGHT CIRCUIT BREAKERS AC CIRCUIT
BREAKER BREAKERS

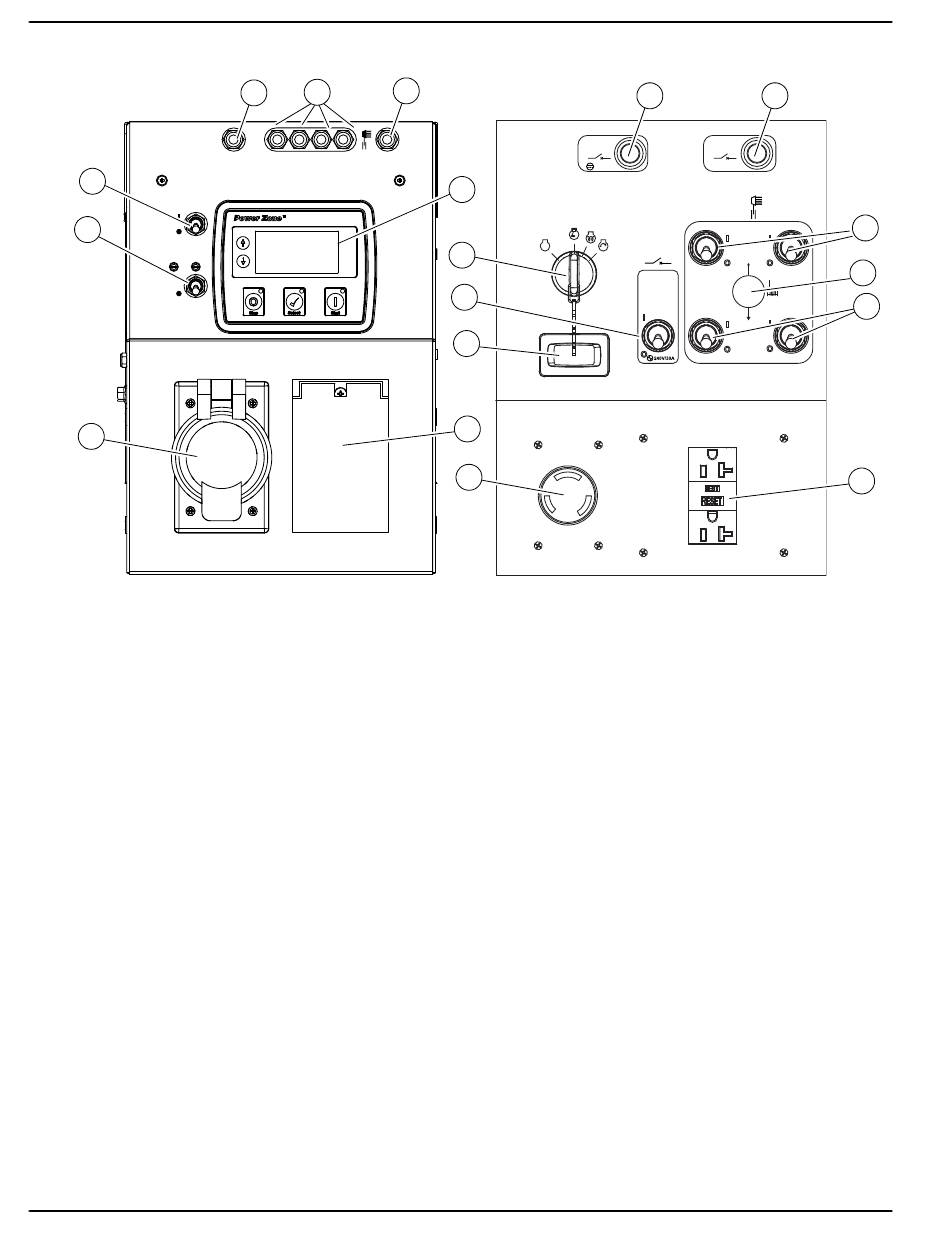

Figure 2-12. Control Panel Features
DC CIRCUIT
BREAKER
12V
J
15 SEC.
MAX.
STOP
L
H
G
E
F
Control Panel without Power Zone
(F) 240VAC/30A twist-lock receptacle
Customer convenience receptacle for use in connecting
auxiliary equipment such as fans, pumps, or drills.
(G) Engine hour meter
Displays number of hours the engine has run.
(H) Main circuit breaker
240V/30A breaker which disconnects power from the
lights and control panel.
(I) Control power switch
Turns the controller ON and OFF.
(J) Power Zone controller
Monitors the unit and indicates operational status and
fault conditions.
(K) Mast light circuit breakers (4)
Circuit breakers with internal breakers dedicated to
individual lights.
(L) 4-Position key switch
Operates the engine.
Owner's Manual for MLT6SM/6SK Light Tower
A B
AC CIRCUIT
BREAKER
120V
I I
O O
MAIN
BREAKER
240V
I
I I
O
O
O
C
D
C
E
004385a
