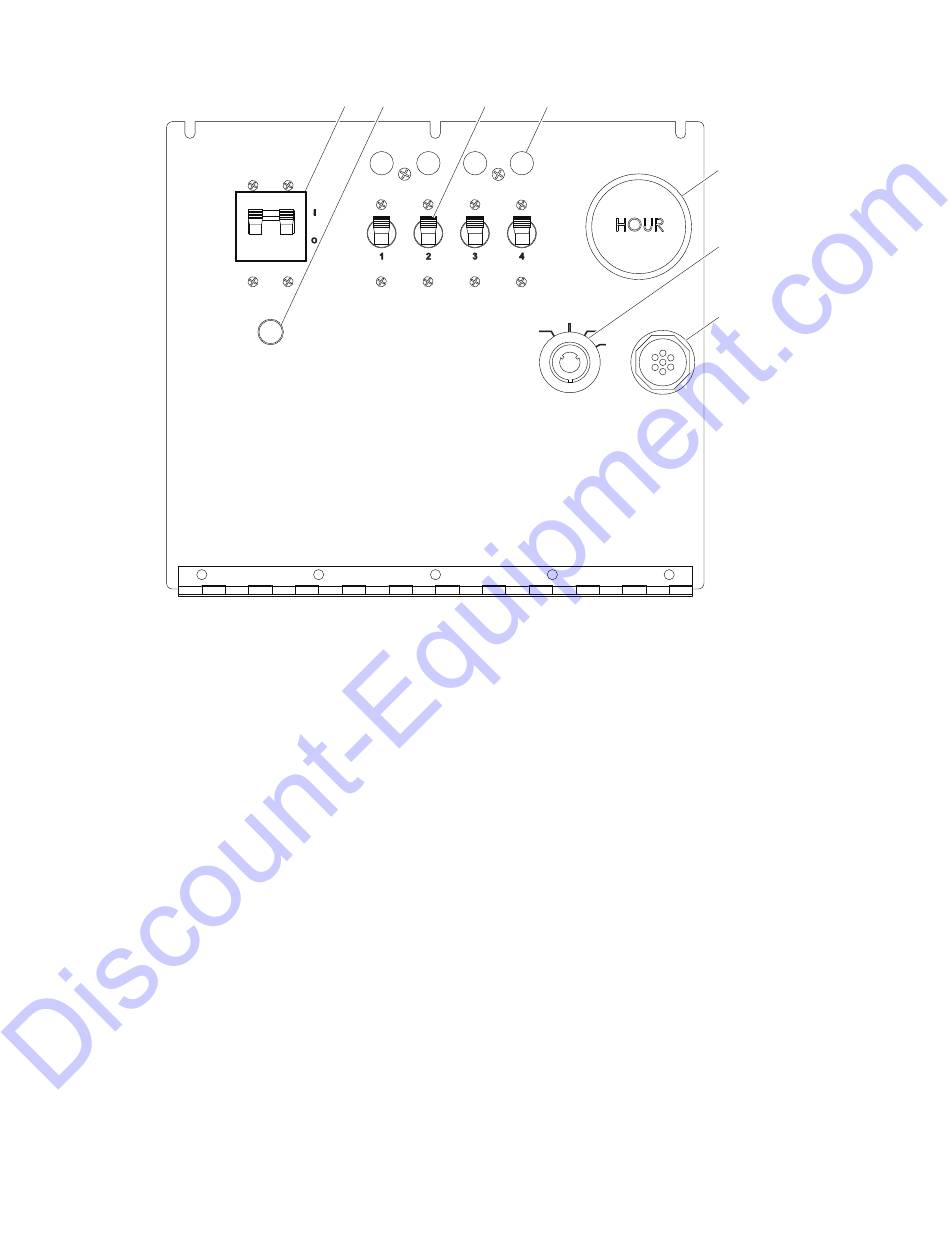

MAIN CONTROL PANEL

MAIN CIRCUIT
BREAKER
ON
TURN
MAIN
BREAKER
OFF
1. MAIN CIRCUIT BREAKER: This 240V (70A or 100A) breaker will disconnect power to the lights and receptacles.
2. CIRCUIT BREAKER INDICATOR LIGHT: This light indicates that the main circuit breaker must be opened
(switched off) before starting the engine.
3. LIGHT SWITCHES: One circuit breaker is supplied for each light.
4. BALLAST INDICATOR LIGHTS: Indicates power from the ballast to each light.
5. ENGINE HOUR METER: Keeps track of engine hours for service.
6. CONTROL POWER SWITCH: Keyed switch operates glow plugs, starts and stops engine.
7. GLOW PLUG INDICATOR: Indicates operation of the engine glow plugs. (Mitsubishi engines only.)
1 2
240VAC
BALLAST INDICATOR LIGHTS
I
ON
ON ON
O
MAST LIGHT SWITCHES
NEUTRAL BONDED TO FRAME
3 4
I I I
ON ON
O O O
OFF
GLOW
RUN
PLUGS
START
5
6
7
GLOW PLUG
INDICATOR
00163
17
