Summary of Contents for OSS OSS-KIT-EXP-1500

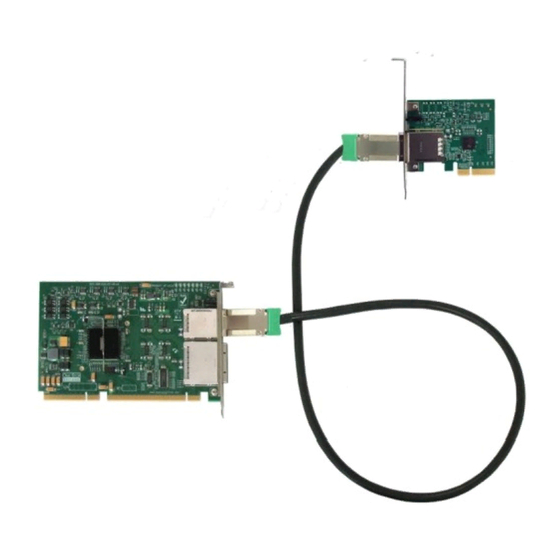

- Page 1 PCIe x4 Gen 2 Host to ELB Kit (1500) Server to SHB Expansion Kit User Manual SKU: OSS-KIT-EXP-1500 www.onestopsystems.com...
-
Page 2: Table Of Contents
Signal Adjustment ....................................9 5.1.2 Pin Assignments ....................................9 5.1.3 PCI Express x4 Connector PIN Assignment ............................11 5.1.4 PCI Express x4 Connector PIN Assignment ............................12 Contacting Technical Support ............................13 Returning Merchandise to One Stop Systems ........................13 OSS-KIT-EXP-1500 | 2... -
Page 3: Overview
A third party I/O card installs in the second slot of the 2-slot backplane. The I/O card then appears to the host system as host of that system. Gen 2 products operate at 5Gb/s per lane, or twice the bandwidth of Gen 1 products. Therefore, PCIe x4 Gen 2 products operate at 20Gb/s when inserted in a x4 or higher slot. . OSS-KIT-EXP-1500 | 3... -
Page 4: Features
PCI-SIG Express Cable Specification Compliant. Includes x4 PCIe lane and side-band signals for: Power ON Reset PCIe clock Cable Present Wake Positive latching mechanism per PCI-SIG specification Support 10 Gbps full-duplex transfer rates. OSS-KIT-EXP-1500 | 4... -
Page 5: Specifications
One Stop Systems 1.2 Specifications 1.2.1 Host Adapter Card PCIe x4 Host Cable Adapter Card (SKU : OSS-PCIe-HIB25-X4-H) Form Factor PCIe x4 add-in card Dimension (H x L) 2.7” x 3.1” (68 x 78mm) Front Panel Connectors One PCIe x4 cable connectors... -
Page 6: Pcie X4 Cable
One Stop Systems 1.2.3 PCIe x4 Cable PCIe x4 Cable (SKU : OSS-PCIe-CBL-x4.1M) 1 meter long cable Cable Length 1m, 2m, 3m, 5m, 7m Circuits loaded Gender Male-to-Male Lock to Mating Part Material-Metal Zinc Alloy Pitch-Mating Interface 0.80mm (0.31) Single Ended... -
Page 7: Component Identification
Cable LED indicators are the same for both Host and Target configurations. 2.1.2 Expansion Link Board The expansion link board installs in the extending or system PCIe goes to all available slots on the expansion backplane and can control multiple configurations of PCIe expansion slots OSS-KIT-EXP-1500 | 7... -
Page 8: Installation Instructions
Release green thumb tab insuring that the prongs are fully engaged in the mating connector. See photo below. Test by pulling back on the connector 4 Operation 1. Plug in expansion system and turn the power supply on. 2. Power up host computer. 3. The expansion system will power up. OSS-KIT-EXP-1500 | 8... -
Page 9: Technical Information
In the following tables, a 0 indicates that a zero Ohm resistor has been installed and a 1 indicates no resistor. In rare cases, mostly where non- OSS equipment is used with the HIB-25x4, these adjustments may need to be changed. The following tables are made available for this purpose. - Page 10 Although support of CWAKE# is optional from the board side connector perspective, an allocated wire is mandated for the cable assembly. Board side pin-outs on both sides of the Link are identical. The cable assembly incorporates a null modem for the PCIe transmit and receive pairs. OSS-KIT-EXP-1500 | 10...
-
Page 11: Pci Express X4 Connector Pin Assignment
PERn1 PETn1 PERp2 Differential Pair PETp2 PERn2 PETn2 PERp3 Differential Pair PETp3 PERn3 PETn3 PWR_RTN PWR_RTN PWR_RTN PWR_RTN CWAKE# Hook-up Wire CWAKE# CPERST# Hook-up Wire CPERST# Back shell Chassis Ground Overall Cable Braid Chassis Ground Back shell OSS-KIT-EXP-1500 | 11... -
Page 12: Pci Express X4 Connector Pin Assignment
PoWeR: Provides local power for in-cable redriver circuits. Only needed on long cables. Power does not go across the cable.) PWR_RTN PoWeR ReTurN: Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset 5.1.4 PCI Express x4 Connector PIN Assignment CFG(0:2) BP PORT CFG OSS-KIT-EXP-1500 | 12... -
Page 13: Contacting Technical Support
Returning Merchandise to One Stop Systems If factory service is required, you must contact OSS Service Representative to obtain a Return Merchandise Authorization (RMA) number. Put this number and your return address on the shipping label when you return the item(s) for service. One Stop Systems will return any product that is not accompanied by an RMA number. - Page 14 One Stop Systems OSS-KIT-EXP-1500 | 14...
