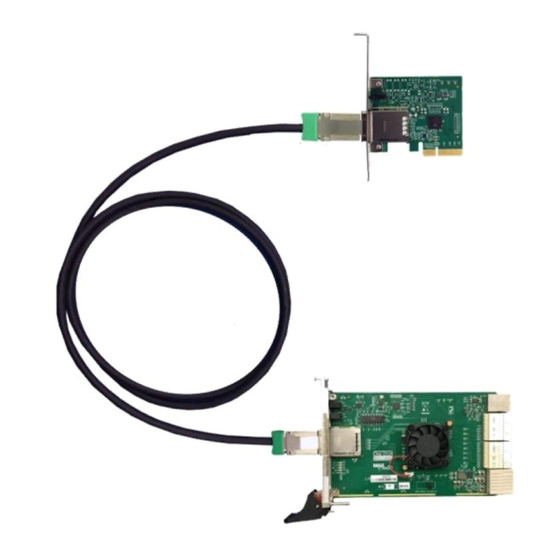

- Page 1 OSS-KIT-EXP-6002 Host Server to Expansion System Kit User Manual SKU: OSS-KIT-EXP-6002 www.onestopsystems.com...
-
Page 2: Table Of Contents
4.5 Pin-out for the PCIe x4 Cable ..................................11 4.6 Signal Descriptions ...................................... 12 4.7 Connector Pin-outs for the PCIe x4 Cable Connector ..........................12 4.8 PCI Express x4 Connector PIN Assignment ..............................13 Contacting Technical Support ............................14 Returning Merchandise to One Stop Systems ........................14 OSS-KIT-EXP-6002| 2... -
Page 3: Overview
PCI express expansion slots. The host adapter installs into a PCIe x4, x8 or x16 slot on the host motherboard. It then cables to the expansion link board and installs in the SHB or system slot of a CPCIe backplane. OSS-KIT-EXP-6002| 3... -
Page 4: Features
Available in 1m, 2m, 3m, 5m, 7m lengths. PCI-SIG Express Cable Specification Compliant. Includes x4 PCIe lane and side-band signals for: Power ON Reset PCIe clock Cable Present Wake Positive latching mechanism per PCI-SIG specification Support 10 Gbps full-duplex transfer rates. OSS-KIT-EXP-6002| 4... -
Page 5: Specifications
One Stop Systems 1.3 Specifications 1.3.1 Host Adapter PCIe x4 Host Cable Adapter Card (SKU : OSS-PCIe-HIB25-X4-H) Form Factor PCIe x4 add-in card Dimension (H x L) 2.7” x 3.1” (68 x 78mm) Front Panel Connectors One PCIe x4 cable connectors... -
Page 6: Pcie X4 Cable
One Stop Systems 1.3.3 PCIe x4 Cable PCIe x4 Cable (SKU : OSS-PCIe-CBL-x4.1M) 1 meter long cable Cable Length 1m, 2m, 3m, 5m, 7m Circuits loaded Gender Male-to-Male Lock to Mating Part Material-Metal Zinc Alloy Pitch-Mating Interface 0.80mm (0.31) Single Ended... -
Page 7: Component Identification
2.2 Expansion Link Board The Expansion Link Board (ELB) OSS-CPCIe3-3U/6U-ELB-x4 is a downstream link board that installs into a CPCIe chassis. The ELB fits into the system slot of a CPCIe backplane. The ELB is the downstream link board and the primary fan-out switch to support multiple configurations of CPCI or CPCIe expansion slots. -
Page 8: Installation Instructions
To remove the cable, press or pull the green tab and slowly pull the cable out. 3.4 Operation Plug in expansion system and turn the power supply on. Power up host computer. The expansion system will power up. OSS-KIT-EXP-6002| 8... -
Page 9: Technical Information
In the following tables, a 0 indicates that a zero Ohm resistor has been installed and a 1 indicates no resistor. In rare cases, mostly where non- OSS equipment is used with the HIB-25x4, these adjustments may need to be changed. The following tables are made available for this purpose. -
Page 10: Pin-Out For The Pcie X4 Card Edge Connector On The "Host Cable Adapter
Optional signals that are not implemented are left as no connects on the board side connector. Reserved signals are no connects on the board side connector. Although support of CWAKE# is optional from the board side connector perspective, an allocated wire is mandated for the cable assembly. OSS-KIT-EXP-6002| 10... -
Page 11: Pci Express X4 Connector Pin Assignment
PETp1 PERn1 PETn1 PERp2 Differential Pair PETp2 PERn2 PETn2 PERp3 Differential Pair PETp3 PERn3 PETn3 PWR_RTN PWR_RTN PWR_RTN PWR_RTN CWAKE# Hook-up Wire CWAKE# CPERST# Hook-up Wire CPERST# Back shell Chassis Ground Overall Cable Braid Chassis Ground Back shell OSS-KIT-EXP-6002| 11... -
Page 12: Signal Descriptions
Ground reference PERp1 Differential PCI Express Receiver Lane 1 PERn1 Ground reference PERp2 Differential PCI Express Receiver Lane 2 PERn2 Ground reference PERp3 Differential PCI Express Receiver Lane 3 PERn3 Ground reference +3.3V Cable Power PWR_RTN Cable Power Return OSS-KIT-EXP-6002| 12... -
Page 13: Pci Express X4 Connector Pin Assignment
One Stop Systems PWR_RTN CWAKE# Power management signal for wakeup events (optional) CPERST# Cable Reset# 4.8 PCI Express x4 Connector PIN Assignment CFG(0:2) BP PORT CFG OSS-KIT-EXP-6002| 13... -
Page 14: Contacting Technical Support
Returning Merchandise to One Stop Systems If factory service is required, you must contact OSS Service Representative to obtain a Return Merchandise Authorization (RMA) number. Put this number and your return address on the shipping label when you return the item(s) for service. One Stop Systems will return any product that is not accompanied by an RMA number. - Page 15 One Stop Systems OSS-KIT-EXP-6002| 15...
