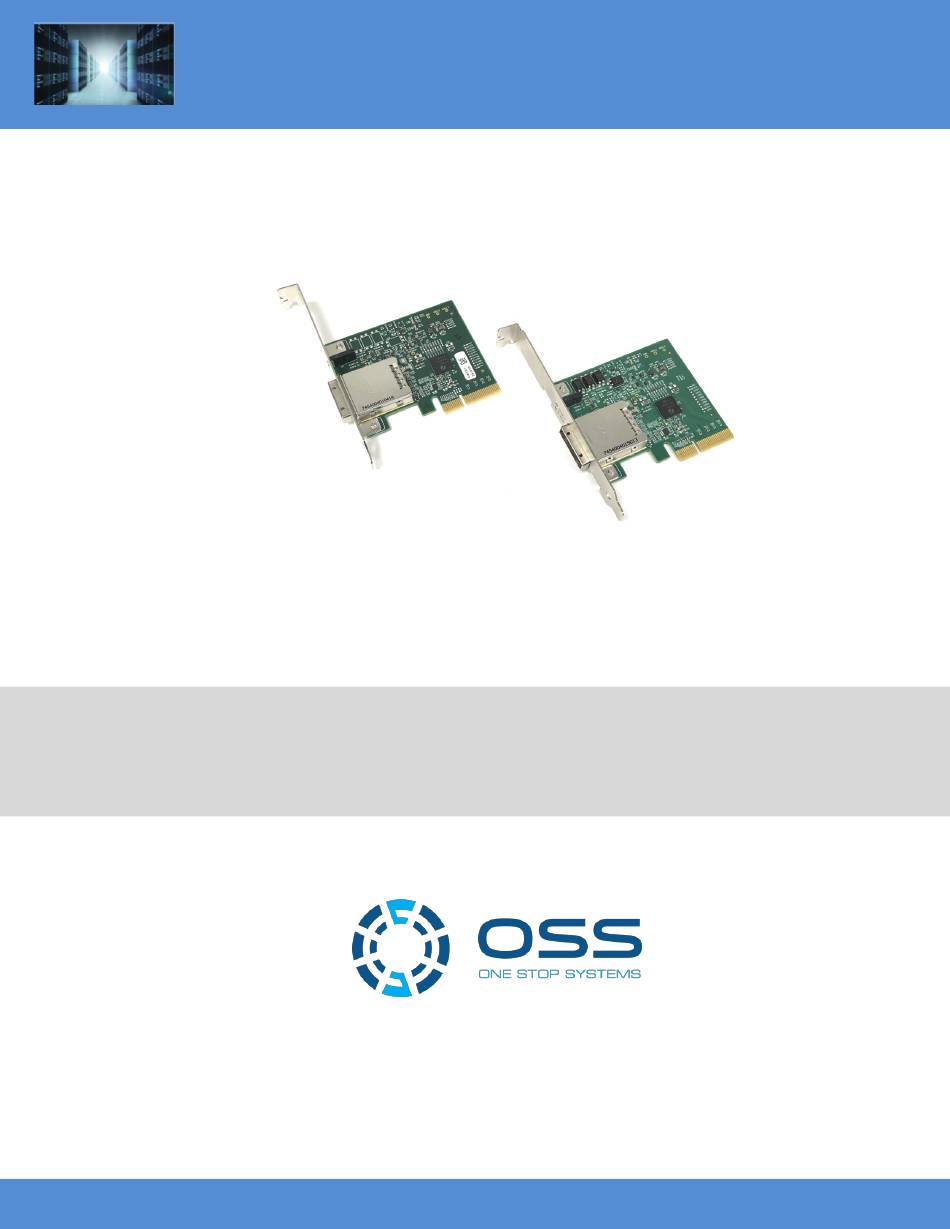

- Page 1 PCIe x4 Gen2 Host Cable Adapter Model: OSS-PCIe-HIB25-x4 Installation Guide SKU: OSS-PCIe-HIB25-X4 www.onestopsystems.com...
-
Page 2: Table Of Contents
Install HIB Host card Install HIB Target card Install PCIe card Install link cable Connect ATX Power Supply Power ON the system Verify Hardware LED Definition Software Installation How to Get More Help 6.1 Contacting Technical Support 6.2 Returning Merchandise OSS-PCIe-HIB25x4 | 2... - Page 3 One Stop Systems 6.3 Online Support Resources OSS-PCIe-HIB25x4 | 3...
-
Page 4: Preface
Disclaimer: We have attempted to identify most situations that may pose a danger, warning, or caution condition in this manual. However, the company does not claim to have covered all situations that might require the use of a Caution, Warning, or Danger indicator. OSS-PCIe-HIB25x4 | 4... -
Page 5: Safety Instructions
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this manual. Follow installation instructions closely. OSS-PCIe-HIB25x4 | 5... - Page 6 Handle all sensitive components at an ESD workstation. If possible, use anti-static floor pads and workbench pads. Handle components and boards with care. Do not touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. OSS-PCIe-HIB25x4 | 6...
-
Page 7: Introduction

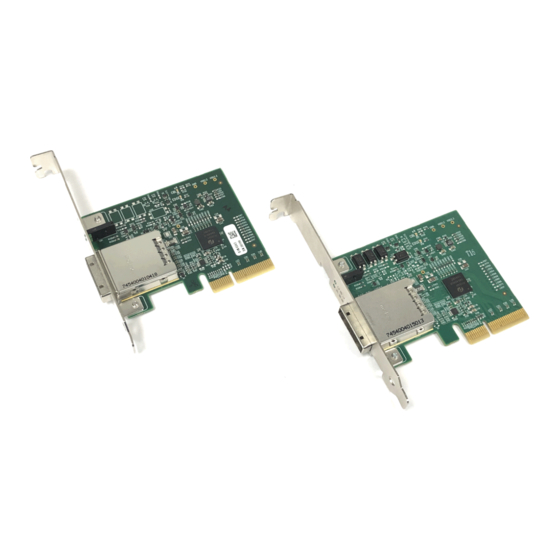

The PCIe x4 Gen 2 cable adapter is a PCIe half-height add-in card with a PCIe x4 cable connector on the slot cover. The host cable adapter installs in the PCIe slot of a host server and the target cable adapter installs in the Target slot / Upstream slot of the OSS backplane. -
Page 8: Overview
Power is provided by the PCI-e card slot. Power required by internal components of OSS-PCIe-HIB-25-x4 is estimated to be 4 watts when both ports are fully linked and operating in Gen2 mode. Cable power is to be provided per PCIe cable specification. When an active cable (powered transceiver) is used, additional power is required from the PCI-e card slot. -
Page 9: Re-Driver
One x4 PCIe bus routed to PCIe Card Edge One x4 PCIe bus routed to the PCIe Cable Connector PCIe Clock route from Card Edge to Cable Connector via a Clock Buffer. Block Diagram & Signal Direction OSS-PCIe-HIB25x4 | 9... -
Page 10: Dimensions
One Stop Systems Dimensions OSS-PCIe-HIB25x4 | 10... -
Page 11: Hib Card Operating Mode
Mode 1: Target Mode: In this mode, the card is populated with three “Optocouplers”. The card is set to operate in Target mode and it is plugged into an OSS expansion backplane “Upstream slot”. Mode 2: Host Mode. In this mode, the card is not populated with “Optocouplers”. The card is set to operate in Host mode and it is plugged into computer’s motherboard PCIe slot. -
Page 12: Pci Express X4 Card Edge Connector Pin Outs
Ground Ground PERp2 Receiver differential pair, Lane 2 Ground PERn2 PETp3 Transmitter differential pair, Lane 3 Ground PETn3 Ground Ground PERp3 Receiver differential pair, Lane 3 RSVD Reserved PERn3 PRSNT2# Hot-Plug presence detect Ground Ground RSVD Reserved OSS-PCIe-HIB25x4 | 12... - Page 13 Although support of CWAKE# is optional from the board side connector perspective, an allocated wire is mandated for the cable assembly. Board side pin-out on both sides of the Link is identical. The cable assembly incorporates a null modem for the PCIe transmit and receive pairs. OSS-PCIe-HIB25x4 | 13...
-
Page 14: X4 Cable Wire Connectios / Pin Outs
PETn1 PERp2 Differential Pair PETp2 PERn2 PETn2 PERp3 Differential Pair PETp3 PERn3 PETn3 PWR_RTN PWR_RTN PWR_RTN PWR_RTN CWAKE# Hook-up Wire CWAKE# CPERST# Hook-up Wire CPERST# Backshell Chassis Ground Overall Cable Braid Chassis Ground Backshell *NC: Not Connected OSS-PCIe-HIB25x4 | 14... -
Page 15: X4 Cable Signal Descriptions
Power: Provides local power for in-cable redriver circuits. Only needed on long cables (Power does not go across the cable.) PWR_RTN Provides local power return path for PWR pins. CWAKE# Cable WAKE CPERST# Cable PCI Express Reset OSS-PCIe-HIB25x4 | 15... -
Page 16: Hardware Requirements
NOTE: The HIB25-x4 card works in pair (one as host card and other as target card) One x4 iPass cable OSS Expansion chassis with Gen2 backplane, or OSS expansion backplane and power supply. 2.1.1 HIB25-x4 card (Host and Target) 2.1.2 PCIe Slot &... -
Page 17: Gen3 Expansion Chassis / Backplane
2.1.5 ATX Power Supply When using an OSS backplane with the HIB25-x4 card you need to connect a power supply unit to provide power. A standard ATX power supply will work with the boards. Software Requirement Computer running Windows 7, 8, 10 and or Server... -
Page 18: Installation Procedures
Power down the host computer first before installing the host card. Do not install the host card while the computer is ON. Install the HIB25-x4 host card into the available PCIe slot in the computer’s motherboard. Use a x4, x8 or x16 Gen2 PCIe slot. Make sure to secure the card with a screw. OSS-PCIe-HIB25x4 | 18... -
Page 19: Install Hib Target Card
Do not plug in the target card while expansion unit or the expansion backplane is ON as this can damage the board. Turn OFF the unit first before installing the card. The HIB Target card will only work in the OSS backplane designated “Upstream” slot. It will not function in the downstream slot or the end-point slot of the backplane. -
Page 20: Install Pcie Card
One Stop Systems Install PCIe card Plug-in your 3rd party PCIe card in the expansion backplane. Use the downstream slot of the OSS backplane. See photos below. Install link cable Connect the PCIe iPass x4 cable between the host and target cards. Plug in the cable to the host card. -
Page 21: Connect Atx Power Supply
If you are using an expansion chassis, the power supply is already part of the unit. You can skip this step. If you are using an expansion backplane, plug-in the ATX power supply cable into the 24pin ATX power connector on the OSS board Connect power to the PSU and turn the switch to ON position. -
Page 22: Verify Hardware
*Signal detect does not mean it has a link, but rather it identifies there is a signal on the card edge. If the link does not appear to be stable, it could mean that there is a compliance pattern being generated by the PCIe device interfacing with this card. OSS-PCIe-HIB25x4 | 22... -
Page 23: Software Installation
One Stop Systems Software Installation No software or driver is required for the Host Adapter card. OSS-PCIe-HIB25x4 | 23... -
Page 24: How To Get More Help
If you need technical support, product assistance or have a technical inquiry we encourage you to submit it on-line using our Technical Support Form. If you need to send a unit for repair or diagnostic evaluation, fill out our RMA (Return Material Authorization) online request form. https://www.onestopsystems.com/support OSS-PCIe-HIB25x4 | 24... - Page 25 One Stop Systems OSS-PCIe-HIB25x4 | 25...
